Tractor · 2003Unverified

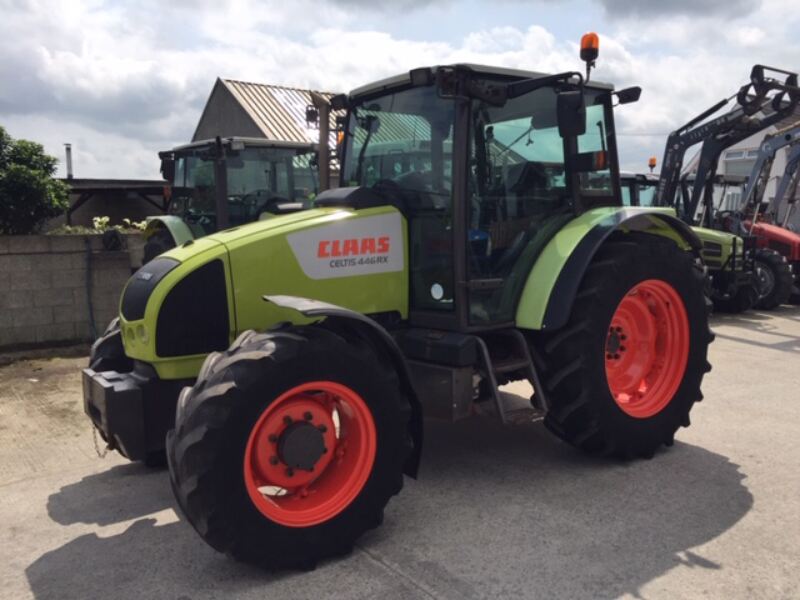

Claas 446 Celtis
Claas 446 Celtis — Model year 2003-20042004-2008 · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
3790 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standardReference
Engine
Deere Power Systems (DPS) 4.5L 4-cyl dieselReference
Fuel tank145.0 LReference
Engine68.6 kWReference
Deere Power Systems (DPS) 4045 DRT71Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
Power68.6 kWReference
Rated RPM2000Reference
Torque352.0 NmReference
Torque RPM1200Reference
Transmission
10-speedReference
20-speedReference
Gears10 forward and reverseReference
Gears20 forward and reverseReference
PTO & Hydraulics
Total flow68.9 lpmReference
Rear lift5801 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase248 cmReference
Weight3790 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length395 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
