Tractor · 2003Unverified

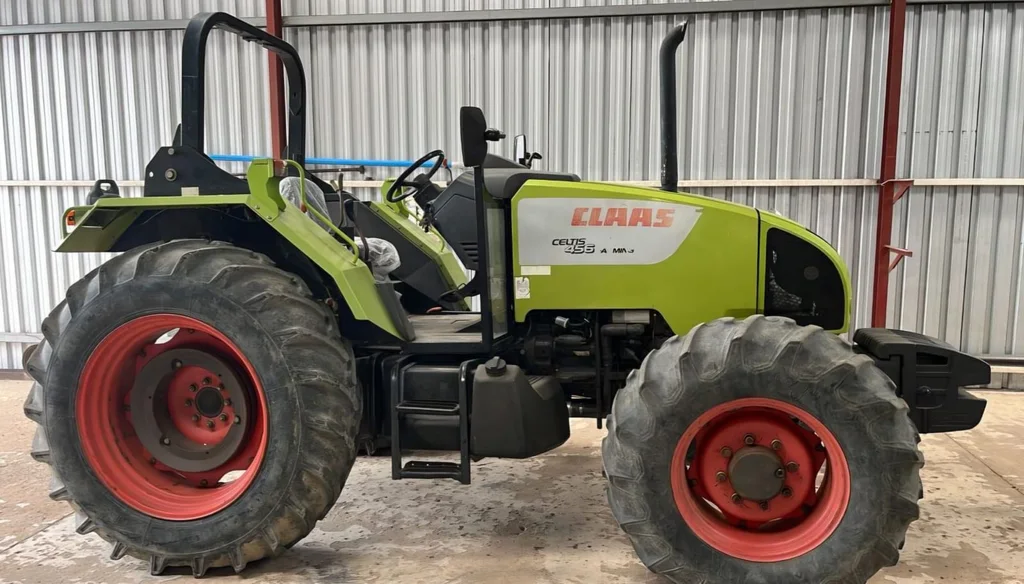

Claas 456 Celtis
Claas 456 Celtis — Model year 2003-20042004-2008 · 102 hp. Reference specifications; pending source verification.
The Claas 456 Celtis is a tractor model that produces 102 hp, a mid-range figure for its class. It was manufactured from 2003 to 2008. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. It has an operating weight of 3830 kg and is suited for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
3830 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
102 hp
Recorded weight
3830 kg
Transmissions
10-speed
Production years
2003-2008
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerClaasReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standardReference
Engine
Deere Power Systems (DPS) 4.5L 4-cyl dieselReference
Fuel tank145.0 LReference
Engine76.1 kWReference
Deere Power Systems (DPS) 4045 DRT72Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
Power76.1 kWReference
Rated RPM2000Reference
Torque376.0 NmReference
Torque RPM1200Reference
Transmission
10-speedReference
20-speedReference
Gears10 forward and reverseReference
Gears20 forward and reverseReference
PTO & Hydraulics
Total flow68.9 lpmReference
Rear lift7601 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase248 cmReference
Weight3830 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Ag front13.6R28Reference
Ag rear16.9R38Reference
Length395 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
