Tractor · 2005Unverified

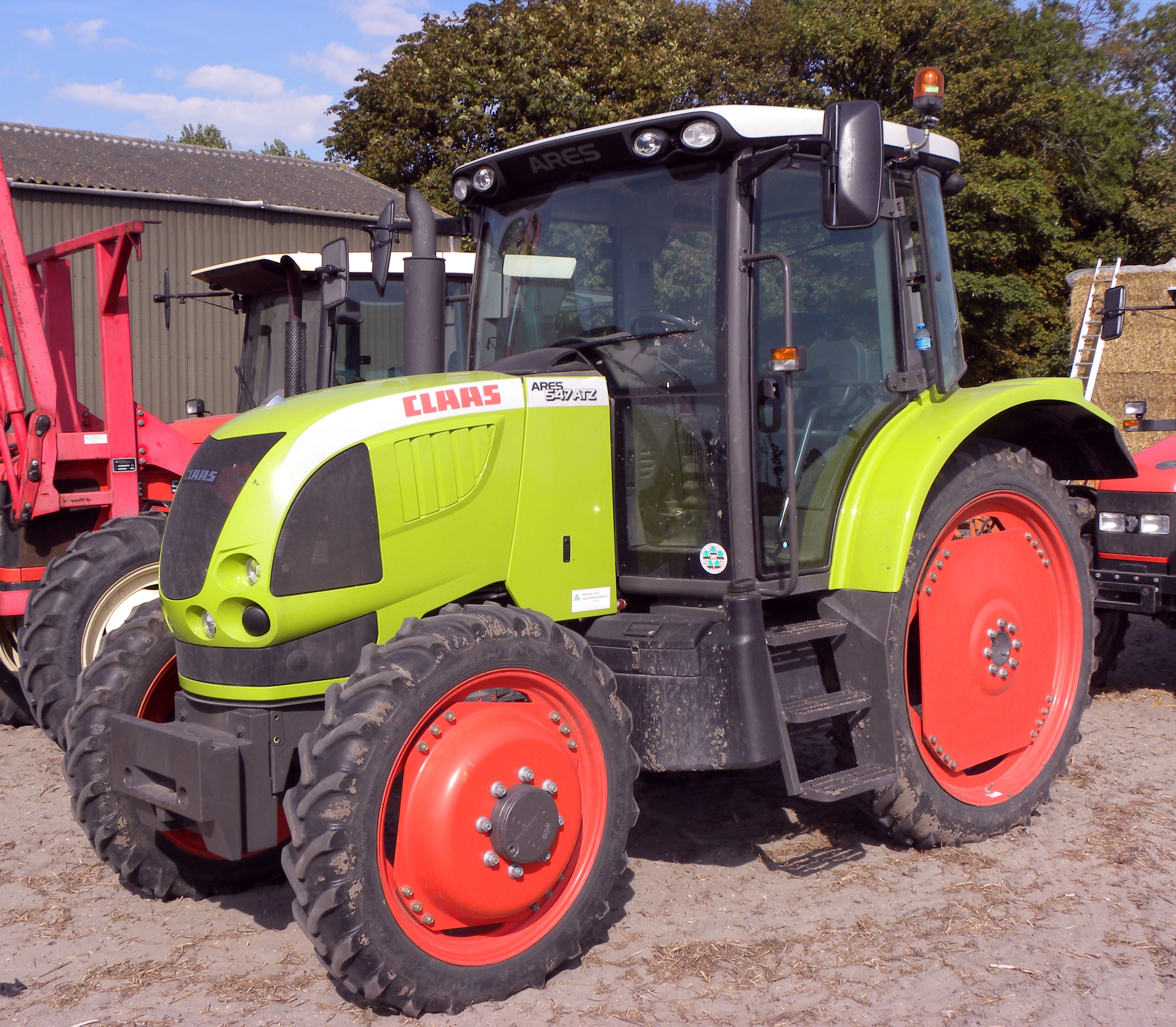

Claas Ares 547
Claas Ares 547 — Ares 500 Series · 89 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Class ATX cab standard with air-conditioning. ATZ cab optional with suspension.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine (net)66.2 kWReference
John Deere DPS 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)66.2 kWReference
Maximum Power (net)70.6 kWReference
Rated RPM2200Reference
Torque367.5 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shuttleReference
Typepower shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
TypePFCReference
Pressure200.0 barReference
Pump flow60.0 lpmReference
Pump flow99.9 lpmReference
Pump flow110.1 lpmReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase256 cmReference
Length471 cmReference
Height290 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
