Tractor · 2005Unverified

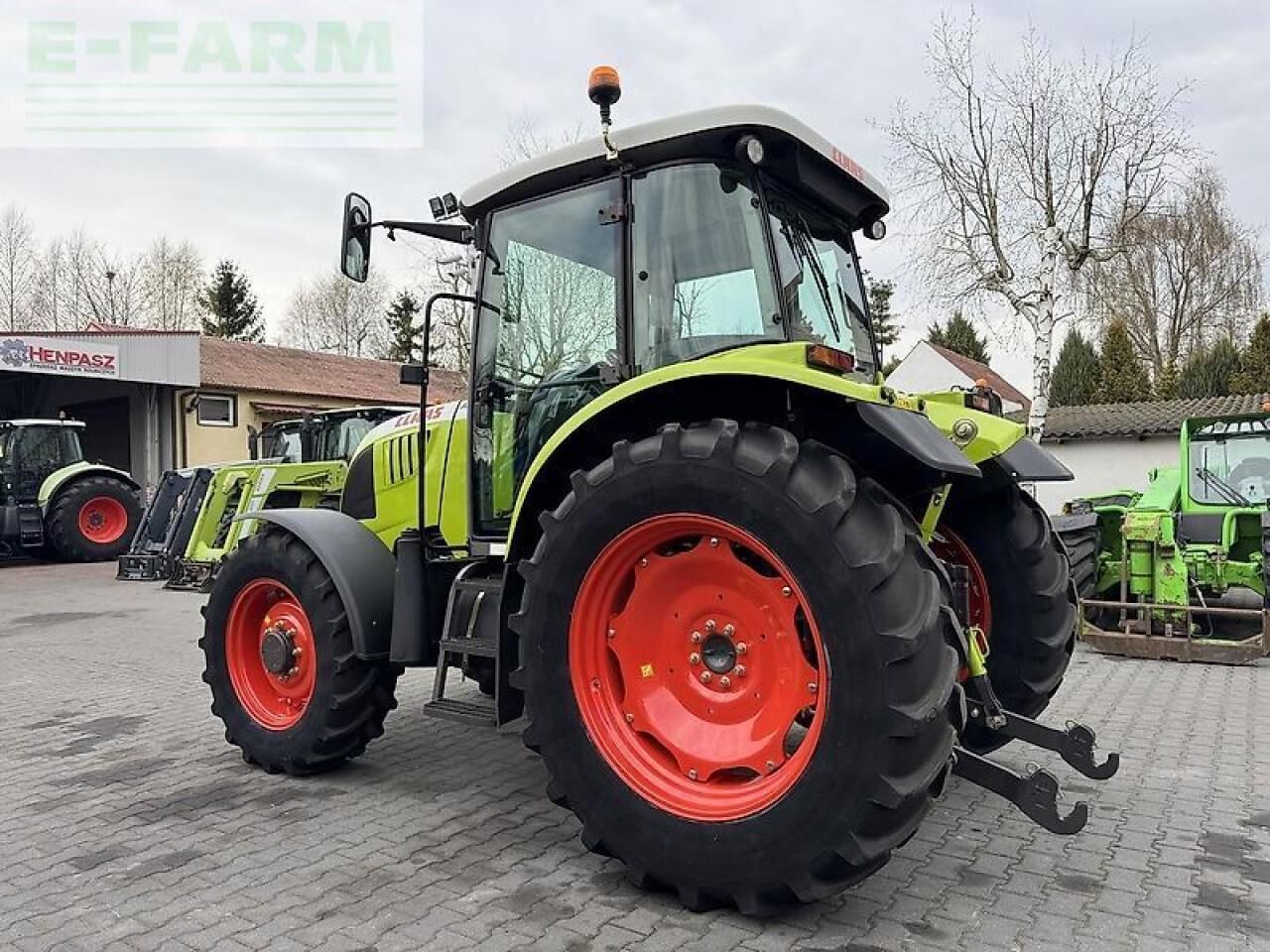

Claas Ares 557

Name: Claas Ares 557
Brand: Claas

Claas Ares 557 — Ares 500 Series · 99 hp. Reference specifications; pending source verification.

The Claas Ares 557 is a tractor with a rated power of 99 hp, a mid-range figure for its class. It was manufactured from 2005 to 2009. The Ares 557 features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a 24-speed gearbox. Its operating weight ranges from 10406 to 10626 pounds, making it suitable for operations of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Weight

10406 to 10626 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

99 hp

Transmissions

24-speed power shuttle

Production years

2005-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Class ATX cab standard with air-conditioning. ATZ cab optional with suspension.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank180.2 LReference

Engine (net)73.6 kWReference

John Deere DPS 4045Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Rated Power (net)73.6 kWReference

Maximum Power (net)76.5 kWReference

Rated RPM2200Reference

Torque419.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed power shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

TypePFCReference

Pressure200.0 barReference

Pump flow60.0 lpmReference

Pump flow99.9 lpmReference

Pump flow110.1 lpmReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase256 cmReference

Weight10406 to 10626 poundsReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference

Length471 cmReference

Height290 cmReference

ATX4720 kgReference

ATZ4819 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Max capacity8000 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
