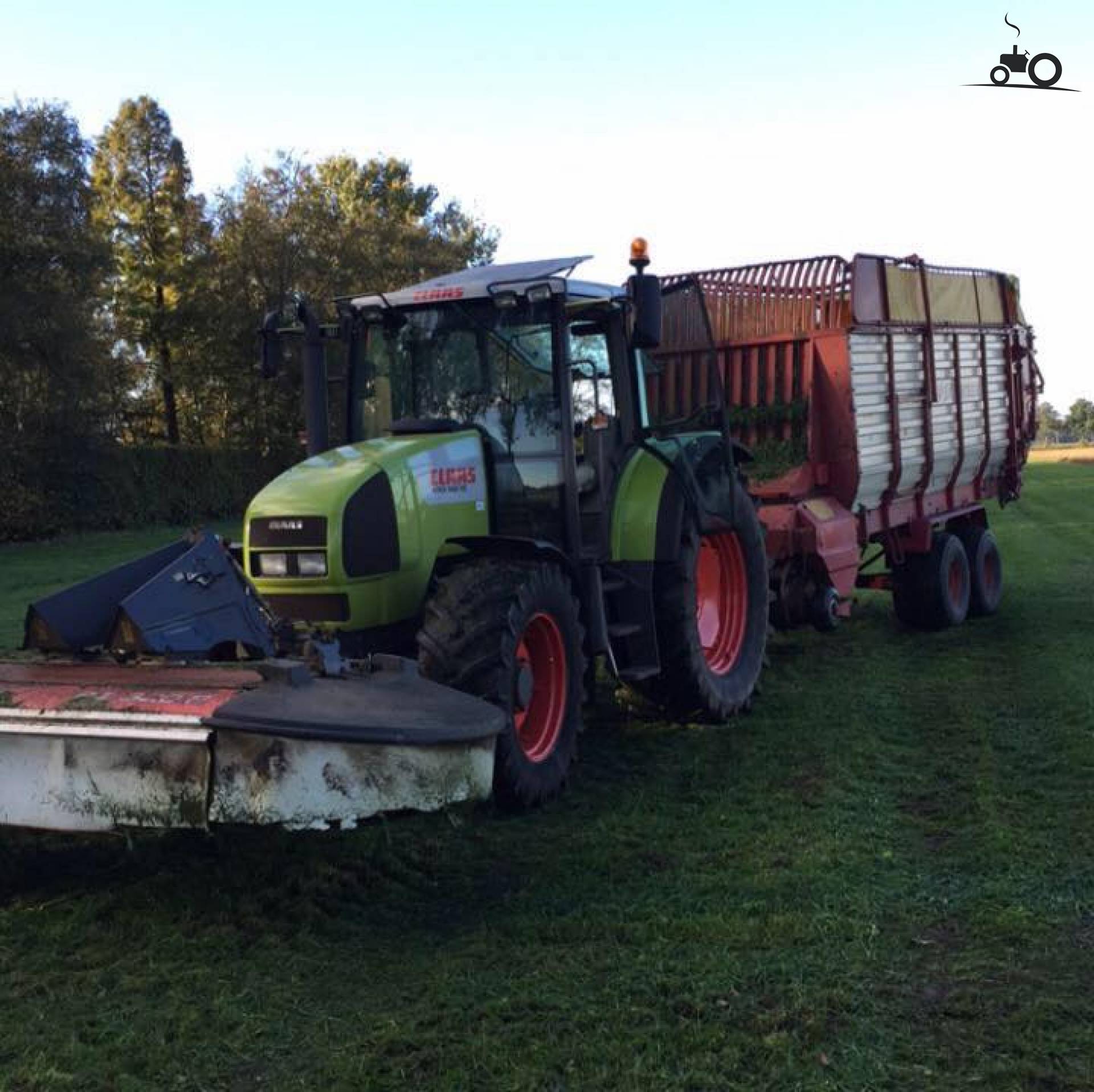

The Claas Ares 566 is a tractor model with a rated power output of 114 hp, a mid-range figure within its class. It was produced between 2003 and 2005. The Ares 566 features a 4-cylinder turbocharged engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 5371 kg, suitable for operations spanning 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
114 hp
Weight
5371 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
114 hp
Recorded weight
5371 kg
Transmissions
32-speed
Production years
2003-2005
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standard with A/CReference
Engine
4.5L 4-cylReference
Fuel tank169.9 LReference
Engine85.0 kWReference
DPS 4045 TRTReference
turboReference
4-cylinderReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
Power85.0 kWReference
Rated RPM2000Reference
Torque430.1 NmReference
Torque RPM1650Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow95.0 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase248 cmReference
Weight5371 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Ag front13.6R28Reference
Ag rear16.9R38Reference
Length400 cmReference
Height283 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
