Tractor · 2005Unverified

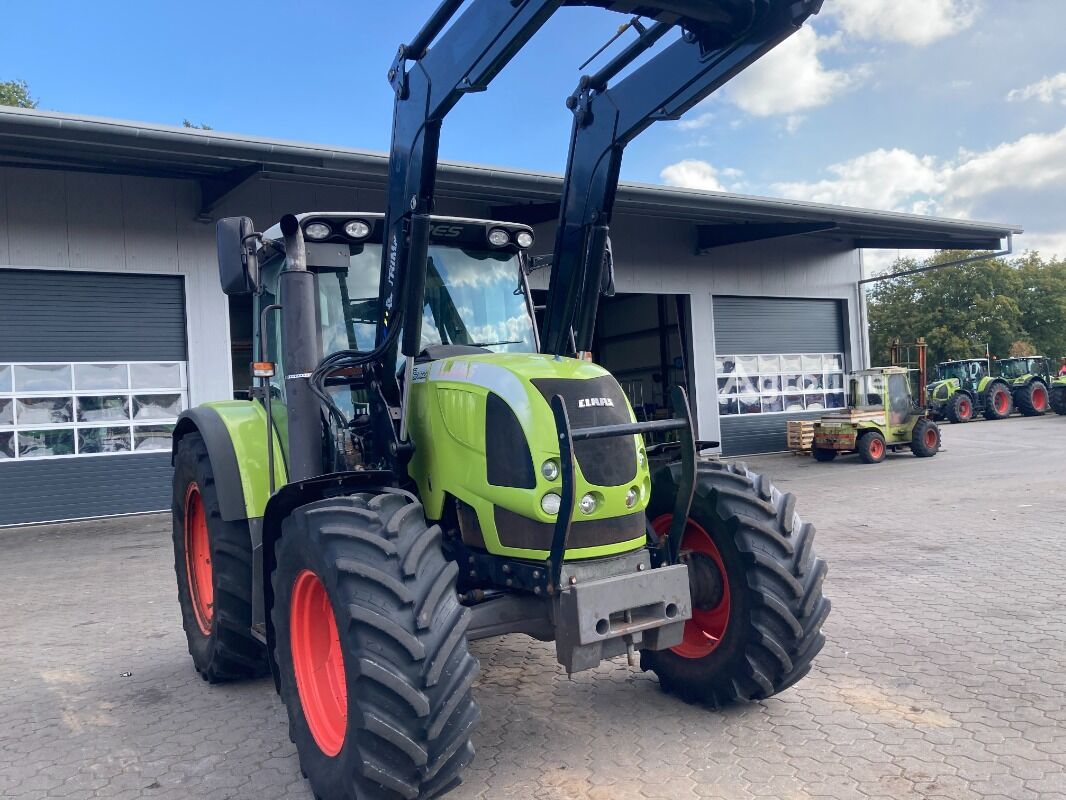

Claas Ares 567
Claas Ares 567 — Ares 500 Series · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
10406 to 10626 pounds
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Class ATX cab standard with air-conditioning. ATZ cab optional with suspension.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine (net)80.9 kWReference
John Deere DPS 4045Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)80.9 kWReference
Maximum Power (net)83.8 kWReference
Rated RPM2200Reference
Torque434.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shuttleReference
Typepower shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
TypePFCReference
Pressure200.0 barReference
Pump flow60.0 lpmReference
Pump flow99.9 lpmReference
Pump flow110.1 lpmReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase256 cmReference
Weight10406 to 10626 poundsReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length471 cmReference
Height290 cmReference
ATX4720 kgReference
ATZ4819 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity8000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
