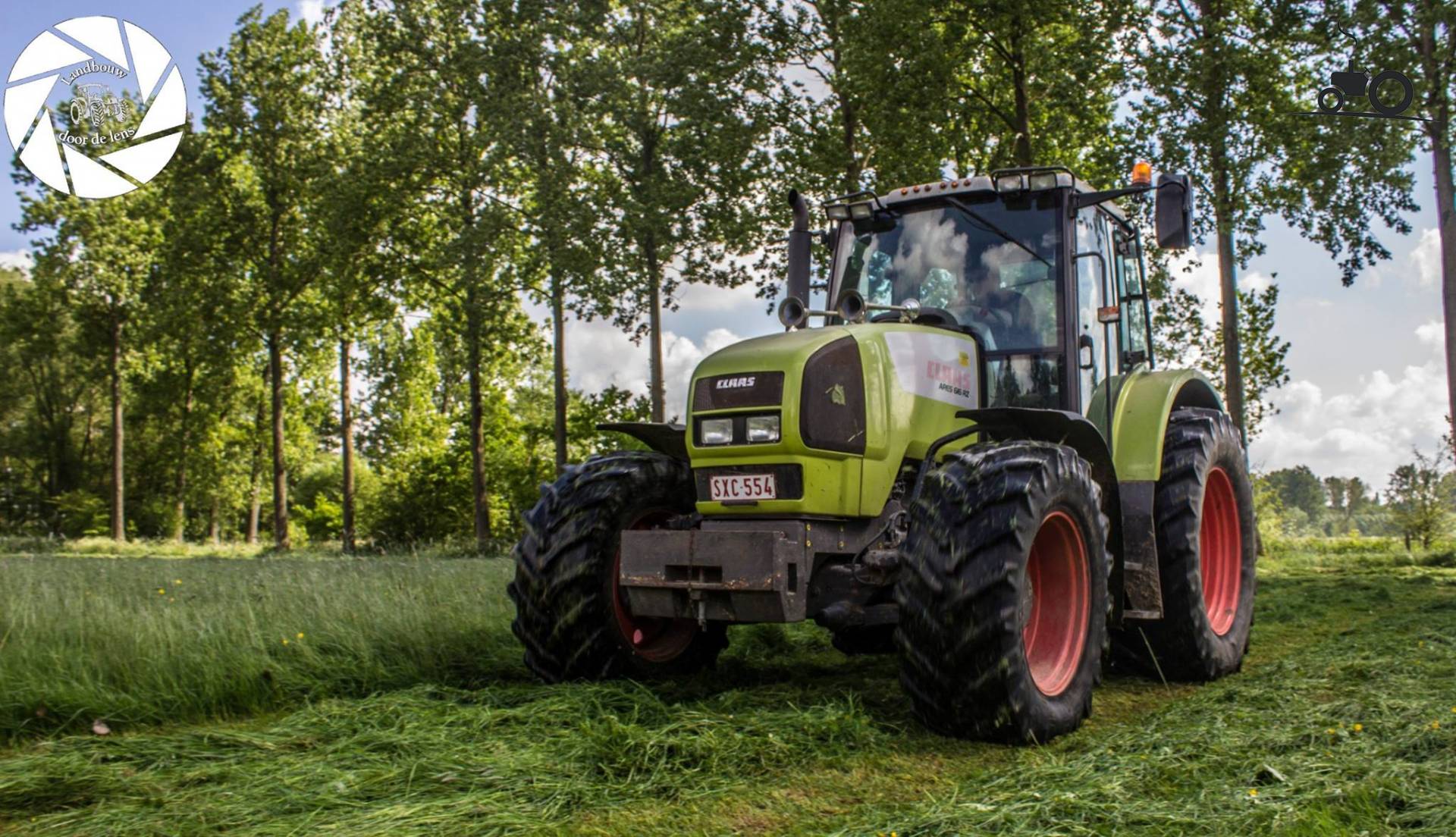

The Claas Ares 616 is a tractor with an engine rating of approximately 115 hp, a mid-range figure for its class. This model was in production from 2003 to 2005. It features a 6-cylinder turbocharged engine paired with four-wheel drive and a hydrostatic transmission, and has an operating weight of 5611 kg. It is suitable for operations of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
5611 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
115 hp
Recorded weight
5611 kg
Transmissions
32-speed
Production years
2003-2005
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standard with A/CReference
Engine
6.8L 6-cylReference
Fuel tank250.2 LReference
Engine85.8 kWReference
DPS 6068 DRTReference
turboReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power85.8 kWReference
Rated RPM2000Reference
Torque457.1 NmReference
Torque RPM1500Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow95.0 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase275 cmReference
Weight5611 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length425 cmReference
Height291 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
