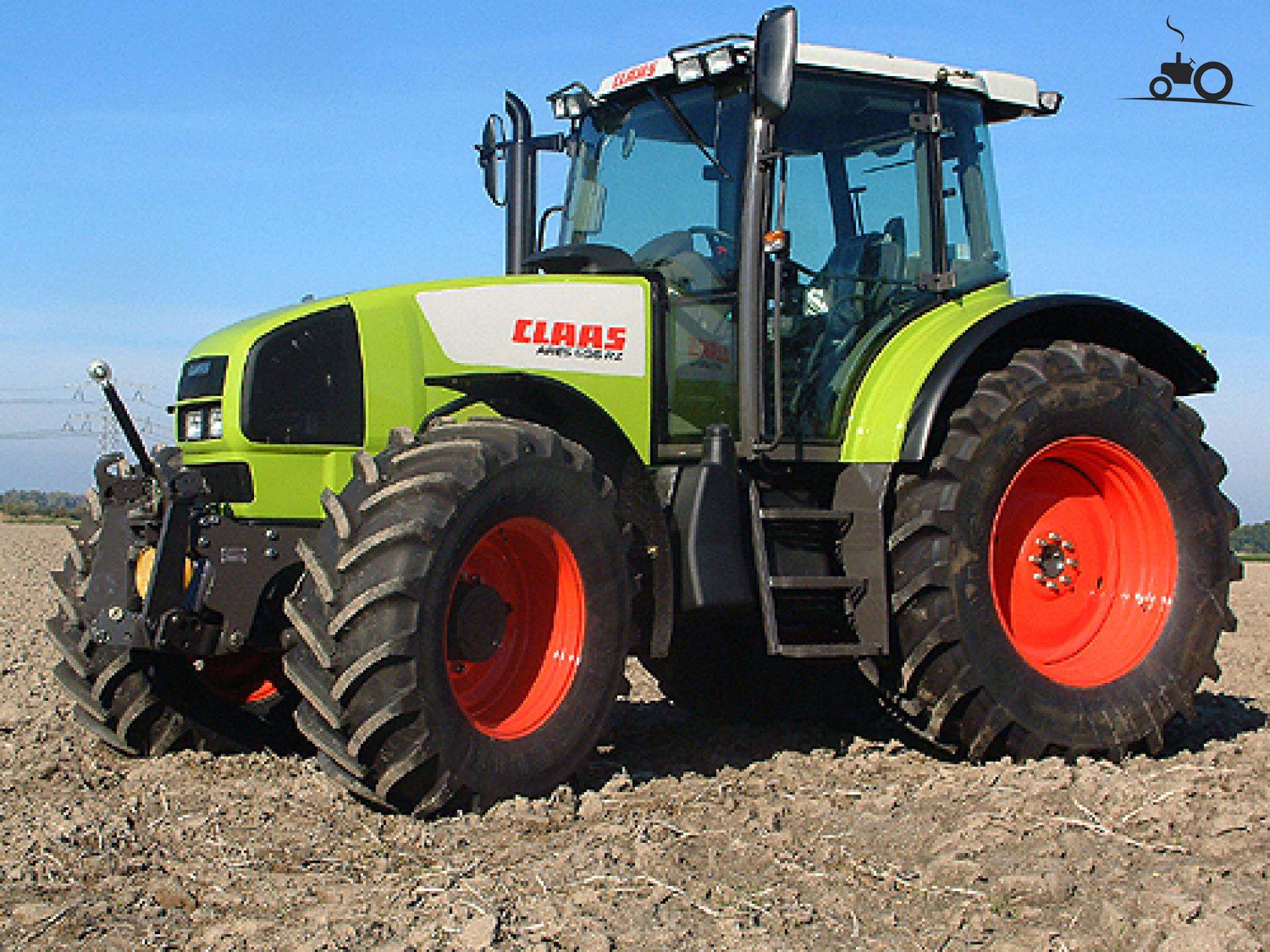

The Claas Ares 656 is a tractor with a rated output of 132 hp, categorising it among high-powered machines in its class. Production of the Claas Ares 656 spanned from 2003 to 2005. This tractor features a 6-cylinder turbocharged engine, coupled with a hydrostatic transmission and four-wheel drive. The listed weight of the Claas Ares 656 is 6101 kg, suitable for applications covering approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
6101 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
132 hp
Recorded weight
6101 kg
Transmissions
32-speed
Production years
2003-2005
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standard with A/CReference
Engine
6.8L 6-cylReference
Fuel tank250.2 LReference
Engine98.4 kWReference
DPS 6068 TRTReference
turboReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power98.4 kWReference
Rated RPM2000Reference
Torque528.2 NmReference
Torque RPM1400Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow95.0 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase275 cmReference
Weight6101 kgReference
Front tire480/70R28Reference
Rear tire580/70R38Reference
Ag front480/70R28Reference
Ag rear580/70R38Reference
Length472 cmReference
Height291 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
