Tractor · 2005Unverified

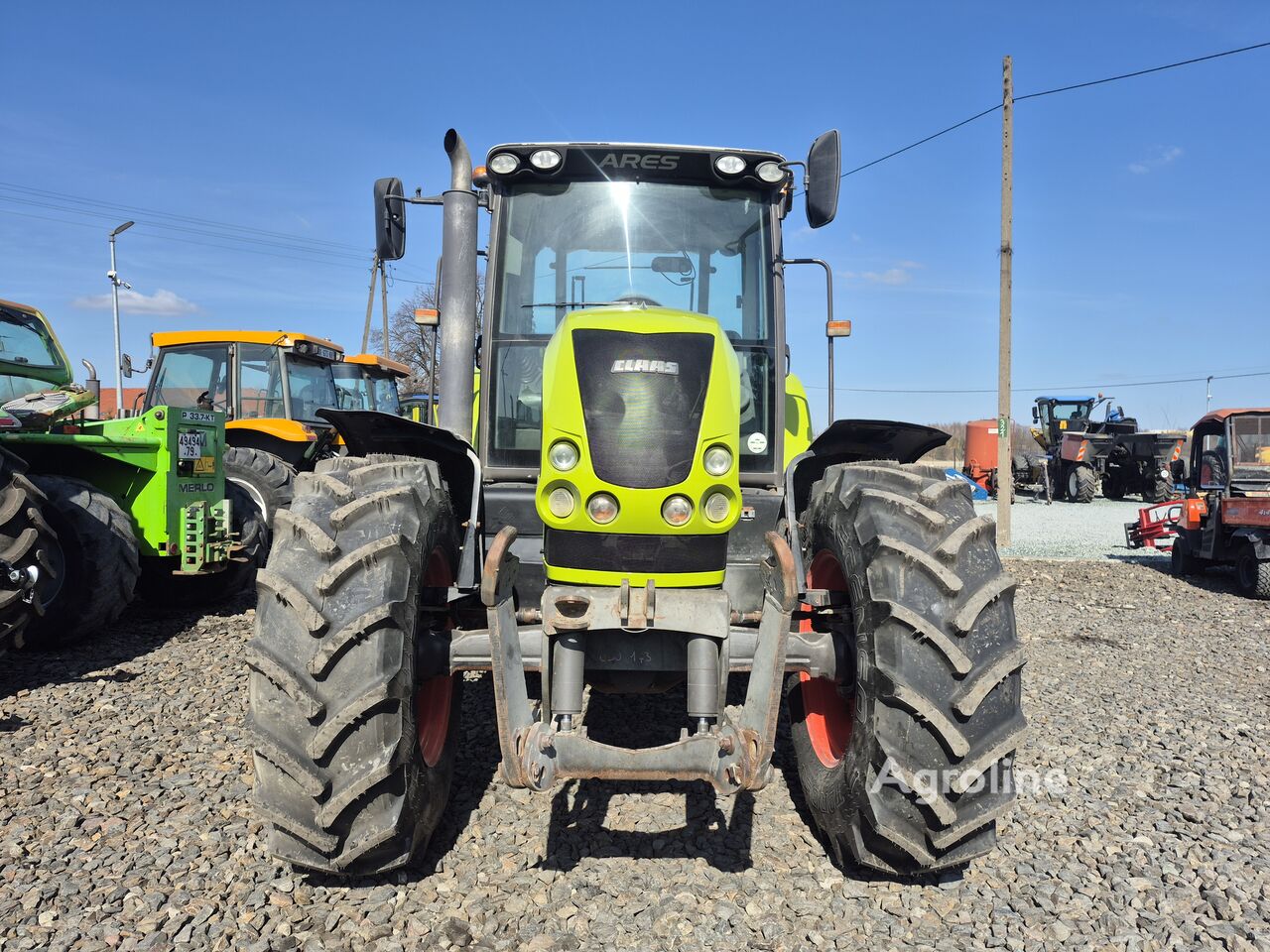

Claas Ares 657
Claas Ares 657 — Ares 600 Series · 123 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
123 hp
Weight
5029 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Claas ATZ cab with air-conditioning and suspension.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine (net)91.9 kWReference
John Deere DPS 6068Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)91.9 kWReference
Maximum Power (net)97.1 kWReference
Rated RPM2200Reference
Torque530.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shuttleReference
Typepower shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
TypePFCReference
Pressure200.0 barReference
Pump flow60.0 lpmReference
Pump flow99.9 lpmReference
Pump flow110.1 lpmReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase281 cmReference
Weight5029 kgReference
Front tire14.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 14.9R28. Rear: 20.8R38Reference
Length516 cmReference
Height300 cmReference
Max weight8799 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
