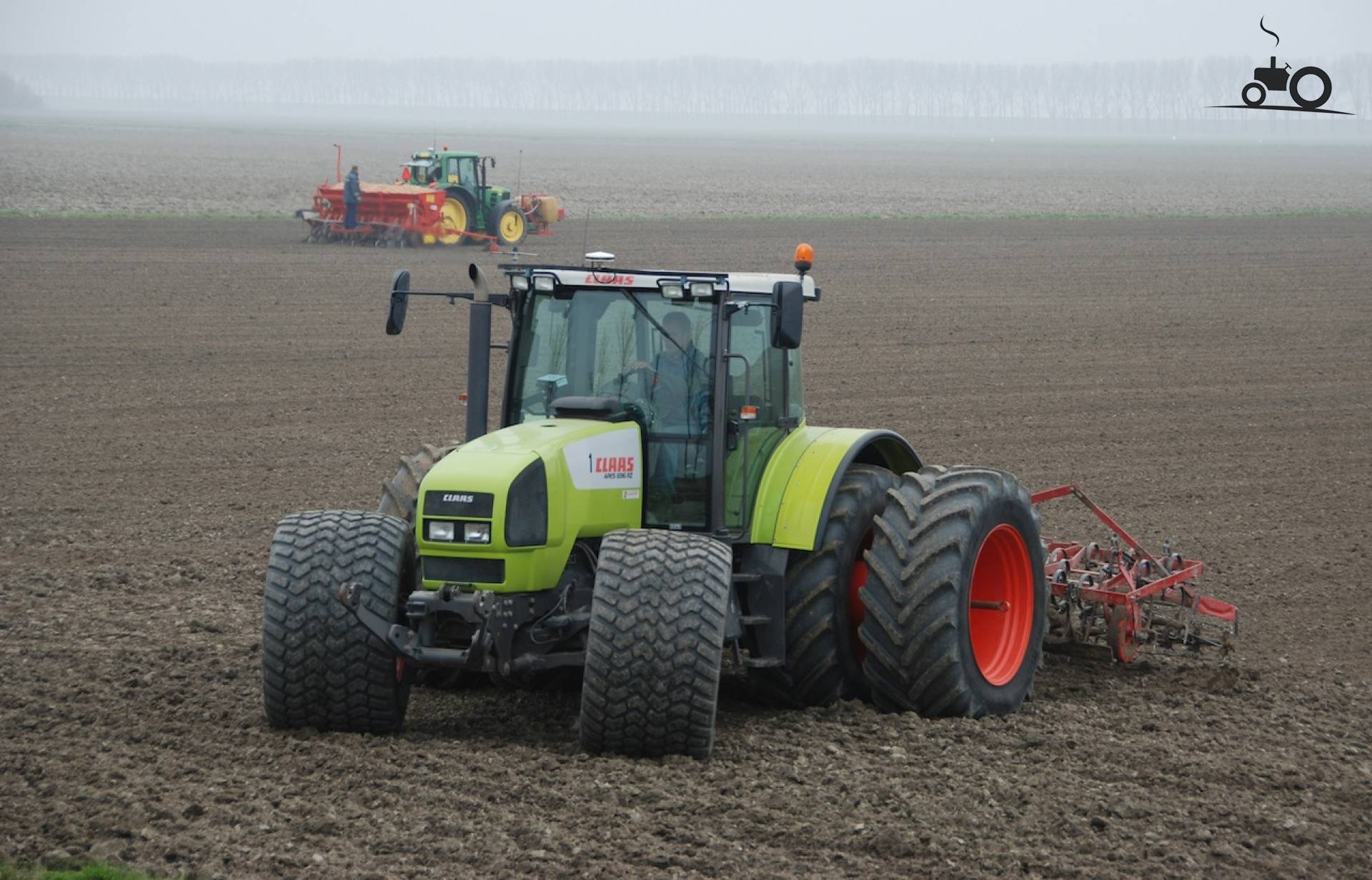

The Claas Ares 696 is a tractor with a rated power output of approximately 146 hp, positioning it at the high end of its class. Production of this model spanned the years 2003 to 2005. It features a 6-cylinder turbocharged engine and four-wheel drive with a hydrostatic transmission. The operating weight of the Claas Ares 696 is listed at 6691 kg, and it is suited to operations covering up to 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
146 hp
Weight
6691 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
146 hp
Recorded weight
6691 kg
Transmissions
32-speed
Production years
2003-2005
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standard with A/CReference
Engine
6.8L 6-cylReference
Fuel tank250.2 LReference
Engine108.9 kWReference
DPS 6068 TRTReference
turboReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power108.9 kWReference
Rated RPM2000Reference
Torque585.1 NmReference
Torque RPM1650Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow95.0 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase275 cmReference
Weight6691 kgReference
Front tire480/70R28Reference
Rear tire580/70R38Reference
Ag front480/70R28Reference
Ag rear580/70R38Reference
Length472 cmReference
Height291 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
