Tractor · 2002Unverified

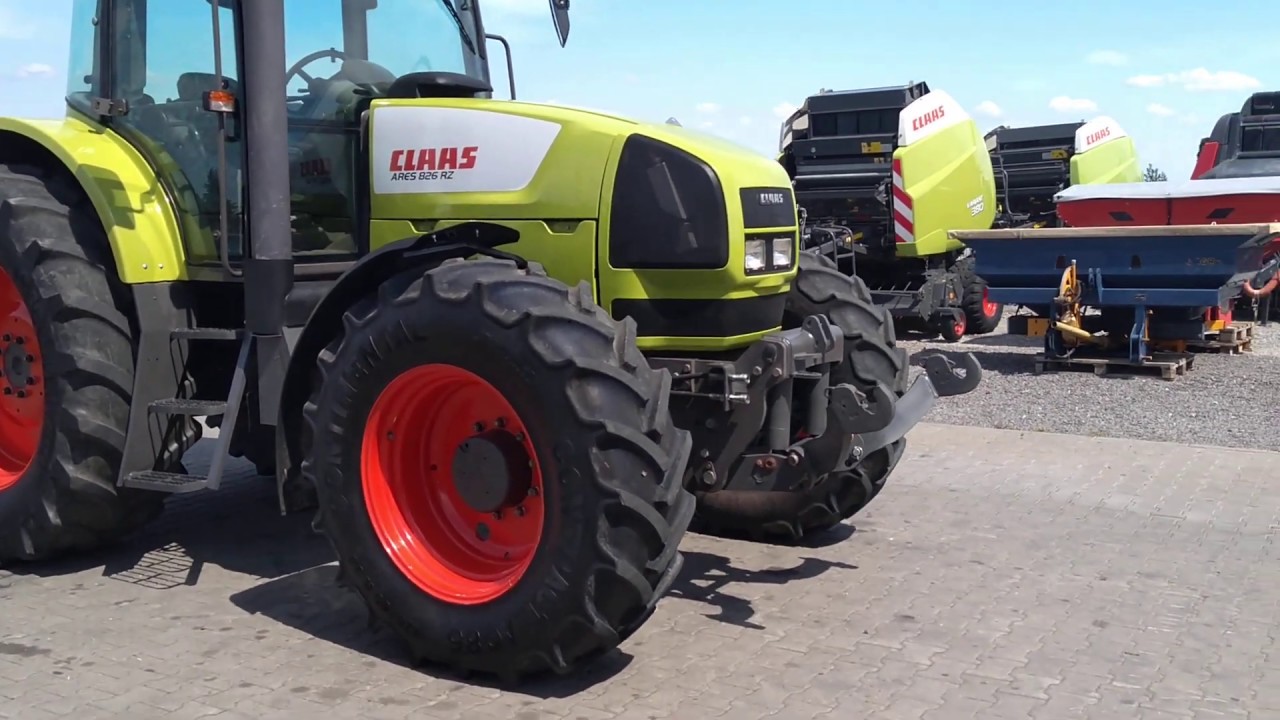

Claas Ares 826
Claas Ares 826 — Ares Series · 181 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
181 hp
Weight
6556 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standard with A/CReference
Engine
6.8L 6-cylReference
Fuel tank275.2 LReference
Engine135.0 kWReference
DPS 6068 HRTReference
intercooled turboReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power135.0 kWReference
Rated RPM2000Reference
Torque759.1 NmReference
Torque RPM1400Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift11332 kgReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase288 cmReference
Weight6556 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length453 cmReference
Height303 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
