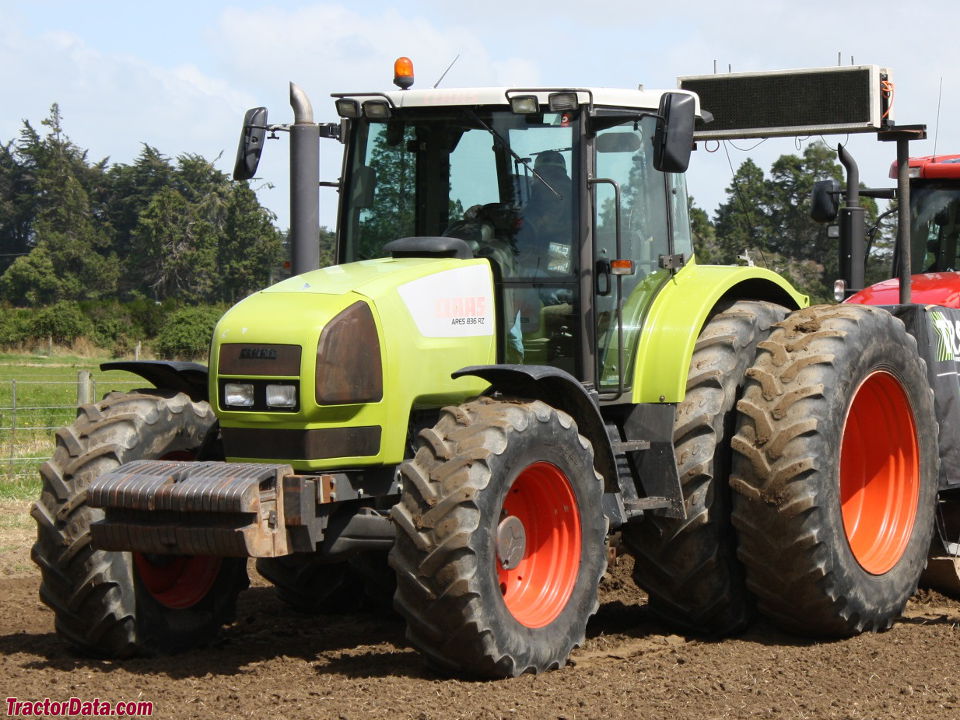

The Claas Ares 836 is a tractor with a rated output of 205 hp, positioning it at the high end of its class. It was produced from 2002 to 2003. It features a 6-cylinder turbocharged intercooled electric engine, coupled with four-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 6751 kg and is suited for use on areas of 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
205 hp
Weight
6751 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
205 hp
Recorded weight
6751 kg
Transmissions
32-speed
Production years
2002-2003
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
6.8L 6-cylReference
Fuel tank300.2 LReference
Engine152.9 kWReference
DPS 6068 HRTReference
intercooled turbochargedReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power152.9 kWReference
Rated RPM2000Reference
Torque820.1 NmReference
Torque RPM1650Reference
Starter typeelectricReference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift11332 kgReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase288 cmReference
Weight6751 kgReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Ag front16.9R30Reference
Ag rear20.8R42Reference
Length462 cmReference
Height309 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
