Tractor · 2009Unverified

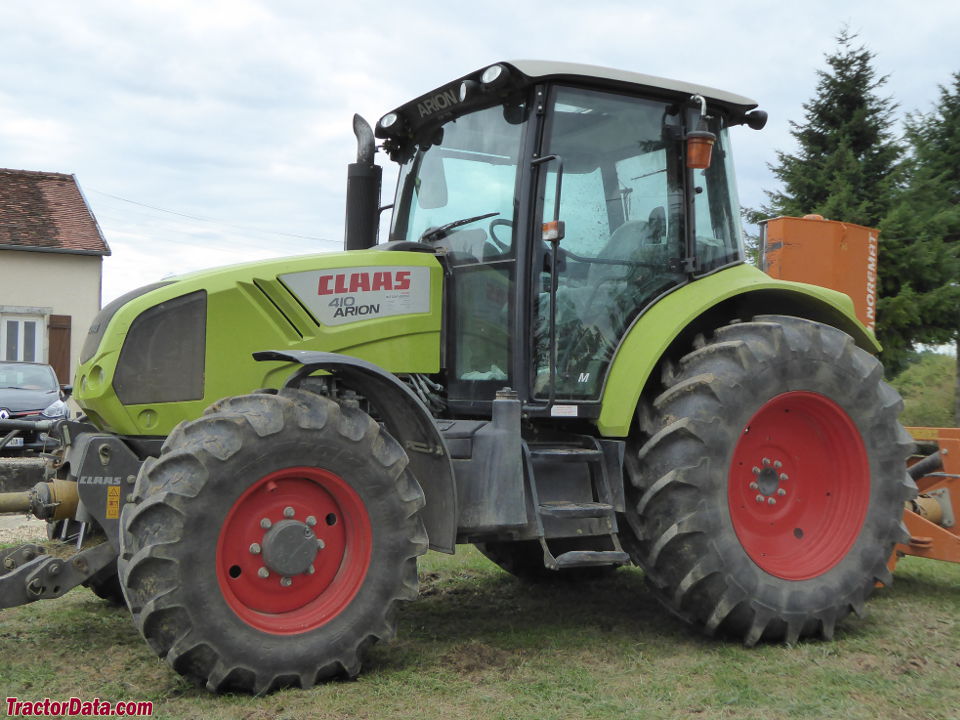

Claas Arion 410
Claas Arion 410 — Model year 2009-20142014-2024 · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
4799 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-conditioning.Reference
Variants
410 CISClaas information systemReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank174.9 LReference
Engine (net)67.1 kWReference
John Deere DPS 4045Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)67.1 kWReference
Maximum Power (net)70.8 kWReference
Rated RPM2200Reference
Torque420.1 NmReference
Torque RPM1650Reference
Starter typeelectricReference
Oil change500 hReference
Transmission
16-speed power shiftReference
TransmissionQuadrishiftReference
Typepower shiftReference
Gears16 forward and reverseReference
Four power shift gears in four power shift ranges. Power shuttle shifting. Quadractiv, optional on CIS models, allows for automated gear shifting.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure195.0 barReference
Rear valves2 to 4Reference
Pump flow60.0 lpmReference
Pump flow98.0 lpmReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Dimensions
Wheelbase256 cmReference
Weight4799 kgReference
Front tire13.4R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 13.4R24. Rear: 16.9R34Reference
Length444 cmReference
Height273 cmReference
Max weight8799 kgReference
Clearance (front axle)44 cmReference
Clearance (rear axle)42 cmReference
Claas Arion 410 attachments
front-end loaderReference
Attachment overview
Claas FL 80 loaderReference
Claas FL 100 loaderReference
Claas FL 120 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
