Tractor · 2009Unverified

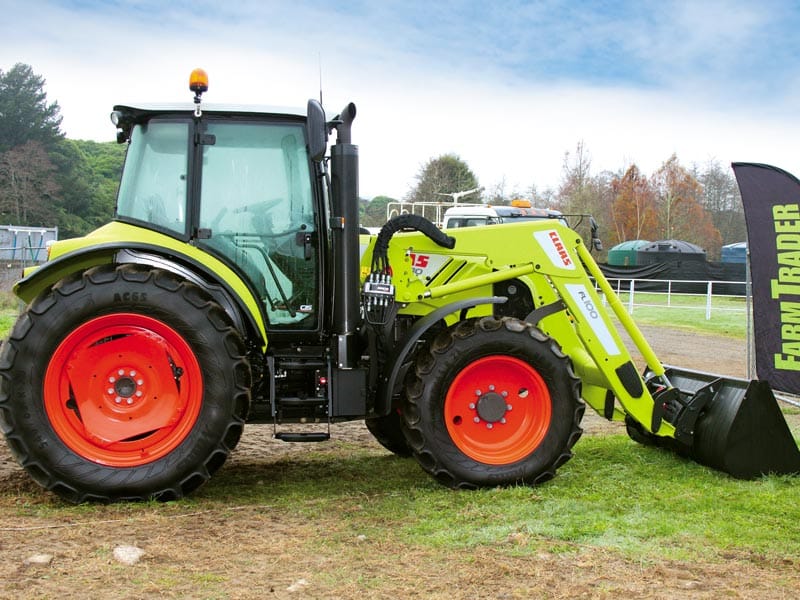

Claas Arion 430

Name: Claas Arion 430
Brand: Claas

Claas Arion 430 — Model year 2009-20142014-2024 · 110 hp. Reference specifications; pending source verification.

The Claas Arion 430 is a tractor featuring a rated power output of 110 hp, a mid-range figure for its class. It was manufactured from 2009 to 2024. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed at 4898 kg, making it suitable for operations spanning 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Weight

4898 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

110 hp

Recorded weight

4898 kg

Transmissions

16-speed power shift

Production years

2009-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Cab standard with available air-conditioning.Reference

Variants

430 CISClaas information systemReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank174.9 LReference

Engine (net)82.0 kWReference

John Deere DPS 4045Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Rated Power (net)82.0 kWReference

Maximum Power (net)85.8 kWReference

Rated RPM2200Reference

Torque495.1 NmReference

Torque RPM1650Reference

Starter typeelectricReference

Oil change500 hReference

Transmission

16-speed power shiftReference

TransmissionQuadrishiftReference

Typepower shiftReference

Gears16 forward and reverseReference

Four power shift gears in four power shift ranges. Power shuttle shifting. Quadractiv, optional on CIS models, allows for automated gear shifting.Reference

PTO & Hydraulics

Typeopen centerReference

Pressure195.0 barReference

Rear valves2 to 4Reference

Pump flow60.0 lpmReference

Pump flow98.0 lpmReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000/1000EReference

Dimensions

Wheelbase256 cmReference

Weight4898 kgReference

Front tire14.9R24Reference

Rear tire18.4R34Reference

Standard tires (ag)Front: 14.9R24. Rear: 18.4R34Reference

Length444 cmReference

Height281 cmReference

Max weight8799 kgReference

Clearance (front axle)51 cmReference

Clearance (rear axle)50 cmReference

Claas Arion 430 attachments

front-end loaderReference

Attachment overview

Claas FL 100 loaderReference

Claas FL 120 loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
