Tractor · 2007Unverified

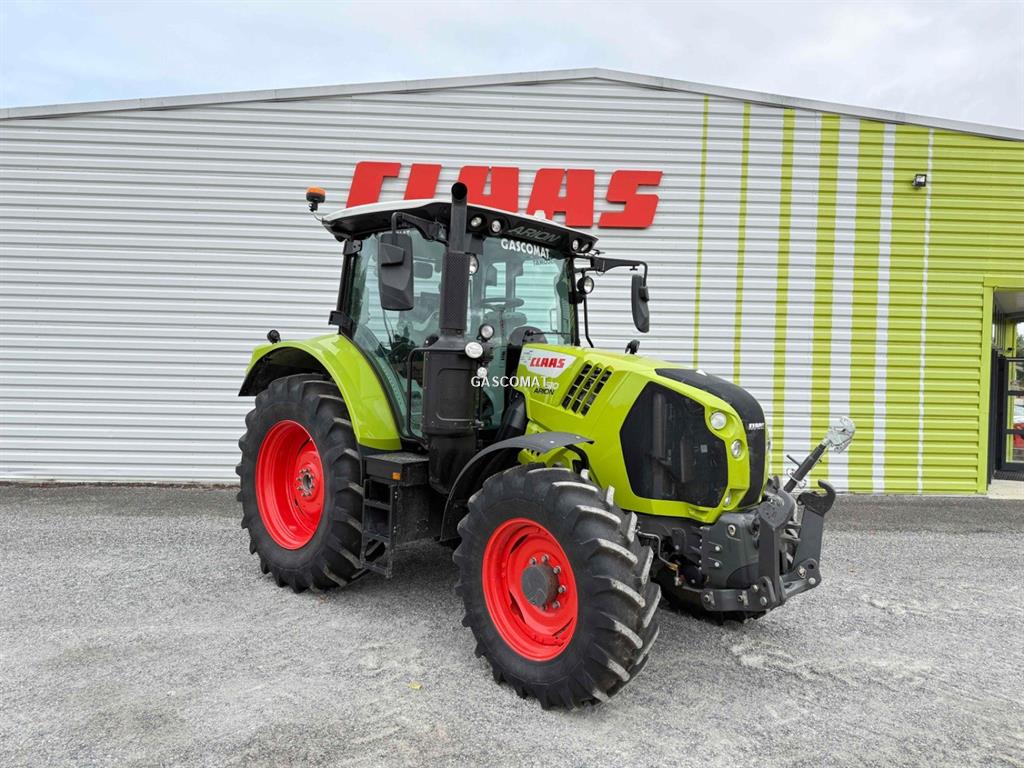

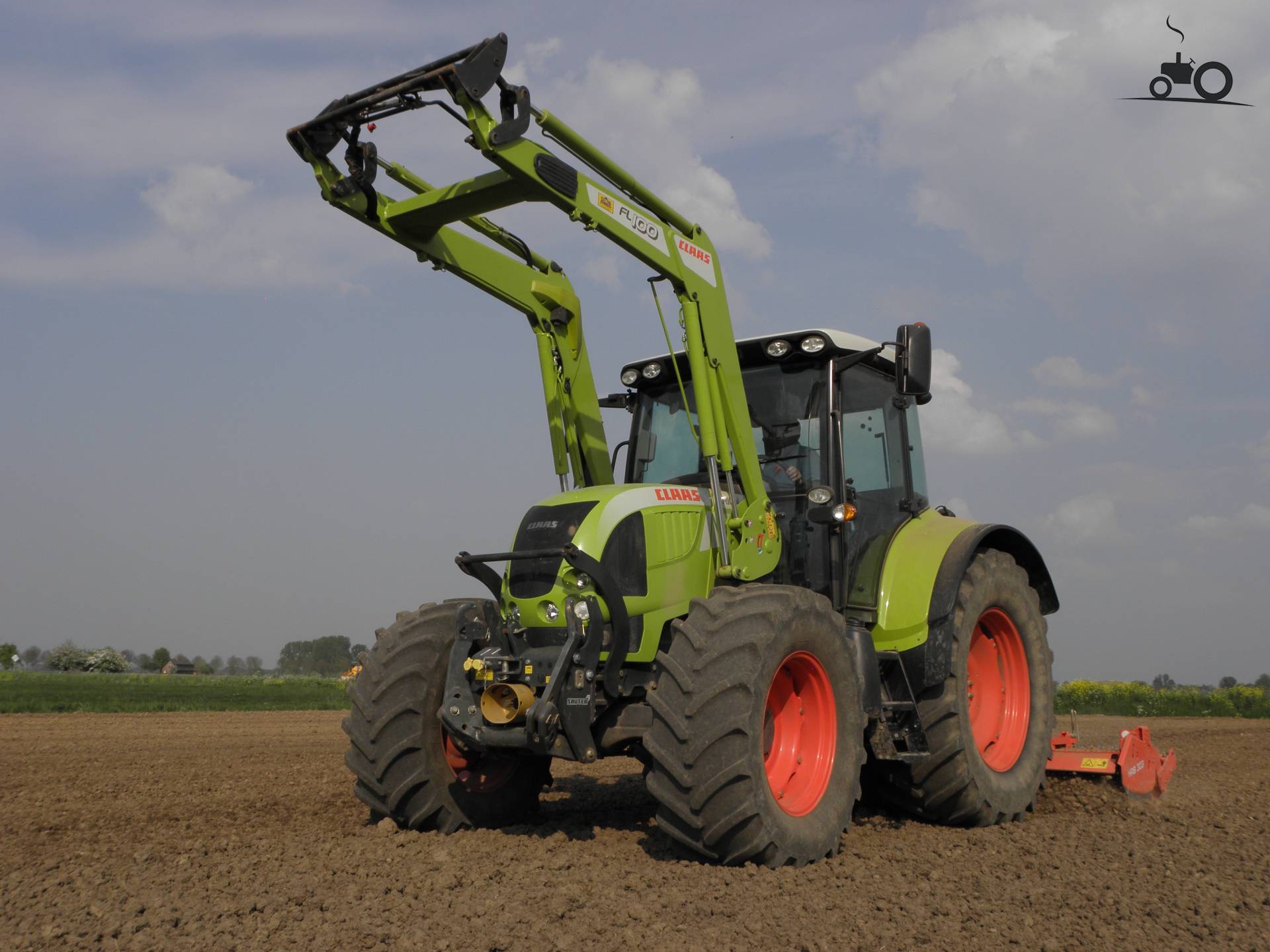

Claas Arion 510

Name: Claas Arion 510
Brand: Claas

Claas Arion 510 — Arion 500 Series · 110 hp. Reference specifications; pending source verification.

The Claas Arion 510 is a tractor, boasting a rated power output of 110 hp, a mid-range figure within its class. This model was manufactured from 2007 to 2011. Specifications include a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The listed operating weight of the Claas Arion 510 is 5379 kg, making it suitable for operations of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Max power

125 hp

Weight

5379 kg

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

110 hp

Recorded weight

5379 kg

Transmissions

24-speed partial power shift with power shuttle

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank249.8 LReference

Engine82.0 kWReference

John DeereReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

EmissionsTier 3Reference

Power82.0 kWReference

Rated RPM2200Reference

Torque470.1 NmReference

Torque RPM1650Reference

Starter typeelectricReference

Oil change500 hReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed188.2 kgReference

Bore and stroke4.19x5.00 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

24-speed partial power shift with power shuttleReference

TransmissionHexashiftReference

Typepartial power shift with power shuttleReference

Gears24 forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

Clutchwet discReference

PTO & Hydraulics

Typeopen centerReference

Typeload sensingReference

Pressure200.0 barReference

Valves2 to 6Reference

Total flow60.2 lpmReference

Total flow110.1 lpmReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000/1000E (optional)Reference

Dimensions

Wheelbase256 cmReference

Weight5379 kgReference

Front tire13.6R28Reference

Rear tire16.9R38Reference

Ag front13.6R28Reference

Ag rear16.9R38Reference

Length488 cmReference

Height (cab)291 cmReference

Ground clearance44 cmReference

Operating5379 kgReference

Ballasted6333 kgReference

Capacities

Max capacity8799 kgReference

Capacity276 ciReference

General

Make & ModelClaasReference

Differential lockelectro-hydraulicReference

Power

Max Power125 hpReference

Rated Power115 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)39.6 gpmReference

Hydraulics Typeload sensingReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Dimensions & weight

Overall Height300 cmReference

Overall Length444.2 cmReference

Overall weight5,949.8 kgReference

Wheels & tyres

Rear Wheel Type16.9R38Reference

Front Wheel Type13.6R28Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
