Tractor · 2007Unverified

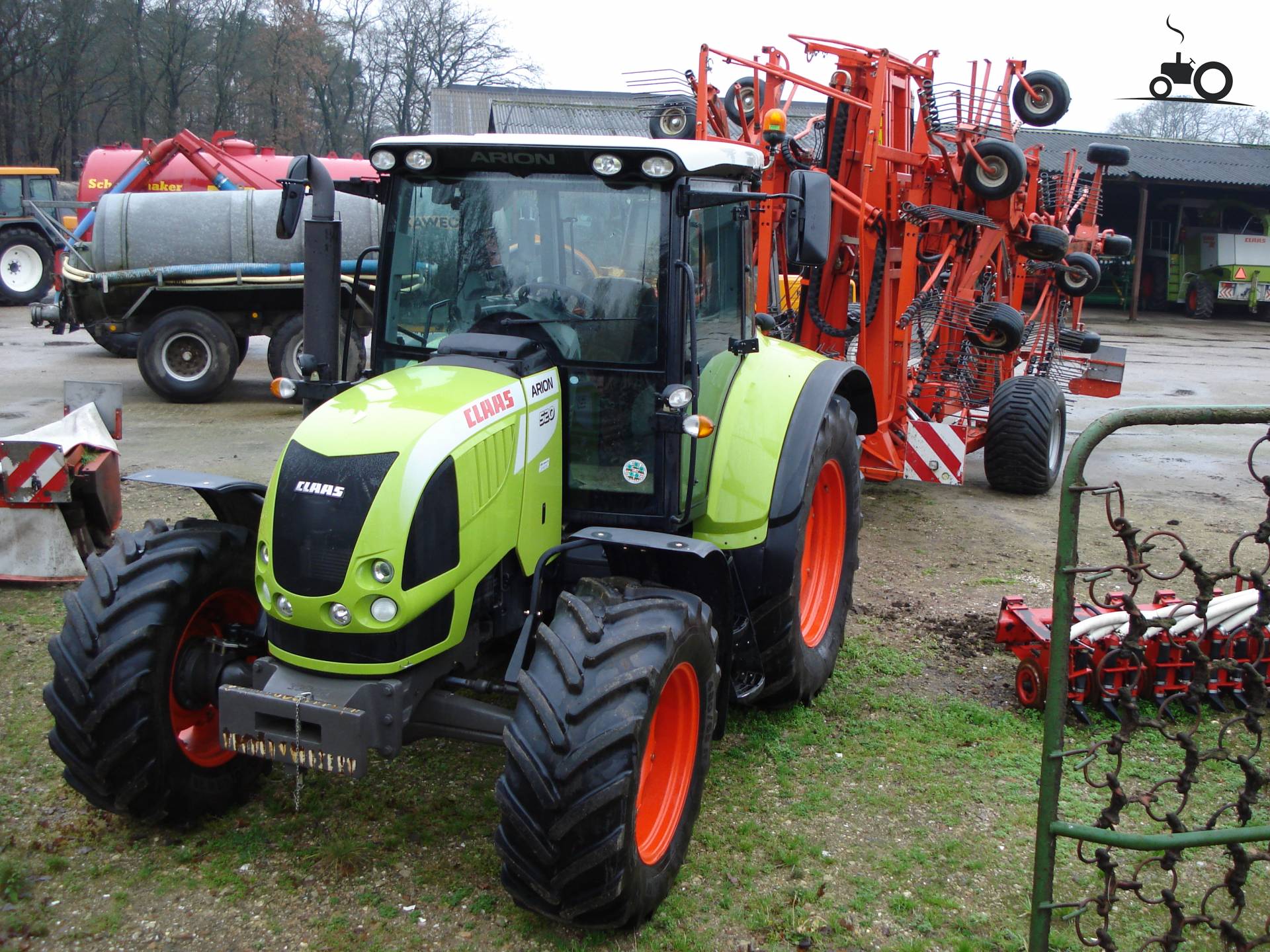

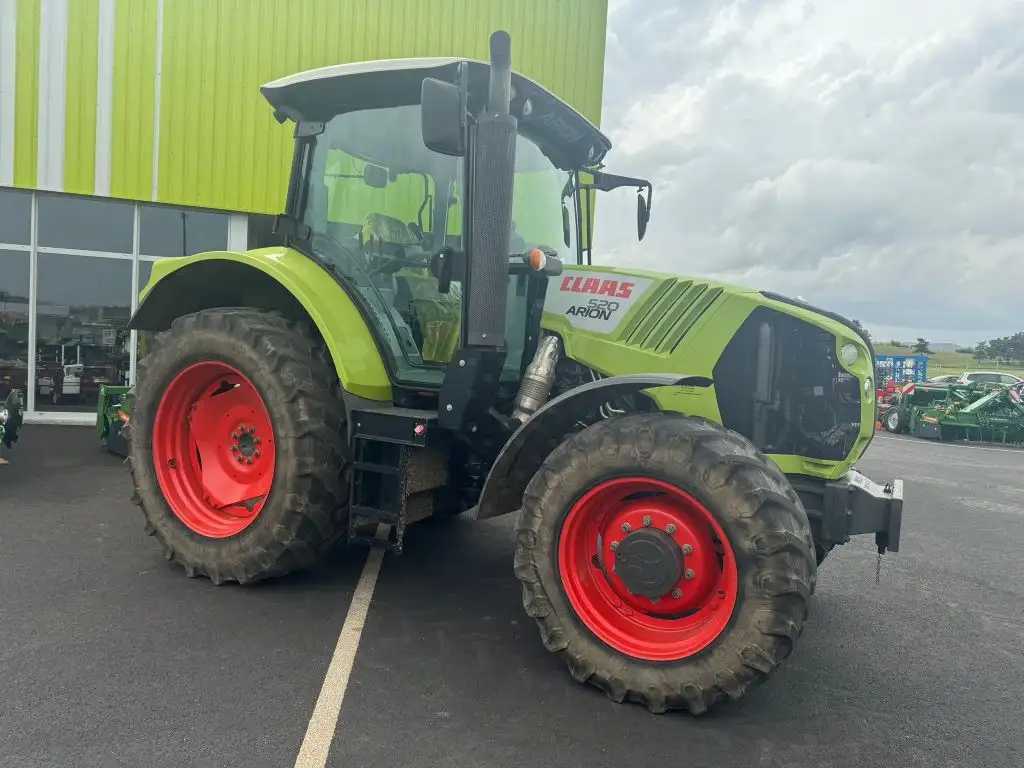

Claas Arion 520

Name: Claas Arion 520
Brand: Claas

Claas Arion 520 — Arion 500 Series · 120 hp. Reference specifications; pending source verification.

The Claas Arion 520 is a tractor model with a rating of approximately 120 hp, positioning it at the more powerful end of its class. Produced from 2007 to 2011, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. Its operating weight is listed at 5470 kg, and it is suitable for operations covering an area of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Max power

120 hp

Weight

5470 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

120 hp

Recorded weight

5470 kg

Transmissions

24-speed partial power shift with power shuttle

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank249.8 LReference

Engine89.5 kWReference

John DeereReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

EmissionsTier 3Reference

Power89.5 kWReference

Rated RPM2200Reference

Torque520.0 NmReference

Torque RPM1650Reference

Starter typeelectricReference

Oil change500 hReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier 3Reference

Engine torque at rated speed174 kgReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

24-speed partial power shift with power shuttleReference

TransmissionHexashiftReference

Typepartial power shift with power shuttleReference

Gears24 forward and reverseReference

Transmission TypeSemi-PowershiftReference

forward and reverse optionspartial power shift with power shuttle - 24F and 24RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Typeload sensingReference

Pressure200.0 barReference

Valves2 to 6Reference

Total flow60.2 lpmReference

Total flow110.1 lpmReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000/1000E (optional)Reference

Dimensions

Wheelbase256 cmReference

Weight5470 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length488 cmReference

Height (cab)296 cmReference

Ground clearance48 cmReference

Operating5470 kgReference

Ballasted6424 kgReference

Capacities

Max capacity8799 kgReference

Capacity276.1 ciReference

General

Make & ModelClaasReference

Hydraulics

Capacity Valves16 valveReference

Pump Rated Output (total)29.1 gpmReference

Hydraulics Typeopen center | load sensingReference

Maximum operating pressure2,901 psiReference

Remote Valves2 to 6 ValvesReference

Power

Max Power120 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Dimensions & weight

Height Over Cab296.2 cmReference

Overall Length489 cmReference

Overall weight5,470.3 kgReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Front Wheel Type14.9R28Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typePower steeringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
