Tractor · 2007Unverified

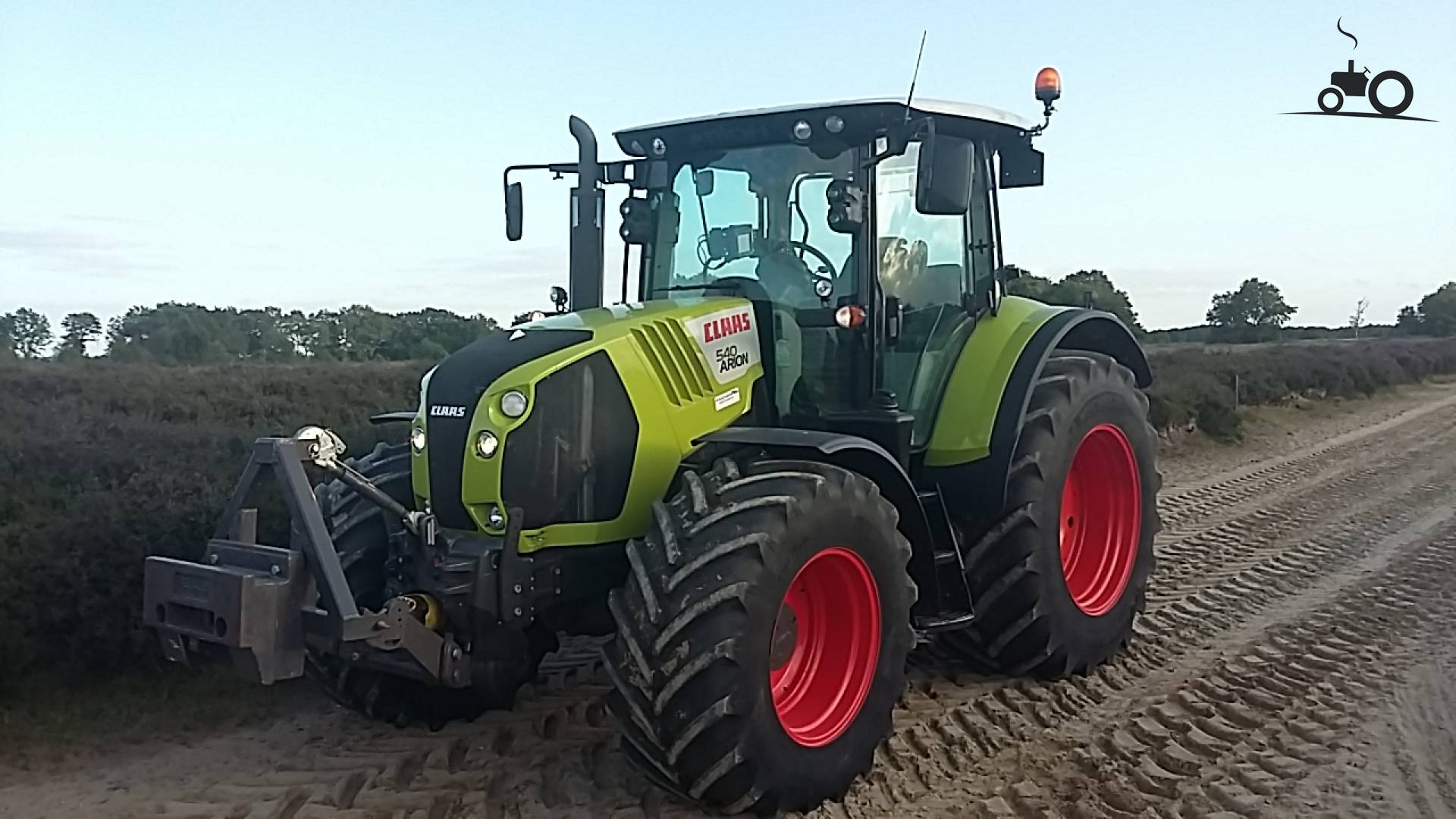

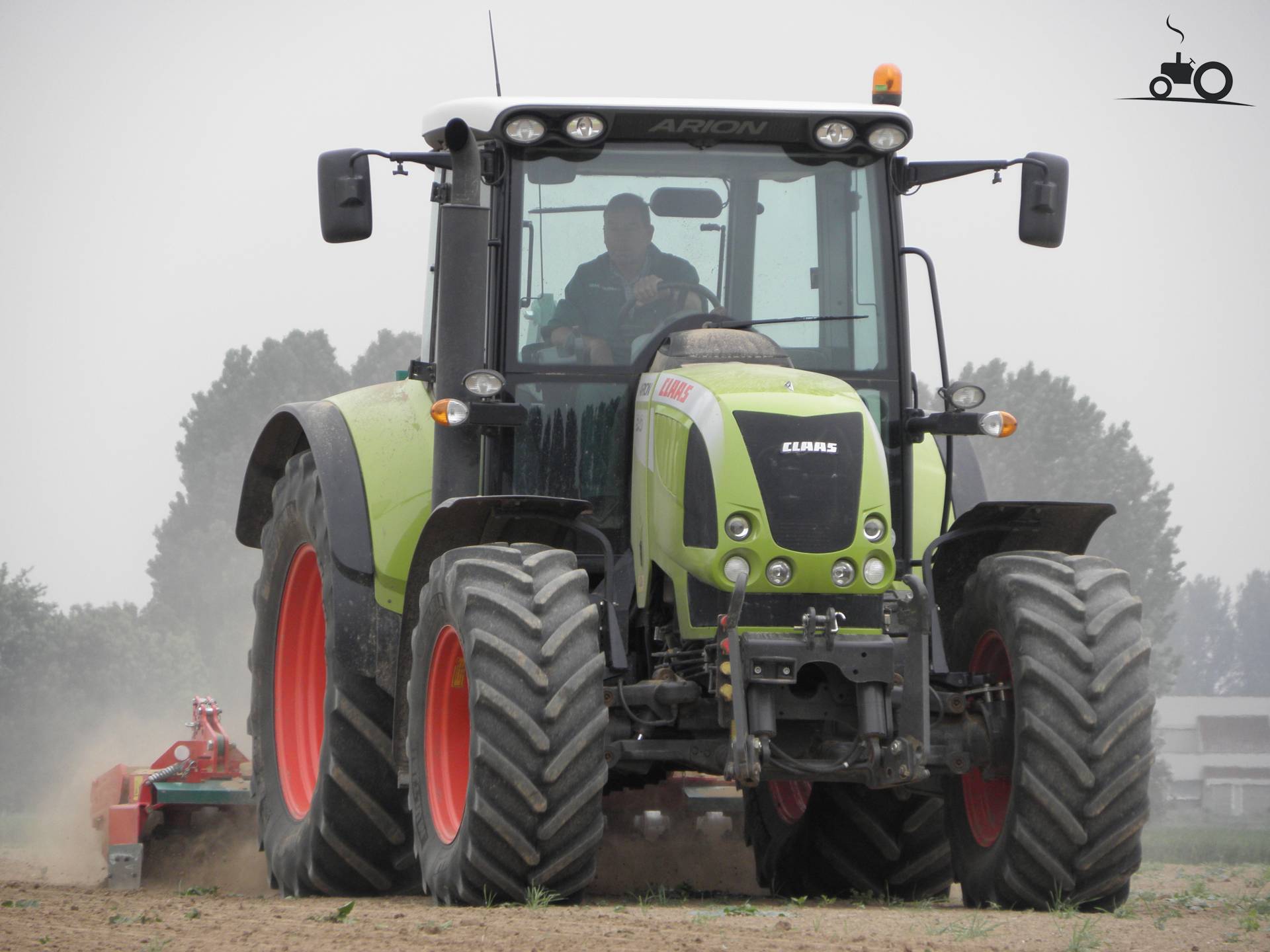

Claas Arion 540

Name: Claas Arion 540
Brand: Claas

Claas Arion 540 — Model year 2007-20112012-2017 · 135 hp. Reference specifications; pending source verification.

The Claas Arion 540 is a tractor boasting a rated power output of 135 hp, positioning it at the higher power end of its class. It was produced from 2007 to 2017. This model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight is 5470 kg, with a suitable operating range of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

155 hp

Weight

5470 kg

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

135 hp

Recorded weight

5470 kg

Transmissions

24-speed partial power shift with power shuttle

Production years

2007-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank249.8 LReference

Engine100.7 kWReference

John DeereReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.5 LReference

EmissionsTier 3Reference

Power100.7 kWReference

Rated RPM2200Reference

Torque577.1 NmReference

Torque RPM1650Reference

Starter typeelectricReference

Oil change500 hReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier 3Reference

Engine torque at rated speed193 kgReference

Bore and stroke4.19x5.00 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

24-speed partial power shift with power shuttleReference

TransmissionHexashiftReference

Typepartial power shift with power shuttleReference

Gears24 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionssix-speed power shift - 24F and 24RReference

Wheel Drive4WDReference

Clutchwet discReference

PTO & Hydraulics

Typeopen centerReference

Typeload sensingReference

Pressure200.0 barReference

Valves2 to 6Reference

Total flow60.2 lpmReference

Total flow110.1 lpmReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000/1000E (optional)Reference

Dimensions

Wheelbase256 cmReference

Weight5470 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length488 cmReference

Height (cab)296 cmReference

Ground clearance48 cmReference

Operating5470 kgReference

Ballasted6424 kgReference

Capacities

Max capacity8799 kgReference

Capacity276 ciReference

General

Make & ModelClaasReference

Differential lockelectro-hydraulicReference

Power

Max Power155 hpReference

Rated Power150 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)29.1 gpmReference

Hydraulics Typeopen center | load sensingReference

Maximum operating pressure2,901 psiReference

Remote Valves2 to 6 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Dimensions & weight

Overall Height296.2 cmReference

Overall Length476.5 cmReference

Front axle clearance50.3 cmReference

Overall weight5,929.8 kgReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Front Wheel Type14.9R28Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
