Tractor · 2007Unverified

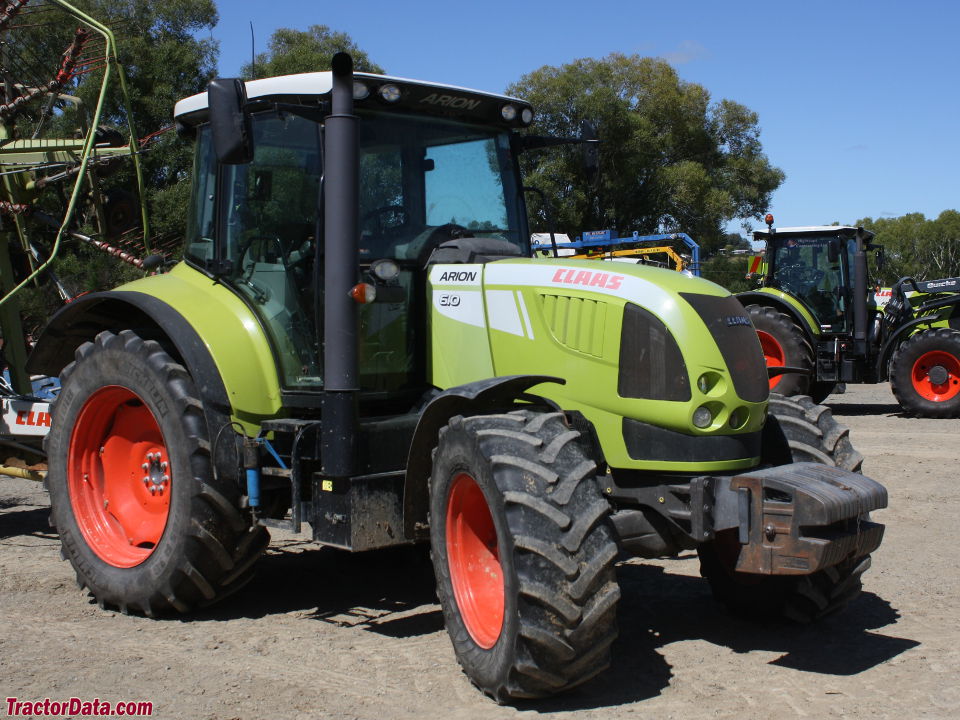

Claas Arion 610

Name: Claas Arion 610
Brand: Claas

Claas Arion 610 — Arion 600 Series · 120 hp. Reference specifications; pending source verification.

The Claas Arion 610 is a tractor with a rated output of 120 hp, positioning it among the higher-powered machines in its class. Production of this model spanned from 2007 to 2011. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a powershift transmission. The listed weight of the Claas Arion 610 is 5719 kg, and it is designed for jobs covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Max power

145 hp

Weight

5719 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

120 hp

Recorded weight

5719 kg

Transmissions

24-speed partial power shift with power shuttle

Production years

2007-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Variants

Arion 610deluxe modelReference

Arion 610Ceconomy modelReference

Engine

John Deere 6.8L 6-cyl dieselReference

Fuel tank330.1 LReference

Engine89.5 kWReference

John DeereReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.8 LReference

EmissionsTier 3Reference

Power89.5 kWReference

Rated RPM2200Reference

Torque527.1 NmReference

Torque RPM1650Reference

Starter typeelectricReference

Oil change500 hReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed214.1 kgReference

Bore and stroke4.19x5.00 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

24-speed partial power shift with power shuttleReference

TransmissionHexashiftReference

Typepartial power shift with power shuttleReference

Gears24 forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

Clutchwet discReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Valves2 to 6Reference

Total flow110.1 lpmReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000/1000E (optional)Reference

Dimensions

Wheelbase281 cmReference

Weight5719 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length515 cmReference

Height (cab)298 cmReference

Ground clearance48 cmReference

Operating5719 kgReference

Ballasted6669 kgReference

Capacities

Max capacity8799 kgReference

Capacity414 ciReference

General

Make & ModelClaasReference

Cruise controlAvailableReference

Differential lockelectro-hydraulicReference

Power

Max Power145 hpReference

Rated Power135 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)39.6 gpmReference

Hydraulics Typeload sensingReference

Maximum operating pressure2,900 psiReference

Remote Valves2 to 4 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Dimensions & weight

Overall Height305.1 cmReference

Overall Length476 cmReference

Overall weight6,529.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
