Tractor · 2007Unverified

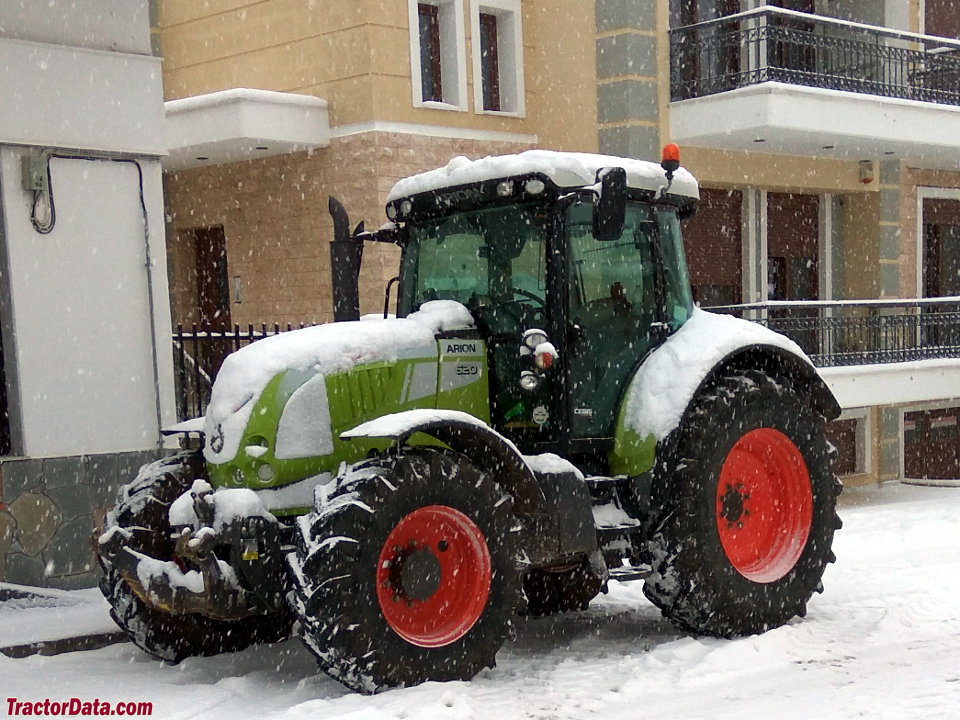

Claas Arion 620
Claas Arion 620 — Model year 2007-20112012-2017 · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5951 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Variants
Arion 620deluxe modelReference
Arion 620Ceconomy modelReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank330.1 LReference
Engine100.7 kWReference
John DeereReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.8 LReference
EmissionsTier 3Reference
Power100.7 kWReference
Rated RPM2200Reference
Torque571.0 NmReference
Torque RPM1650Reference
Starter typeelectricReference
Oil change500 hReference
Transmission
24-speed partial power shift with power shuttleReference
TransmissionHexashiftReference
Typepartial power shift with power shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
Typeload sensingReference
Pressure200.0 barReference
Valves2 to 6Reference
Total flow110.1 lpmReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000/1000E (optional)Reference
Dimensions
Wheelbase281 cmReference
Weight5951 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length515 cmReference
Height (cab)300 cmReference
Ground clearance49 cmReference
Operating5951 kgReference
Ballasted6905 kgReference
Capacities
Max capacity8799 kgReference
Max capacity10251 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
