TractorArion 600 Series · 2024 Verified · 82%

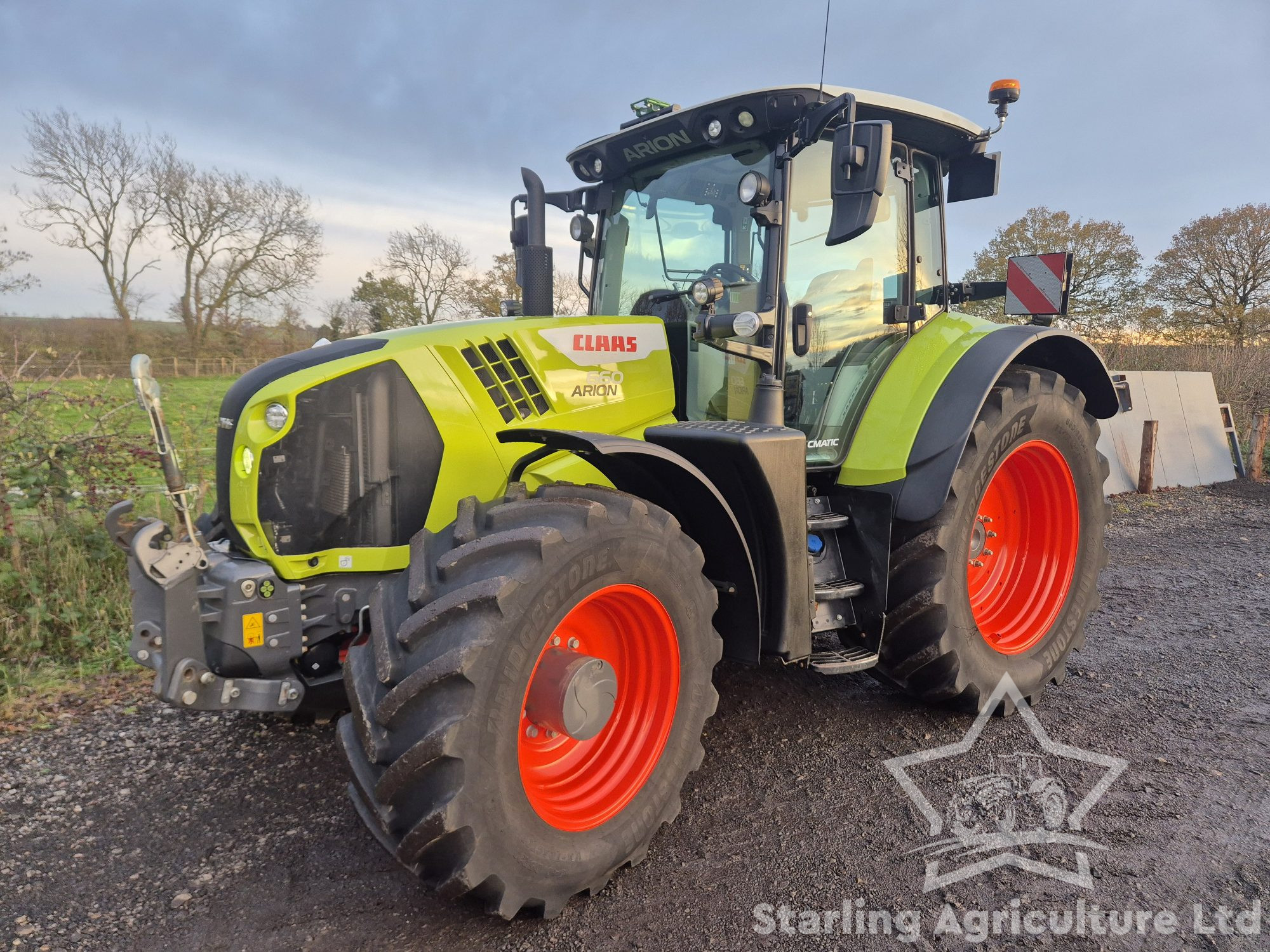

Claas Arion 660

Name: Claas Arion 660
Brand: Claas

Claas Arion 660: 205 hp tractor — 6.8 L engine, 5100 kg rear lift. Verified specs with sources, UK & US units.

The Claas Arion 660 is a tractor with a rated power of 205 hp, which puts it at the powerful end of its class. The Arion 660 entered production in 2024. It has a listed operating weight of 7859 kg, and it suits operations of 600–1,500 ac. Full UK and US specifications are listed below, each with its source.

Rated power

205 hp

Max power

185 hp

Weight

7859 kg

Catalogue coverage

Variants represented

Richest spec table

23 rows

Recorded power

205 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power153 kW (205 hp)OEM

Emissions stageStage VEPA cert

Engine6.8 LDealer

Fuel TypeDieselReference

Engine torque at rated speed626 (with boost) ft-lbReference

PTO & Hydraulics

Rear lift capacity5100 kgDealer

Hydraulic flow110 L/minDealer

Dimensions

Wheelbase2810 mmDealer

Weight7859 kgDealer

Capacities

Fuel tank367 LDealer

Capacity6.7 lReference

Power

Max Power185 hpReference

Transmission

Transmission TypeCVTReference

Wheel Drive4WDReference

General

Cruise controlAvailableReference

Precision AgricultureAvailable (Telematic)Reference

Hydraulics

Remote Valves4Reference

Rear Hitch category (SAE designation)Category 3Reference

Rear Hitch maximum lift capacity8,000 kgReference

Front Hitch lift capacity beyond lift points3,999.8 kgReference

Dimensions & weight

Turning radius5.5 mReference

Overall weight12,500.1 kgReference

Operator station

Cab AvailabilitytrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
