Tractor · 2003Unverified

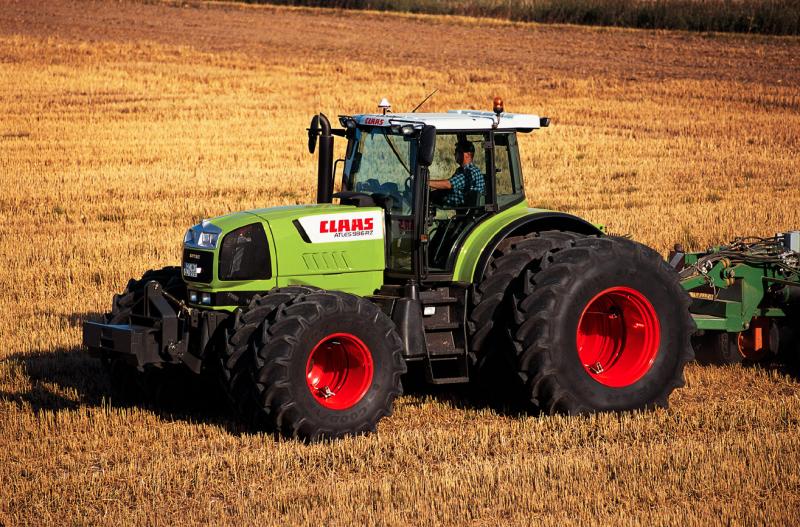

Claas Atles 936
Claas Atles 936 — Atles Series · 253 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
253 hp
Weight
9027 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standard with A/CReference
Engine
Deutz 7.2L 6-cylReference
Fuel tank455.0 LReference
Engine188.7 kWReference
Deutz Deutz BF6L1013FCReference
intercooled turbochargedReference
6-cylinderReference
Displacement7.2 LReference
Bore/Stroke108 x 130 mmReference
Power188.7 kWReference
Rated RPM2000Reference
Torque1050.2 NmReference
Torque RPM1500Reference
Transmission
18-speedReference
Gears18 forward and 8 reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift12002 kgReference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase304 cmReference
Weight9027 kgReference
Front tire600/70R38Reference
Rear tire650/85R38Reference
Ag front600/70R38Reference
Ag rear650/85R38Reference
Length509 cmReference
Height325 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
