Tractor · 2014Unverified

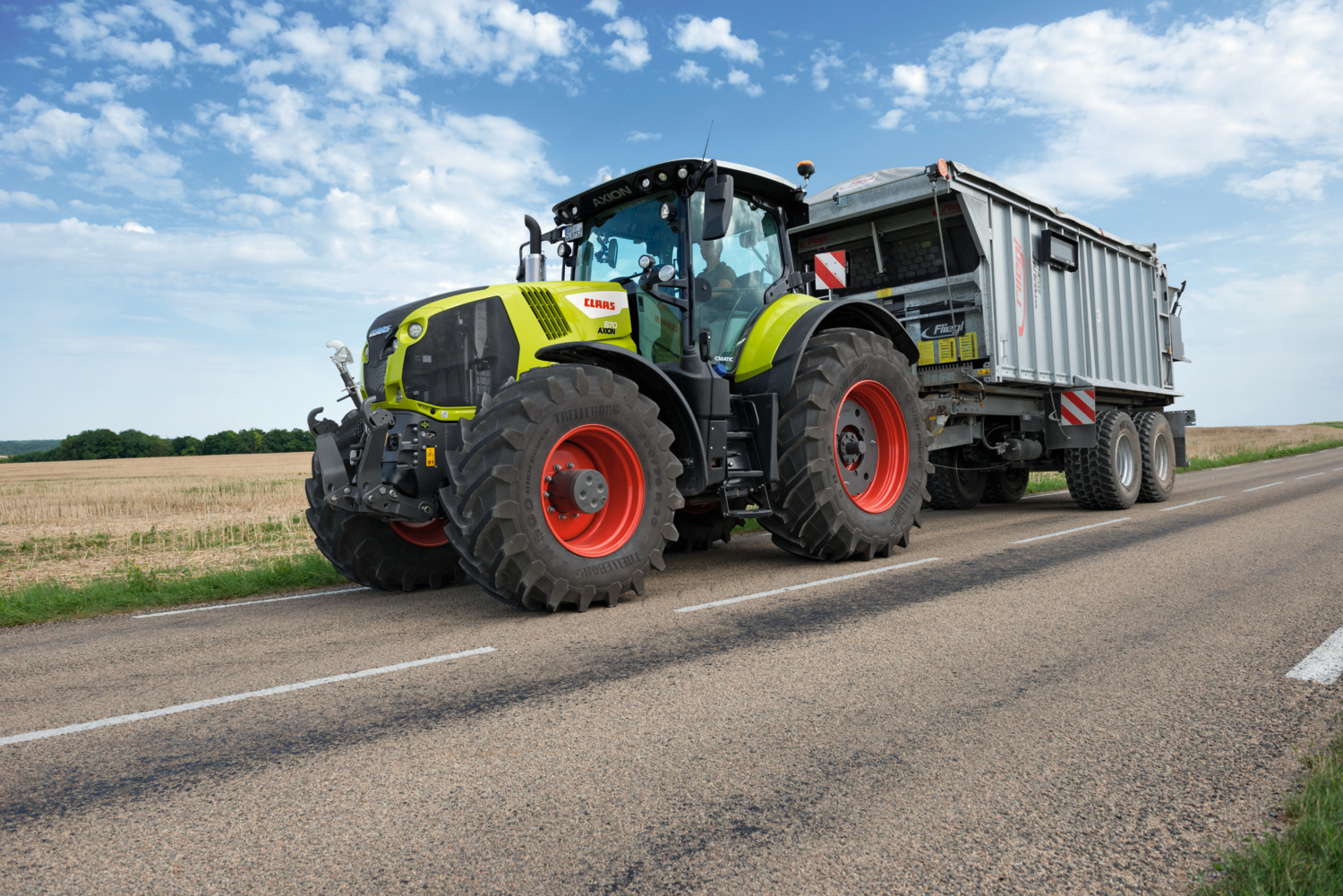

Claas Axion 800
Claas Axion 800 — Axion 800 Series · 193 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
193 hp
Weight
8299 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank455.0 LReference
Engine (gross)143.9 kWReference
Engine (max)152.9 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Rated Power (gross)143.9 kWReference
Maximum Power (gross)152.9 kWReference
Rated RPM2150Reference
Torque896.2 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil change600 hReference
Transmission
24-speed power shiftReference
TransmissionHEXASHIFTReference
Typepower shiftReference
Gears24 forward and reverseReference
Six gears in four ranges with power shuttle.Reference
PTO & Hydraulics
Typeload sensingReference
Valves3 to 7Reference
Pump flow110.1 lpmReference
Pump flow149.9 lpmReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000/1000EReference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase297 cmReference
Weight8299 kgReference
Length542 cmReference
Height (cab)321 cmReference
Clearance (front axle)46 cmReference
Clearance (rear axle)52 cmReference
Front axle4WDReference
Front axleSuspended 4WDReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
