Tractor · 2006Unverified

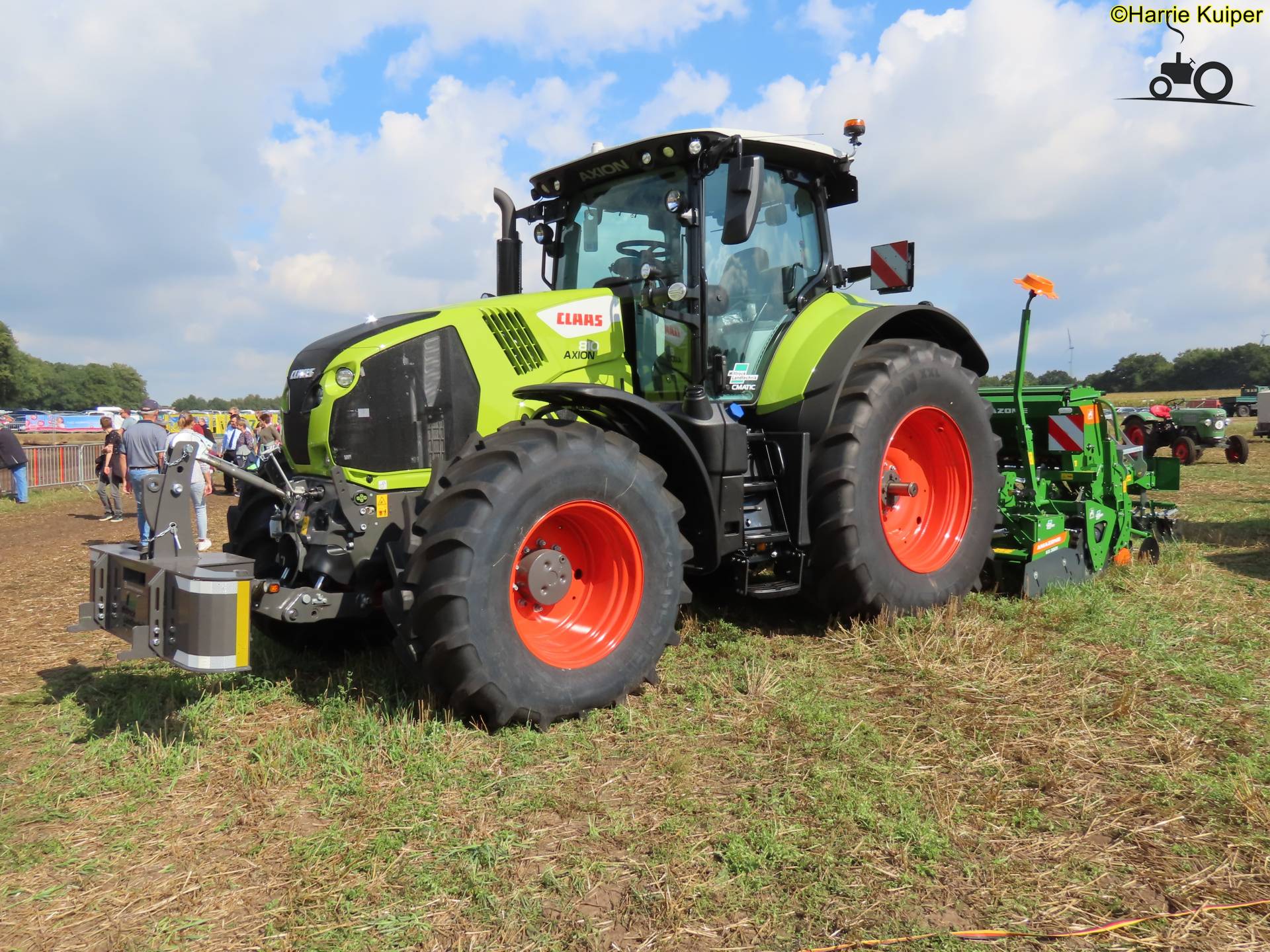

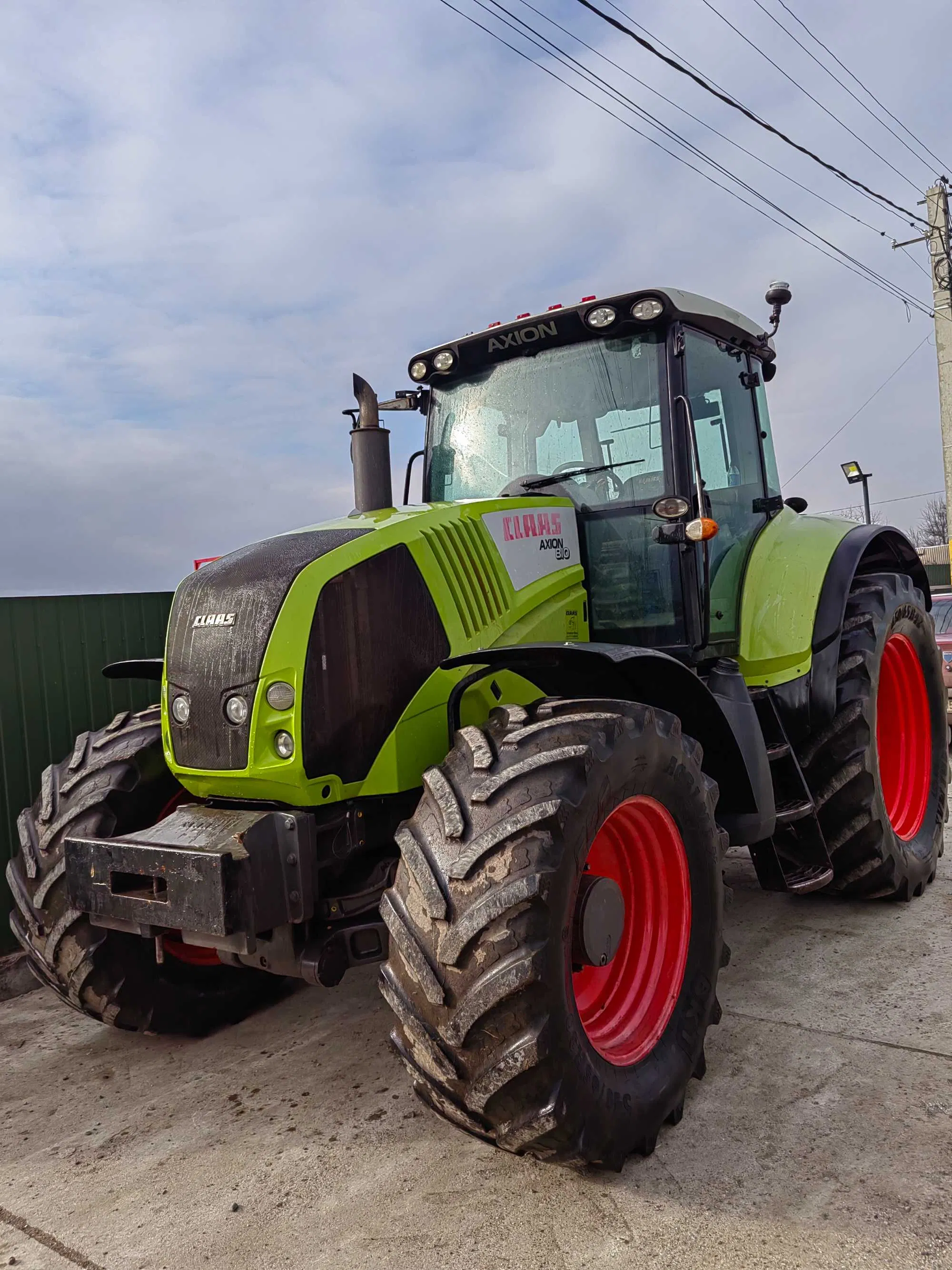

Claas Axion 810
Claas Axion 810 — Model year 2006-20132013-2023 · 178 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
178 hp
Weight
7148 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
cab with A/CReference
Engine
DPS 6.8L 6-cyl dieselReference
Fuel tank406.9 LReference
Engine132.7 kWReference
DPSReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Power132.7 kWReference
Rated RPM2200Reference
Torque754.1 NmReference
Torque RPM1500Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
PTO & Hydraulics
TypePFCReference
Pressure200.0 barReference
Valves3 to 5Reference
Total flow110.0 lpmReference
Rear lift9462 kgReference
Front lift3299 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase298 cmReference
Weight7148 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length566 cmReference
Height315 cmReference
Ground clearance51 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
