Tractor · 2006Unverified

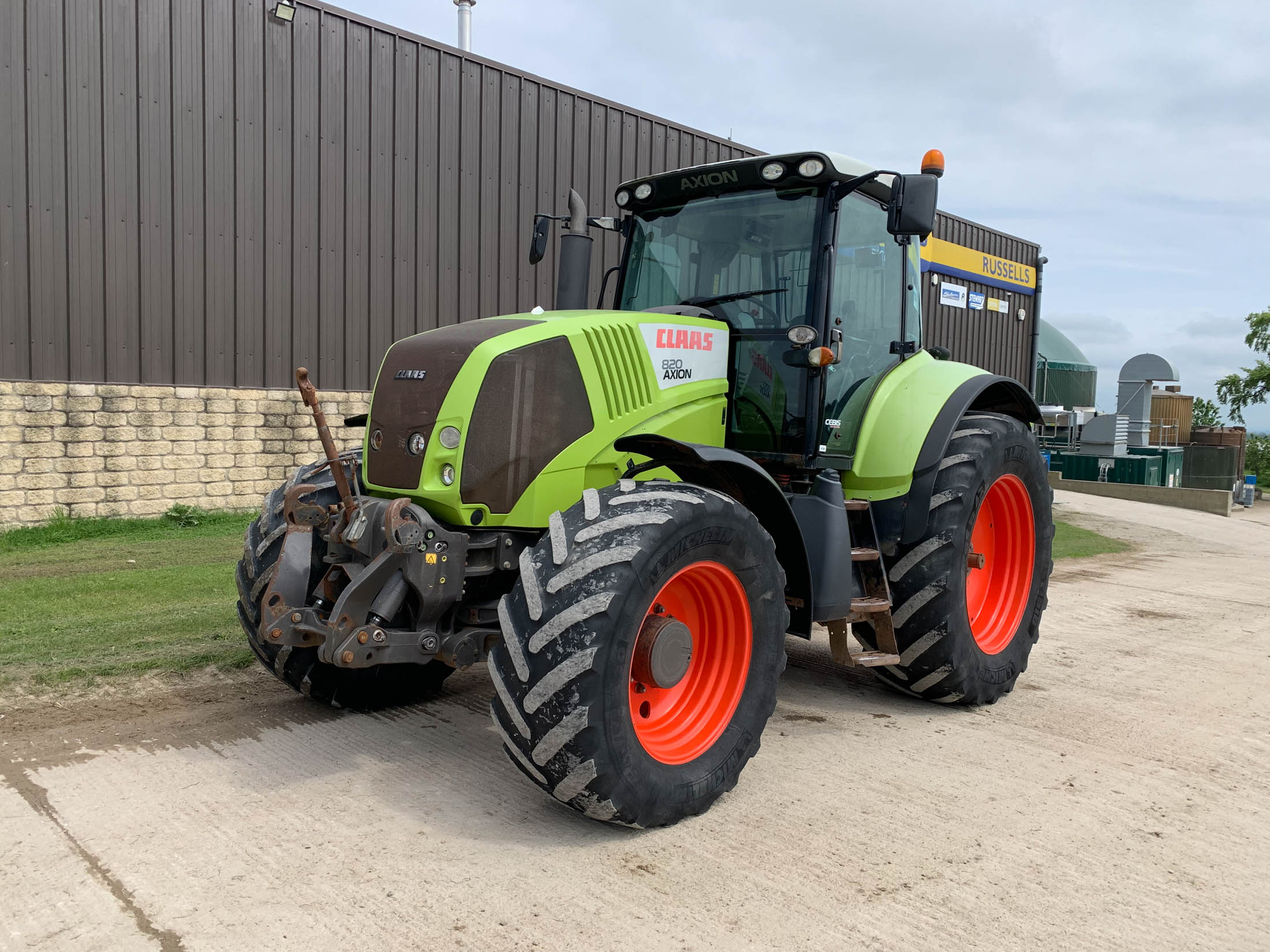

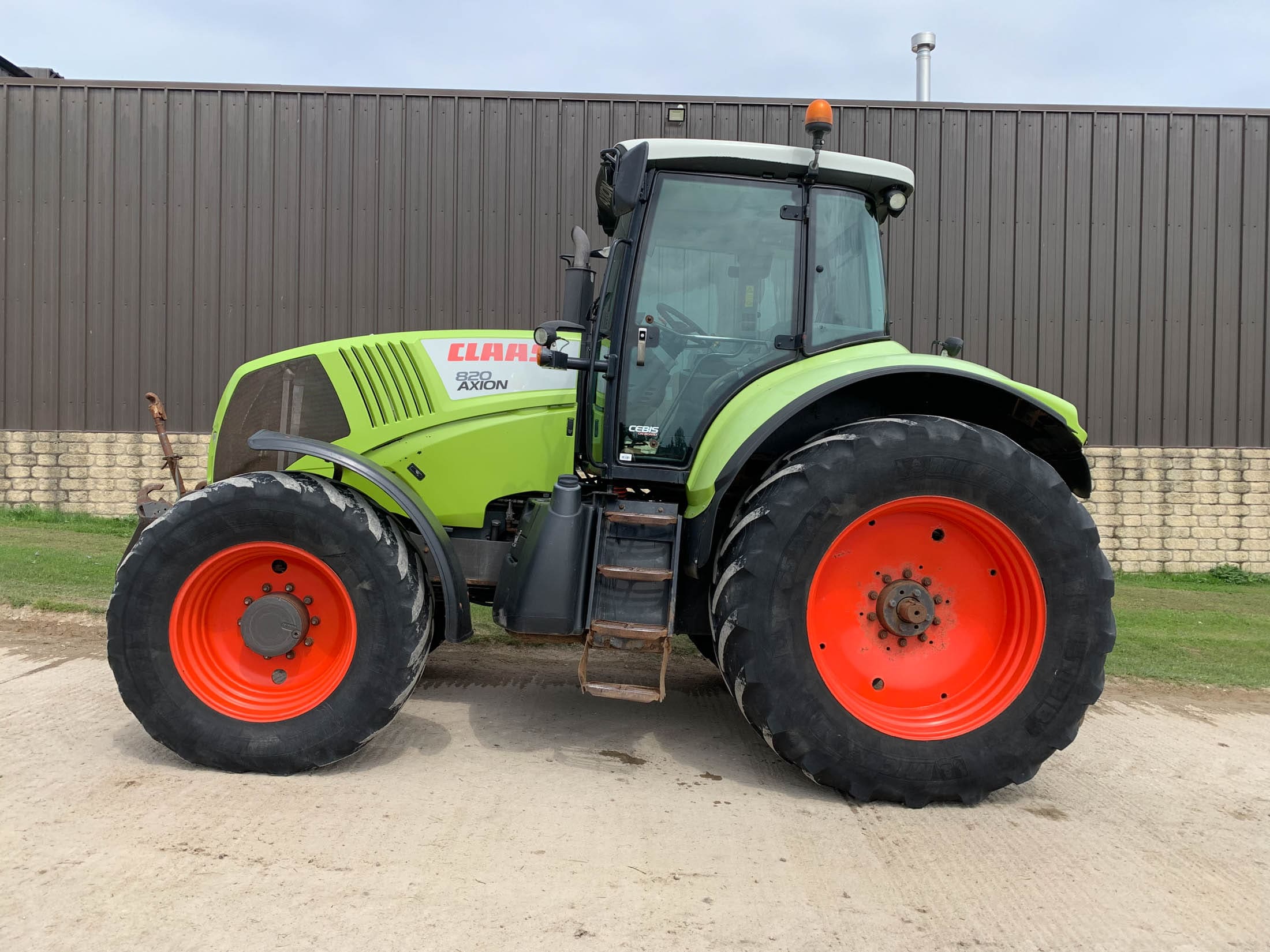

Claas Axion 820

Name: Claas Axion 820
Brand: Claas

Claas Axion 820 — Model year 2006-20132014-2016 · 197 hp. Reference specifications; pending source verification.

The Claas Axion 820 is a tractor with an engine rating of 197 horsepower, categorising it as a high-power machine within its class. Manufactured from 2006 to 2016, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, transmitting power to all four wheels via a 24-speed gearbox. The listed weight of the tractor is 7148 kg, and it is suited for tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

197 hp

Max power

230 hp

Weight

7148 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

197 hp

Recorded weight

7148 kg

Transmissions

24-speed

Production years

2006-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

cab with A/CReference

Engine

DPS 6.8L 6-cyl dieselReference

Fuel tank406.9 LReference

Engine146.9 kWReference

DPSReference

intercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Power146.9 kWReference

Rated RPM2200Reference

Torque850.1 NmReference

Torque RPM1500Reference

Fuel TypeDieselReference

Rated engine speed2,150 rpmReference

Cooling systemVisctronic fanReference

Transmission

24-speedReference

Gears24 forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

TypePFCReference

Pressure200.0 barReference

Valves3 to 5Reference

Total flow110.0 lpmReference

Rear lift9462 kgReference

Front lift3299 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase298 cmReference

Weight7148 kgReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Ag front16.9R28Reference

Ag rear20.8R38Reference

Length566 cmReference

Height315 cmReference

Ground clearance51 cmReference

Capacities

Capacity6.7 LReference

Diesel exhaust fluid (DEF) tank41.6 LReference

Power

Max Power230 hpReference

Rated Power215 hpReference

PTO

PTO Power209 hpReference

Front PTO PowerAvailableReference

General

Cruise controlAvailableReference

Precision AgricultureAvailable (Remote diagnostics)\\nAvailable (Telematic)Reference

Hydraulics

Pump Rated Output (total)151.4 l/minReference

Rear Hitch maximum lift capacity9,729.5 kgReference

Front Hitch lift capacity beyond lift points4,590.4 kgReference

Dimensions & weight

Overall weight9,271.4 kgReference

Operator station

Cab AvailabilitytrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
