Tractor · 2018Unverified

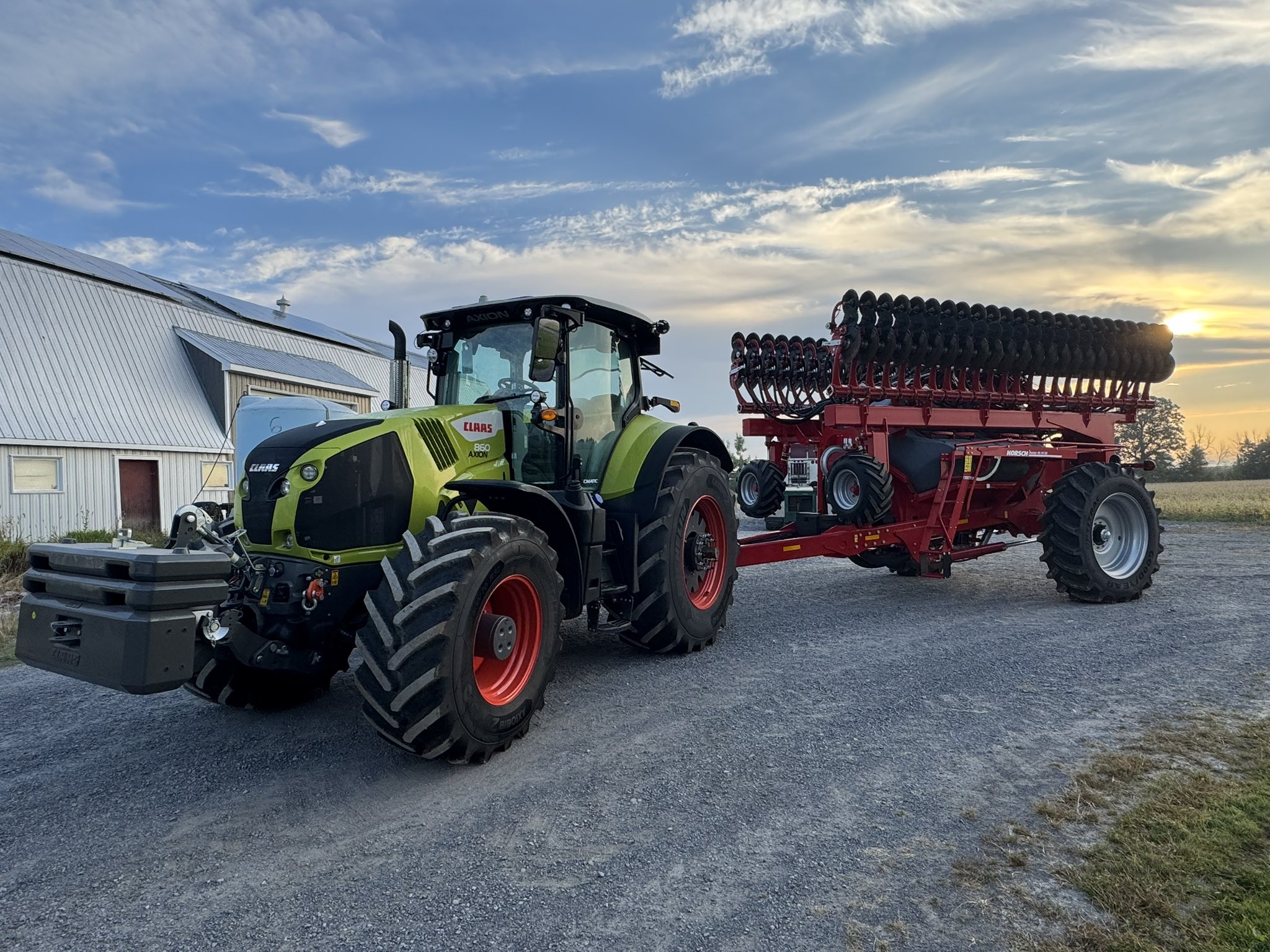

Claas Axion 860
Claas Axion 860 — Axion 800 Series · 234 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
234 hp
Max power
191.2 kW
Weight
10553 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank454.2 LReference
Exhaust fluid (DEF)41.6 LReference
Engine186.4 kWReference
Drawbar (tested)145.9 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Power186.4 kWReference
StarterelectricReference
Starter volts12Reference
Oil change600 hReference
Max power191.2 kWReference
Power at rated engine speed174.5 kWReference
Max power145.9 kWReference
Transmission
continuously variable transmissionReference
TransmissionCMATICReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)182.0 kWReference
PTO (tested)191.2 kWReference
Rear valves4 or 5Reference
Front valves2Reference
Pump flow151.4 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed189.0 kWReference
Dimensions
Weight10553 kgReference
Operating weight10553 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel IVT 4WDSeptember 14 - 29, 2017Link: OCED Tractor Test 2182 fileReference
PTO performanceReference
Fuel use50.3 l/hourReference
Fuel use49.2 l/hourReference
Fuel use50.7 l/hourReference
Drawbar performanceReference
Fuel use48.8 l/hourReference
Pull at 9 KPHReference
Max pull9686 kgReference
Pull at 4 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
