Tractor · 2011Unverified

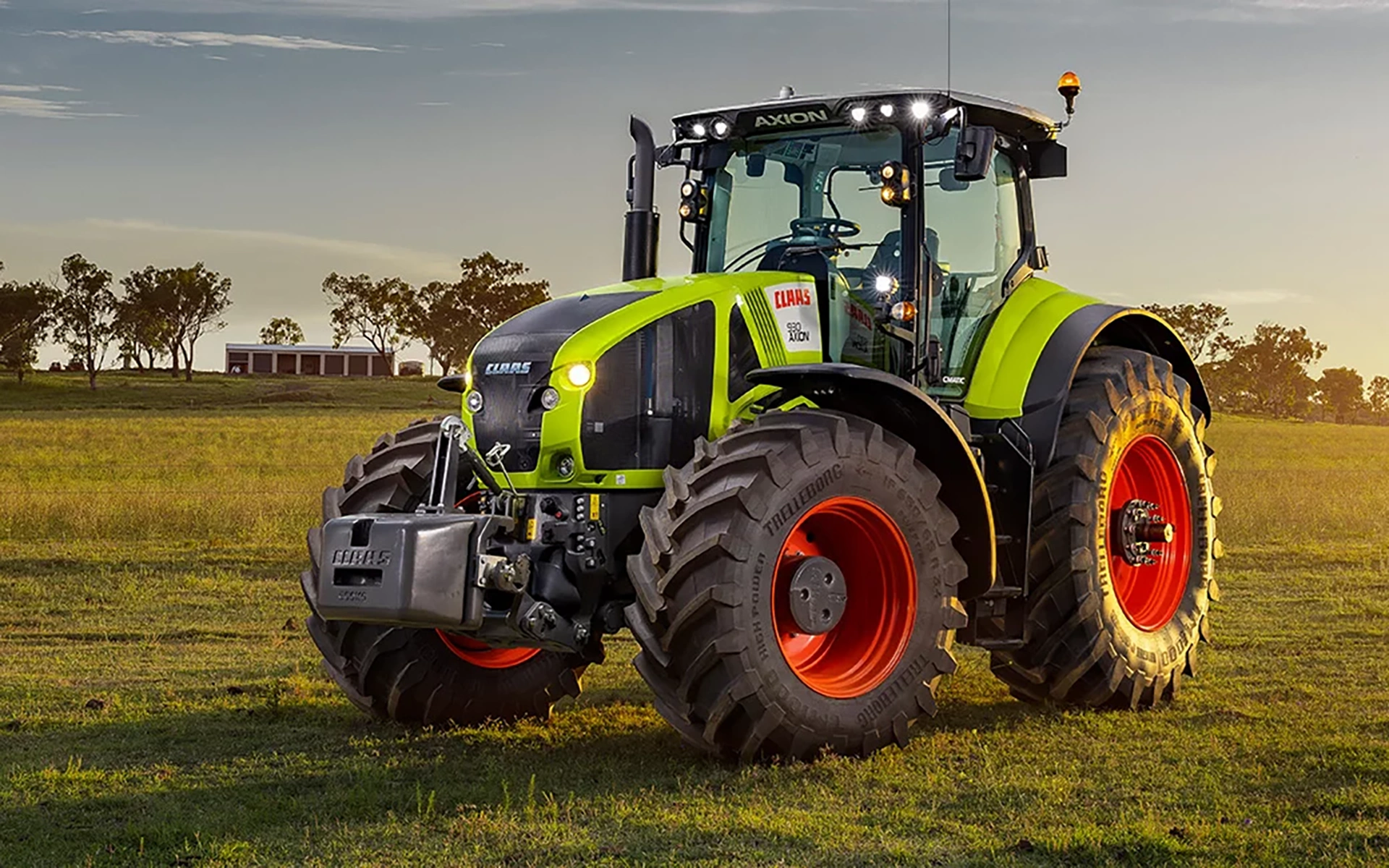

Claas Axion 920
Claas Axion 920 — Model year 2011-20172018-2025 · 317 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
317 hp
Weight
12840 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
FPT 8.7L 6-cyl dieselReference
Engine (gross)236.0 kWReference
Engine (max)235.0 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Rated Power (gross)236.0 kWReference
Rated Power (gross)232.0 kWReference
Maximum Power (gross)235.0 kWReference
Rated RPM2150Reference
Torque1350.2 NmReference
Torque RPM1600Reference
Oil change600 hReference
Transmission
continuously variable transmissionReference
TransmissionCMATICReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeload sensingReference
Pump flow149.9 lpmReference
Pump flow219.9 lpmReference
Rear TypeIII/IVReference
Rear lift (at ends)7520 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540E/1000Reference
Rear PTO Type1000E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase314 cmReference
Weight12840 kgReference
Front tire620/75R30Reference
Rear tire710/85R38Reference
Standard tires (ag)Front: 620/75R30. Rear: 710/85R38Reference
Length559 cmReference
Height (cab)344 cmReference
Max weight18000 kgReference
Clearance (front axle)64 cmReference
Clearance (rear axle)61 cmReference
Flange rear axleReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
