Tractor · 2011Unverified

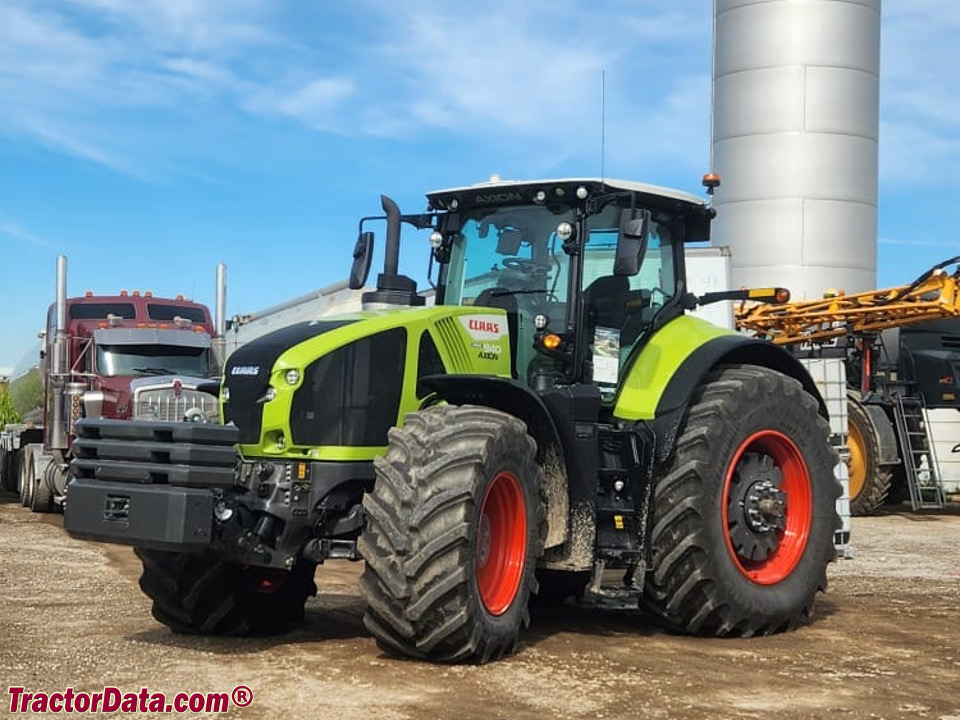

Claas Axion 940

Name: Claas Axion 940
Brand: Claas

Claas Axion 940 — Model year 2011-20172018-2025 · 378 hp. Reference specifications; pending source verification.

The Claas Axion 940 is a high-powered tractor, rated at 378 hp, which positions it at the more powerful end of its class. It was in production from 2011 to 2025. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its operating weight is listed at 13,060 kg and it is suitable for operations spanning 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

378 hp

Max power

385 hp

Weight

13060 kg

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

378 hp

Recorded weight

13060 kg

Production years

2011-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

FPT 8.7L 6-cyl dieselReference

Engine (gross)282.0 kWReference

Engine (max)279.0 kWReference

FPTReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.7 LReference

Bore/Stroke117 x 135 mmReference

EmissionsTier IVReference

Rated Power (gross)282.0 kWReference

Rated Power (gross)276.0 kWReference

Maximum Power (gross)279.0 kWReference

Rated RPM2150Reference

Torque1550.2 NmReference

Torque RPM1600Reference

Oil change600 hReference

Fuel TypeDieselReference

Rated engine speed2,080 rpmReference

Cooling systemVisctronic fanReference

Transmission

continuously variable transmissionReference

TransmissionCMATICReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeload sensingReference

Pump flow149.9 lpmReference

Pump flow219.9 lpmReference

Rear TypeIII/IVReference

Rear lift (at ends)7690 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Rear PTO Type540E/1000Reference

Rear PTO Type1000E/1000Reference

Front PTO Type1000Reference

Dimensions

Wheelbase314 cmReference

Weight13060 kgReference

Front tire620/75R30Reference

Rear tire710/85R38Reference

Standard tires (ag)Front: 620/75R30. Rear: 710/85R38Reference

Length559 cmReference

Height (cab)344 cmReference

Max weight18000 kgReference

Clearance (front axle)64 cmReference

Clearance (rear axle)61 cmReference

Capacities

Capacity8.7 LReference

Fuel tank643.5 LReference

Diesel exhaust fluid (DEF) tank56.8 LReference

Power

Max Power385 hpReference

Rated Power380 hpReference

PTO

PTO Power334 hpReference

Front PTO PowerTrueReference

General

Cruise controlAvailableReference

Hydraulics

Pump Rated Output (total)219.6 l/minReference

Front Hitch lift capacity beyond lift points4,999.9 kgReference

Dimensions & weight

Overall Height241.3 cmReference

Overall Length574 cmReference

Overall weight13,999.7 kgReference

Operator station

Cab AvailabilityTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
