Tractor · 2011Unverified

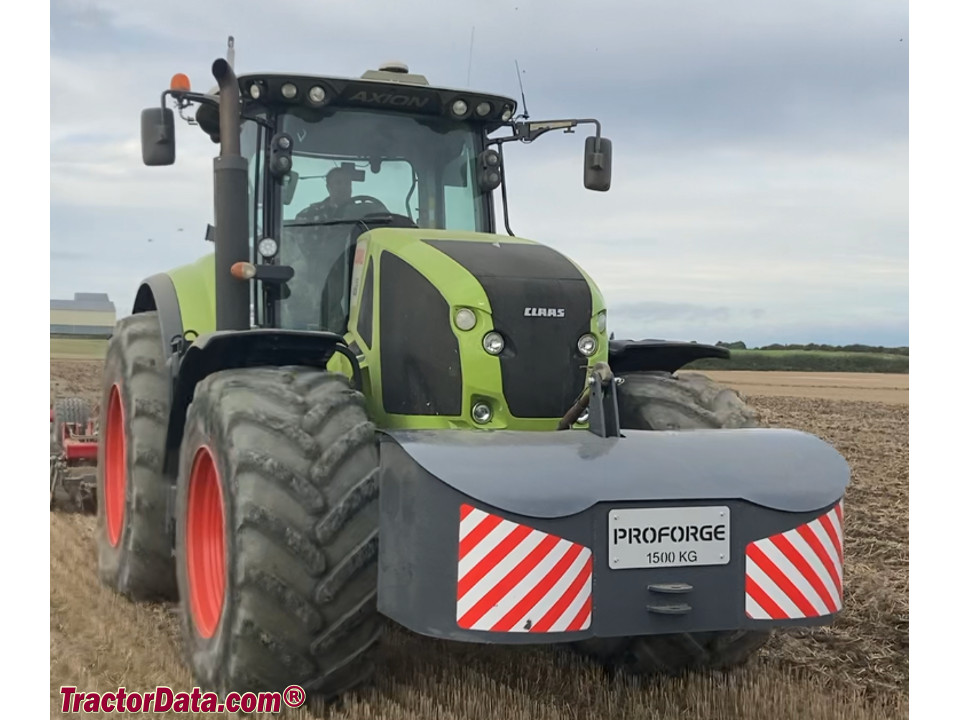

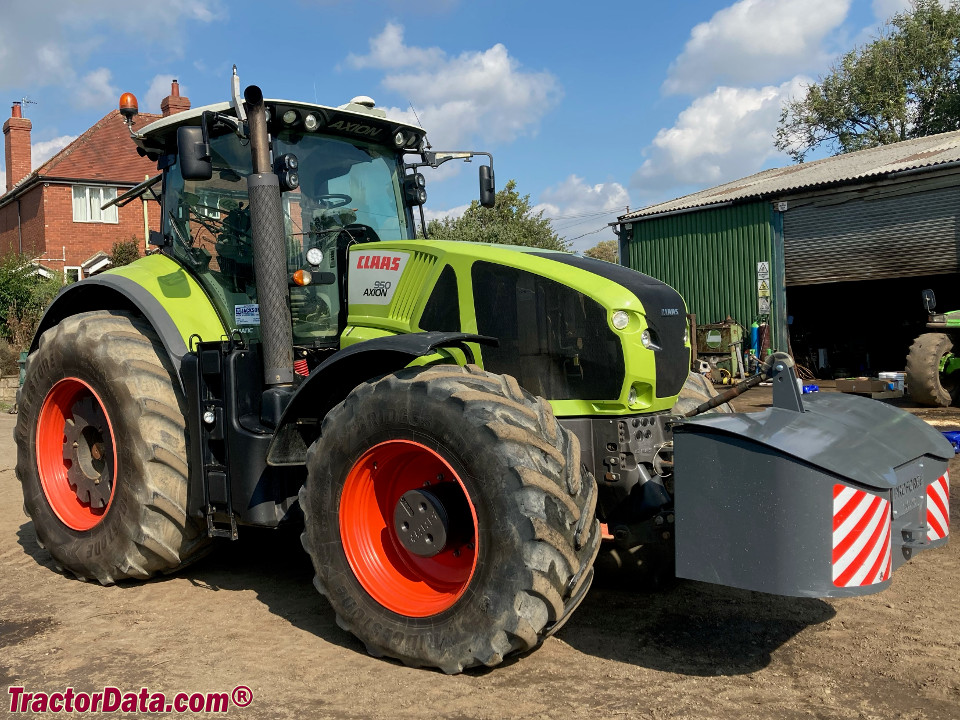

Claas Axion 950

Claas Axion 950 — Model year 2011-20172018-2025 · 410 hp. Reference specifications; pending source verification.

The Claas Axion 950 is a tractor with a rated output of 410 hp, categorising it within the higher-powered segment of its class. Manufactured from 2011 to 2025, this model is powered by a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a continuously variable transmission. The listed weight of the Claas Axion 950 is 13060 kg, making it suitable for large-scale operations of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
410 hp
Max power
410 hp
Weight
13060 kg

Catalogue coverage

Variants represented
2
Richest spec table
65 rows
Recorded power
410 hp
Recorded weight
13060 kg
Production years
2011-2025
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference

Engine

FPT 8.7L 6-cyl dieselReference
Engine (gross)306.0 kWReference
Engine (max)302.0 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
EmissionsTier IVReference
Rated Power (gross)306.0 kWReference
Rated Power (gross)298.0 kWReference
Maximum Power (gross)302.0 kWReference
Rated RPM2150Reference
Torque1650.3 NmReference
Torque RPM1600Reference
Oil change600 hReference
Fuel TypeDieselReference
Rated engine speed2,080 rpmReference

Transmission

continuously variable transmissionReference
TransmissionCMATICReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
Transmission TypeCVTReference
Wheel Drive4WDReference

PTO & Hydraulics

Typeload sensingReference
Pump flow149.9 lpmReference
Pump flow219.9 lpmReference
Rear TypeIII/IVReference
Rear lift (at ends)7690 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540E/1000Reference
Rear PTO Type1000E/1000Reference
Front PTO Type1000Reference

Dimensions

Wheelbase314 cmReference
Weight13060 kgReference
Front tire620/75R30Reference
Rear tire710/85R38Reference
Standard tires (ag)Front: 620/75R30. Rear: 710/85R38Reference
Length559 cmReference
Height (cab)344 cmReference
Max weight18000 kgReference
Clearance (front axle)64 cmReference
Clearance (rear axle)61 cmReference

Capacities

Capacity8.7 lReference
Fuel tank643.5 LReference
Diesel exhaust fluid (DEF) tank56.8 LReference

Power

Max Power410 hpReference
Rated Power405 hpReference

PTO

PTO Power357 hpReference
Front PTO PowerTrueReference

General

Cruise controlAvailableReference

Hydraulics

Pump Rated Output (total)219.6 l/minReference
Front Hitch lift capacity beyond lift points4,999.9 kgReference

Dimensions & weight

Overall Height241.3 cmReference
Overall Length574 cmReference
Overall weight13,999.7 kgReference

Operator station

Cab AvailabilityTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
