Tractor · 2008Unverified

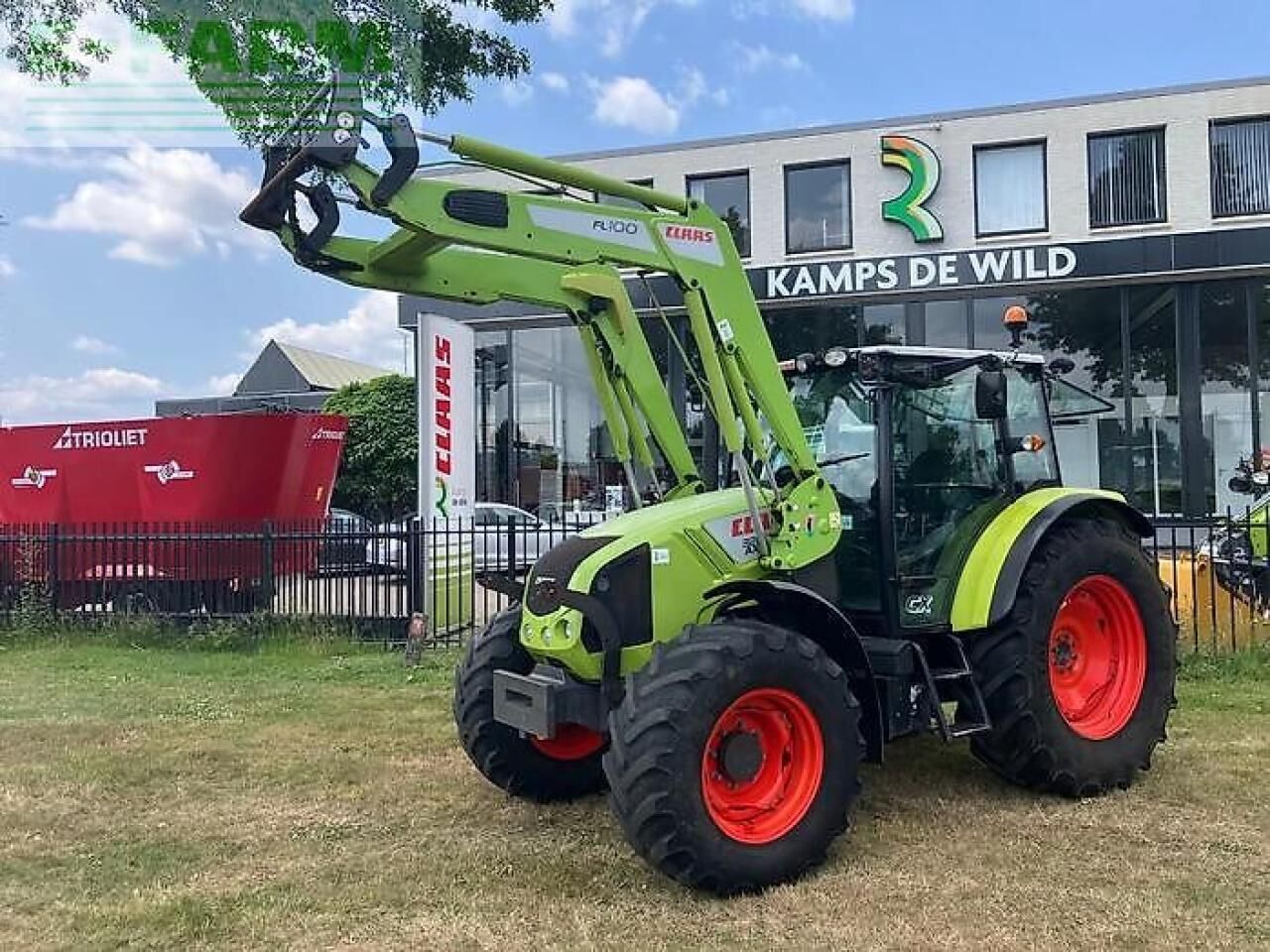

Claas Axos 310 C
Claas Axos 310 C — Axos Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Hover a source tag to verify
Overview
ManufacturerClaasReference
Utility tractorReference
Built in Le Mans, FranceReference
Four-wheel driveReference
Cab standard with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional.Reference
Variants
310Cbase modelReference
10CLdeluxeReference
310CXpremiumReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank145.0 LReference
Engine55.9 kWReference
Perkins 1104D-44TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier 3Reference
Power55.9 kWReference
Rated RPM2200Reference
Torque307.0 NmReference
Torque RPM1500Reference
Oil change500 hReference
Transmission
10-speed synchronized reverseReference
20-speed synchronized reverseReference
Typesynchronized reverseReference
Gears10 forward and reverseReference
Mechanical reduction to double available speeds.Reference
Gears20 forward and reverseReference
PTO & Hydraulics
Valvesup to 3Reference
Total flow60.2 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2899 kgReference
Front HitchoptionalReference
Front lift2800 kgReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E (optional)Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase248 cmReference
Front tire11.2R24Reference
Rear tire16.9R30Reference
Ag front11.2R24Reference
Ag rear16.9R30Reference
Length418 cmReference
Ground clearance39 cmReference
Ground clearance41 cmReference
Claas Axos 310 C Height
ROPS257 cmReference
ROPS191 cmReference
Cab242 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
