Tractor · 2008Unverified

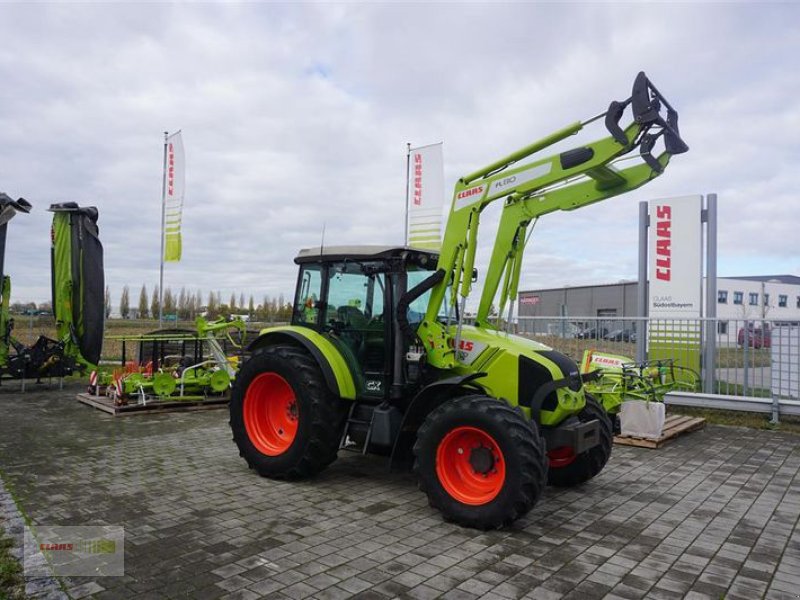

Claas Axos 320 CX
Claas Axos 320 CX — Axos Series · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Hover a source tag to verify
Overview
ManufacturerClaasReference
Utility tractorReference
Built in Le Mans, FranceReference
Four-wheel driveReference
High-profile cab standard (low-profile optional) with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional.Reference
Variants
320Cbase modelReference
320CLdeluxeReference
320CXpremiumReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank145.0 LReference
Engine64.9 kWReference
Perkins 1104D-44TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier 3Reference
Power64.9 kWReference
Rated RPM2200Reference
Torque373.0 NmReference
Torque RPM1500Reference
Oil change500 hReference
Transmission
20-speed partial power shift with power shuttleReference
30-speedReference
TransmissionTwinshift RevershiftReference
Typepartial power shift with power shuttleReference
Gears20 forward and reverseReference
Adds creeper range to standard transmission. Clutchless reverser for direction changes. Declutching button on gearstick. Two-range power shift.Reference
TransmissionTwinshift Revershift with creeperReference
Gears30 forward and reverseReference
PTO & Hydraulics
Valvesup to 3Reference
Total flow60.2 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2899 kgReference
Front HitchoptionalReference
Front lift2800 kgReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E (optional)Reference
Rear PTO Type540/540E/1000 (optional)Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Dimensions
Wheelbase248 cmReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length418 cmReference
Ground clearance44 cmReference
Ground clearance46 cmReference
Claas Axos 320 CX Height
ROPS262 cmReference
ROPS196 cmReference
Cab247 cmReference
Cab262 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
