Tractor · 2008Unverified

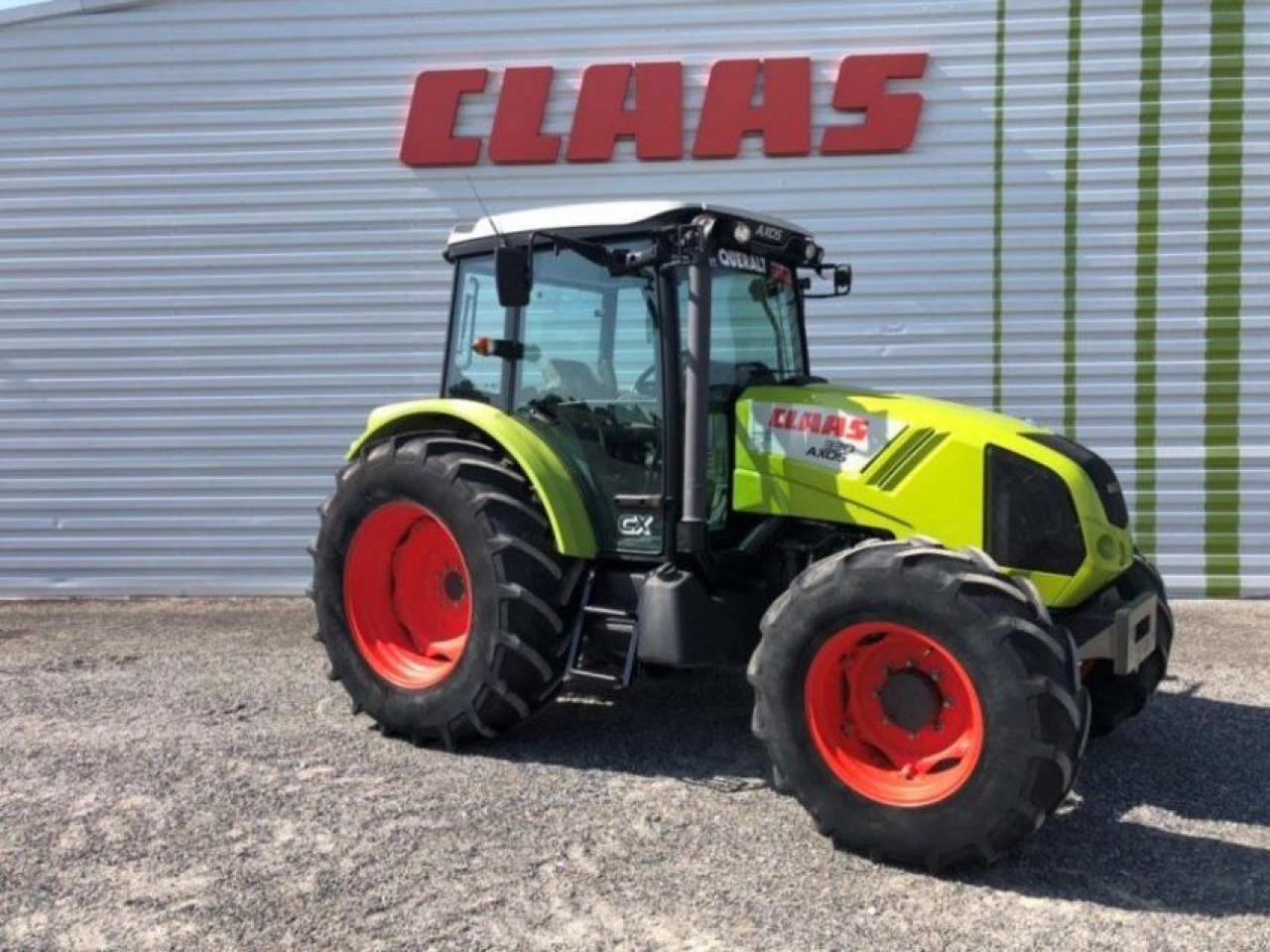

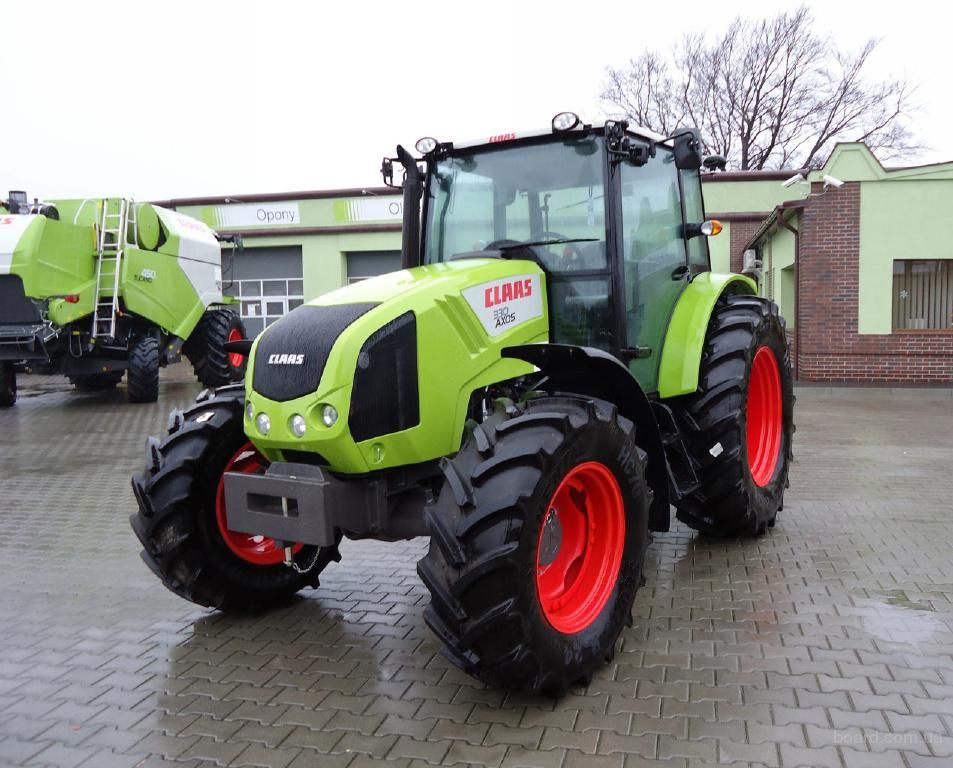

Claas Axos 330 C

Name: Claas Axos 330 C
Brand: Claas

Claas Axos 330 C — Axos Series · 92 hp. Reference specifications; pending source verification.

The Claas Axos 330 C is a mid-range tractor model, rated at approximately 92 hp. It was manufactured in 2008. The tractor is equipped with a 4-cylinder turbocharged, intercooled diesel engine, which is liquid-cooled and paired with four-wheel drive and a 10-speed gearbox. It is designed for operations covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

92 hp

Max power

92 hp

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

92 hp

Transmissions

10-speed synchronized reverse

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Utility tractorReference

Built in Le Mans, FranceReference

Four-wheel driveReference

Cab standard with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional.Reference

Variants

330Cbase modelReference

330CLdeluxreReference

330CXpremiumReference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank145.0 LReference

Engine68.6 kWReference

Perkins 1104D-44TAReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier 3Reference

Power68.6 kWReference

Rated RPM2200Reference

Torque393.1 NmReference

Torque RPM1500Reference

Oil change500 hReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier 3Reference

Engine torque at rated speed131.5 kgReference

Bore and stroke4.134x5.00 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

10-speed synchronized reverseReference

20-speed synchronized reverseReference

Typesynchronized reverseReference

Gears10 forward and reverseReference

Mechanical reduction to double available speeds.Reference

Gears20 forward and reverseReference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Valvesup to 3Reference

Total flow60.2 lpmReference

Rear TypeIIReference

Rear TypeIII/II (optional)Reference

Rear lift (at 24"/610mm)2899 kgReference

Front HitchoptionalReference

Front lift2800 kgReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E (optional)Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase248 cmReference

Front tire13.6R24Reference

Rear tire16.9R34Reference

Ag front13.6R24Reference

Ag rear16.9R34Reference

Length418 cmReference

Ground clearance44 cmReference

Ground clearance46 cmReference

Claas Axos 330 C Height

ROPS262 cmReference

ROPS196 cmReference

Cab247 cmReference

General

Make & ModelClaasReference

Country of manufacturerFranceReference

Capacities

Capacity268.5 ciReference

Power

Max Power92 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Hydraulics

Pump Rated Output (total)15.9 gpmReference

Remote Valvesup to 3 ValvesReference

Rear Hitch category (SAE designation)Category II | Category III/II (optional)Reference

Dimensions & weight

Height Over Cab247.7 cmReference

Height Over ROPS262.1 cmReference

Overall Length418.1 cmReference

Wheels & tyres

Rear Wheel Type16.9R34Reference

Front Wheel Type13.6R24Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
