Tractor · 2008Unverified

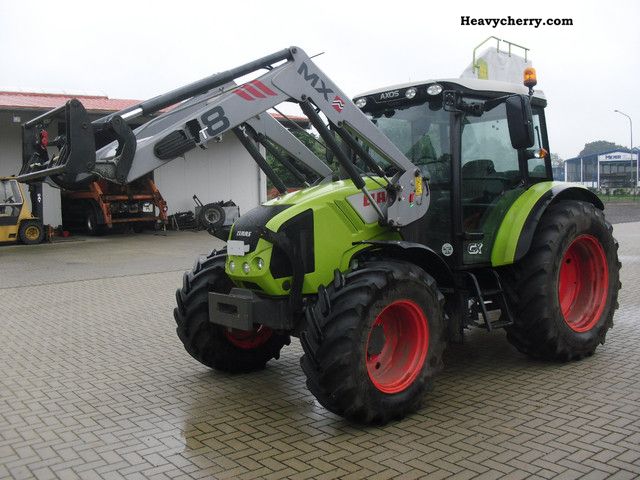

Claas Axos 330 CX

Name: Claas Axos 330 CX
Brand: Claas

Claas Axos 330 CX — Axos Series · 92 hp. Reference specifications; pending source verification.

The Claas Axos 330 CX is a tractor with a rated output of 92 hp, positioning it in the middle of its class in terms of power. It was manufactured in 2008. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, transmitting power through four-wheel drive with a powershift transmission. Its capabilities extend to working on land areas ranging from approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

92 hp

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

92 hp

Transmissions

20-speed partial power shift with power shuttle

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Utility tractorReference

Built in Le Mans, FranceReference

Four-wheel driveReference

High-profile cab standard (low-profile optional) with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional.Reference

Variants

330Cbase modelReference

330CLdeluxreReference

330CXpremiumReference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank145.0 LReference

Engine68.6 kWReference

Perkins 1104D-44TAReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier 3Reference

Power68.6 kWReference

Rated RPM2200Reference

Torque393.1 NmReference

Torque RPM1500Reference

Oil change500 hReference

Transmission

20-speed partial power shift with power shuttleReference

30-speedReference

TransmissionTwinshift RevershiftReference

Typepartial power shift with power shuttleReference

Gears20 forward and reverseReference

Adds creeper range to standard transmission. Clutchless reverser for direction changes. Declutching button on gearstick. Two-range power shift.Reference

TransmissionTwinshift Revershift with creeperReference

Gears30 forward and reverseReference

PTO & Hydraulics

Valvesup to 3Reference

Total flow60.2 lpmReference

Rear TypeIIReference

Rear TypeIII/II (optional)Reference

Rear lift (at 24"/610mm)2899 kgReference

Front HitchoptionalReference

Front lift2800 kgReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E (optional)Reference

Rear PTO Type540/540E/1000 (optional)Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase248 cmReference

Front tire13.6R24Reference

Rear tire16.9R34Reference

Ag front13.6R24Reference

Ag rear16.9R34Reference

Length418 cmReference

Ground clearance44 cmReference

Ground clearance46 cmReference

Claas Axos 330 CX Height

ROPS262 cmReference

ROPS196 cmReference

Cab247 cmReference

Cab262 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
