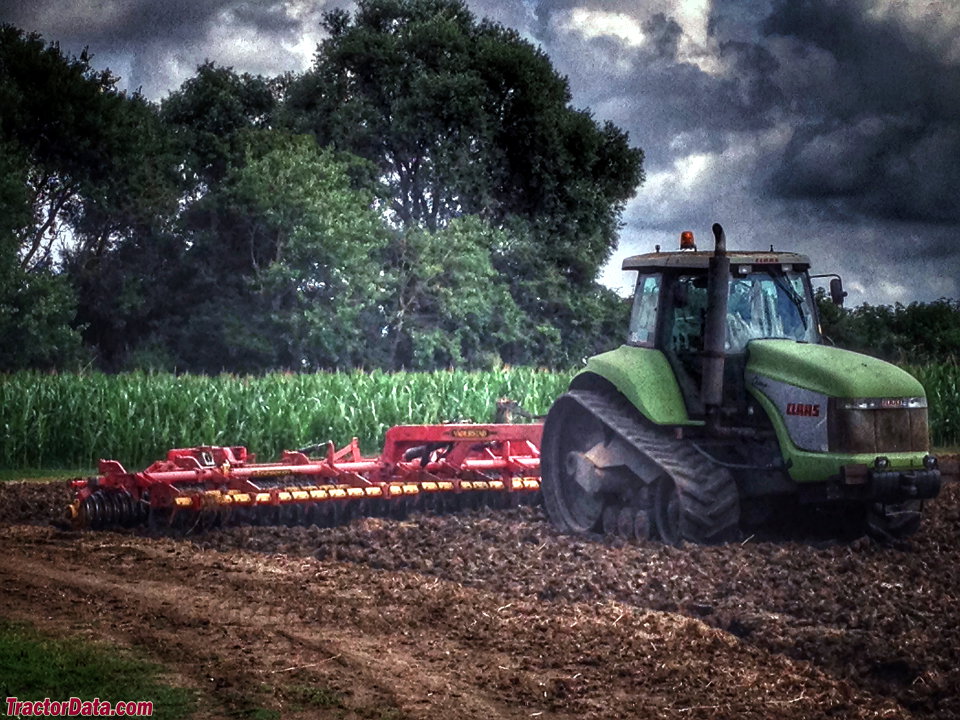

Claas Challenger 35
Claas Challenger 35 — Agricultural Crawler tractor · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Weight
10098 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Agricultural Crawler tractorReference
Original price was $118,875 in 1998Reference
DrivecrawlerReference
Steeringdifferential powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 6.6L 6-cyl dieselReference
Fuel tank321.7 LReference
Fuel tank473.1 LReference
Engine156.6 kWReference
Drawbar (claimed)111.9 kWReference
Caterpillar 3116Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke105 x 127 mmReference
Power156.6 kWReference
Rated RPM2100Reference
Starter volts12Reference
Coolant capacity32.6 LReference
Transmission
16-speed full power shiftReference
32-speed creeperReference
Typefull power shiftReference
Gears16 forward and 9 reverseReference
TypecreeperReference
Gears32 forward and 18 reverseReference
PTO & Hydraulics
PTO (claimed)130.5 kWReference
Typevariable-displacement load-sensing pressure-compensatedReference
Pressure189.6 barReference
Valves3 or 4Reference
Pump flow118.1 lpmReference
Rear TypeIII/IIReference
Controldraft controlReference
Rear lift5670 kgReference
Rear lift6804 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1900Reference
Dimensions
Wheelbase218 cmReference
Weight10098 kgReference
16-inch tracksReference
Length535 cmReference
Width231 cmReference
Height (cab)304 cmReference
Height (exhaust)317 cmReference
Gauge152/172/182/193/203/223/228 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Claas 35 Tracks
Width40 cmReference
Width45 cmReference
Width50 cmReference
Width63 cmReference
Width81 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
