Tractor · Unverified

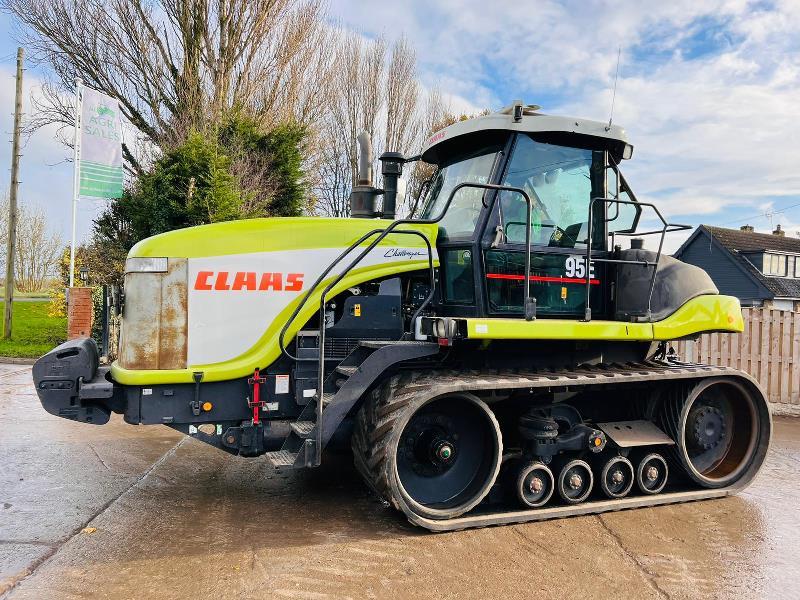

Claas Challenger 95E
Claas Challenger 95E — Agricultural Crawler tractor · 306 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
306 hp
Max power
254.9 kW
Weight
16111 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Agricultural Crawler tractorReference
Original price$238,000Reference
DrivecrawlerReference
Steeringhydrostatic differential steeringReference
Hydraulic caliper disc brakesReference
Cab standardReference
Engine
Caterpillar 11.9L 6-cyl dieselReference
Fuel tank1059.8 LReference
Engine305.7 kWReference
Drawbar (tested)244.4 kWReference
CaterpillarReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement11.9 LReference
Bore/Stroke130 x 150 mmReference
Power305.7 kWReference
Air cleanerdual paper elements with aspiratorReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Coolant capacity75.7 LReference
Max power254.9 kWReference
Power at rated engine speed228.1 kWReference
Max power244.4 kWReference
Transmission
10-speed full power shiftReference
Typefull power shiftReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)225.2 kWReference
PTO (tested)254.9 kWReference
Typeclosed centerReference
Valves4Reference
Total flow151.4 lpmReference
Rear PTO Type1000Reference
Power at rated PTO speed228.4 kWReference
Dimensions
Wheelbase271 cmReference
Weight16111 kgReference
25-inch tracksReference
Operating weight16111 kgReference
Claas 95E Tracks
Width63 cmReference
Test results
Diesel 10-speed crawlerMay 19 - June 2, 1998Link: OCED Tractor Test 1751 fileReference
PTO performanceReference
Fuel use63.6 l/hourReference
Fuel use60.9 l/hourReference
Fuel use60.2 l/hourReference
Drawbar performanceReference
Fuel use72.7 l/hourReference
Gear 5 used for power test.Reference
Max pull15967 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
