Tractor · 2009Unverified

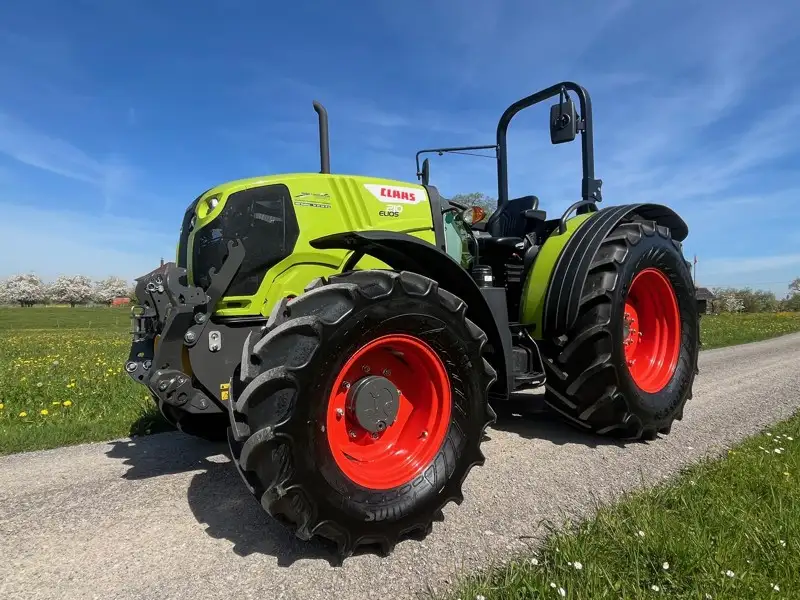

Claas Elios 210

Name: Claas Elios 210
Brand: Claas

Claas Elios 210 — Model year 2009-20132014-2020 · 72 hp. Reference specifications; pending source verification.

The Claas Elios 210 is a tractor with an engine rating of approximately 72 hp, placing it within the mid-range of its class. Production of the Elios 210 took place from 2009 to 2020. It features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The tractor is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Max power

73.8 hp

Weight

5,100.2 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

72 hp

Transmissions

12-speed mechanical shuttle

Production years

2009-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab available with air-conditioning.Reference

Engine

FPT 3.2L 4-cyl dieselReference

Engine53.7 kWReference

FPTReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

EmissionsTier 3Reference

Power53.7 kWReference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,300 RPMReference

Emissions complianceStage IIIBReference

Engine torque at rated speed103.4 kgReference

Bore and stroke3.90x4.33 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed mechanical shuttleReference

24-speed mechanical shuttleReference

24-speed two-speed power shiftReference

24-speed power shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four gears in three ranges with mechanical shuttle.Reference

Gears24 forward and reverseReference

Four gears in three ranges with mechanical shuttle. Mechanical two-speed splitter for each gear.Reference

TransmissionTWINSHIFTReference

Typetwo-speed power shiftReference

TransmissionTWINSHIFT REVERSHIFTReference

Typepower shuttleReference

Transmission TypeMechanical ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Valvesup to 4Reference

Total flow59.0 lpmReference

Total flow85.2 lpmReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Dimensions

Front tire7.50-16Reference

2WD Rear tire12.4R36Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4R36Reference

4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference

Claas Elios 210 attachments

front-end loaderReference

Attachment overview

Claas FL 40C loaderReference

Claas FL 60C loaderReference

General

Make & ModelClaasReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity195.3 ciReference

Fuel tank90.1 LReference

Hydraulics

Capacity Valves8 valveReference

Remote Valvesup to 4 ValvesReference

Rear Hitch maximum lift capacity3,240 kgReference

Power

Max Power73.8 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Dimensions & weight

Wheelbase215.4 cmReference

Height Over Cab237 cmReference

Overall Length381.5 cmReference

Overall weight3,309.9 kgReference

Weight5,100.2 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
