Tractor · 2014Unverified

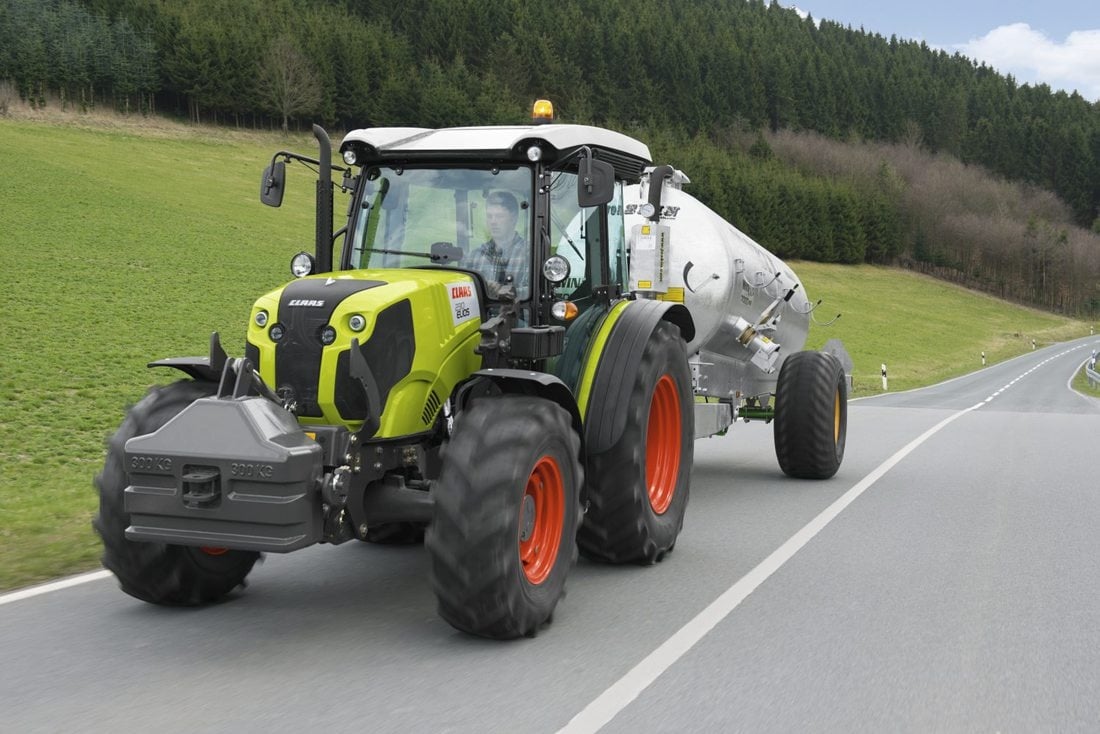

Claas Elios 240

Name: Claas Elios 240
Brand: Claas

Claas Elios 240 — Elios Series · 97 hp. Reference specifications; pending source verification.

The Claas Elios 240 is a tractor with a rated output of 97 hp, positioning it in the middle of its class in terms of power. Produced from 2014 to 2020, this model is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. The listed weight of the Claas Elios 240 is 3309 kg, and it is designed for tasks on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

97 hp

Max power

96.6 hp

Weight

3309 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

97 hp

Recorded weight

3309 kg

Transmissions

24-speed power shuttle

Production years

2014-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab available with air-conditioning.Reference

Engine

FPT 3.4L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine72.0 kWReference

FPTReference

turbocharged intercooled dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsStage IIIBReference

Power72.0 kWReference

Rated RPM2300Reference

Torque406.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,300 RPMReference

Emissions complianceStage IIIBReference

Engine torque at rated speed135.9 kgReference

Bore and stroke3.90x4.33 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speed power shuttleReference

TransmissionTWINSHIFT REVERSHIFTReference

Typepower shuttleReference

Gears24 forward and 12 reverseReference

Two-speed power shift with power shuttle.Reference

Transmission TypePower ShuttleReference

forward and reverse optionspower shuttle - 24F and 12RReference

Wheel Drive4WDReference

PTO & Hydraulics

Valves2 to 4Reference

Pump flow59.0 lpmReference

Pump flow85.2 lpmReference

Rear lift3240 kgReference

Front lift2800 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type540EReference

Front PTO Type1000Reference

Dimensions

Wheelbase215 cmReference

Weight3309 kgReference

Length381 cmReference

Height (cab)236 cmReference

Max weight5100 kgReference

Claas Elios 240 attachments

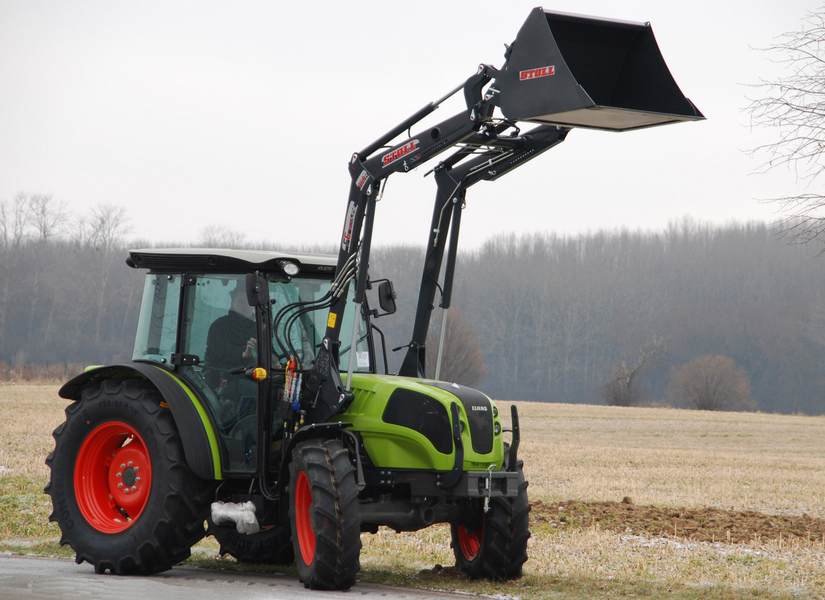

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Claas FL 40C loaderReference

Claas FL 60C loaderReference

General

Make & ModelClaasReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity207.5 ciReference

Hydraulics

Capacity Valves8 valveReference

Remote Valves2 to 4 ValvesReference

Rear Hitch maximum lift capacity3,240 kgReference

Power

Max Power96.6 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab237 cmReference

Overall Length381.5 cmReference

Overall weight3,309.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
