Tractor · 2023Unverified

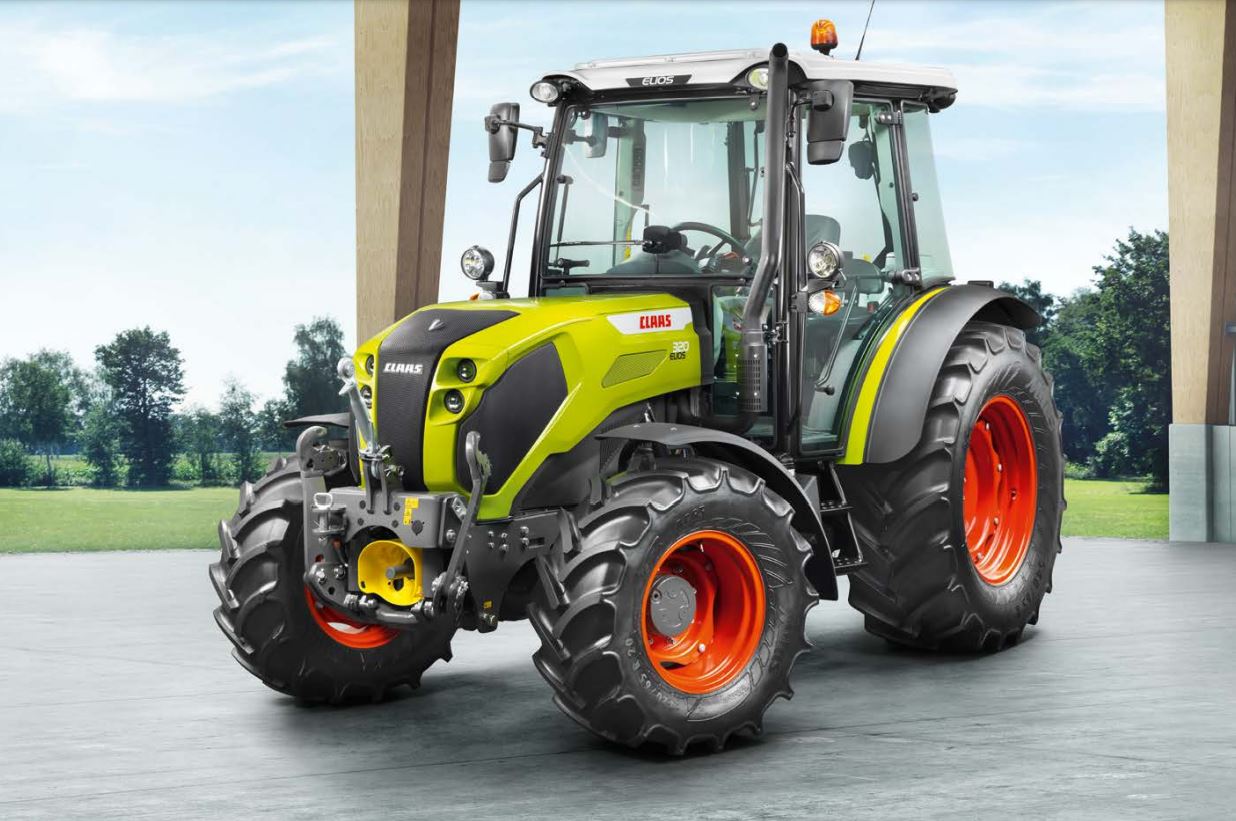

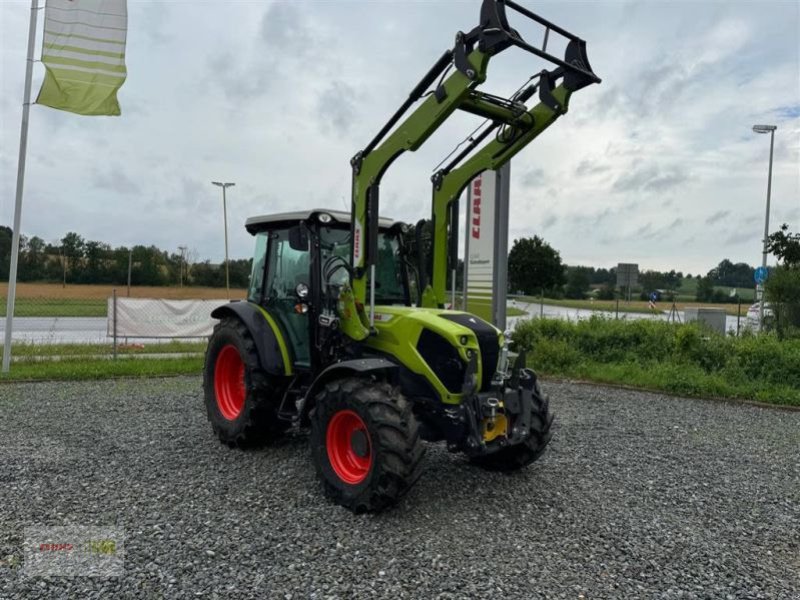

Claas Elios 320

Name: Claas Elios 320
Brand: Claas

Claas Elios 320 — Elios Series · 83 hp. Reference specifications; pending source verification.

The Claas Elios 320 is a tractor with an 83 hp rated output, placing it in the middle of its class for power. It features a 4-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive via a powershift transmission. The tractor's listed weight is 3635 kg. It is designed for use on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

83 hp

Weight

3635 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

83 hp

Recorded weight

3635 kg

Transmissions

30-speed two-speed power shift

Production years

2023-2023

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorClaasReference

ManufacturerCarraroReference

Utility tractorReference

Built in Rovigo, ItalyReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with heat. Optional air-conditioning.Reference

Engine

FPT 3.6L 4-cyl dieselReference

Fuel tank104.8 LReference

Exhaust fluid (DEF)9.8 LReference

Engine (gross)61.9 kWReference

Engine (max)63.4 kWReference

FPTReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke102 x 110 mmReference

Rated Power (gross)61.9 kWReference

Maximum Power (gross)63.4 kWReference

Rated RPM2300Reference

Torque333.6 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

30-speed two-speed power shiftReference

Typetwo-speed power shiftReference

Gears30 forward and 15 reverseReference

PTO & Hydraulics

Pressure190.0 barReference

Valves2 or 3Reference

Pump flow60.0 lpmReference

Pump flow87.1 lpmReference

Total flow87.1 lpmReference

Total flow113.9 lpmReference

Steering flow26.9 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)2330 kgReference

Front HitchIIReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase228 cmReference

Weight3635 kgReference

Length404 cmReference

Width164 cmReference

Height (cab)262 cmReference

Max weight5200 kgReference

Clearance (front axle)34 cmReference

Clearance (rear axle)46 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
