Tractor · 2004Unverified

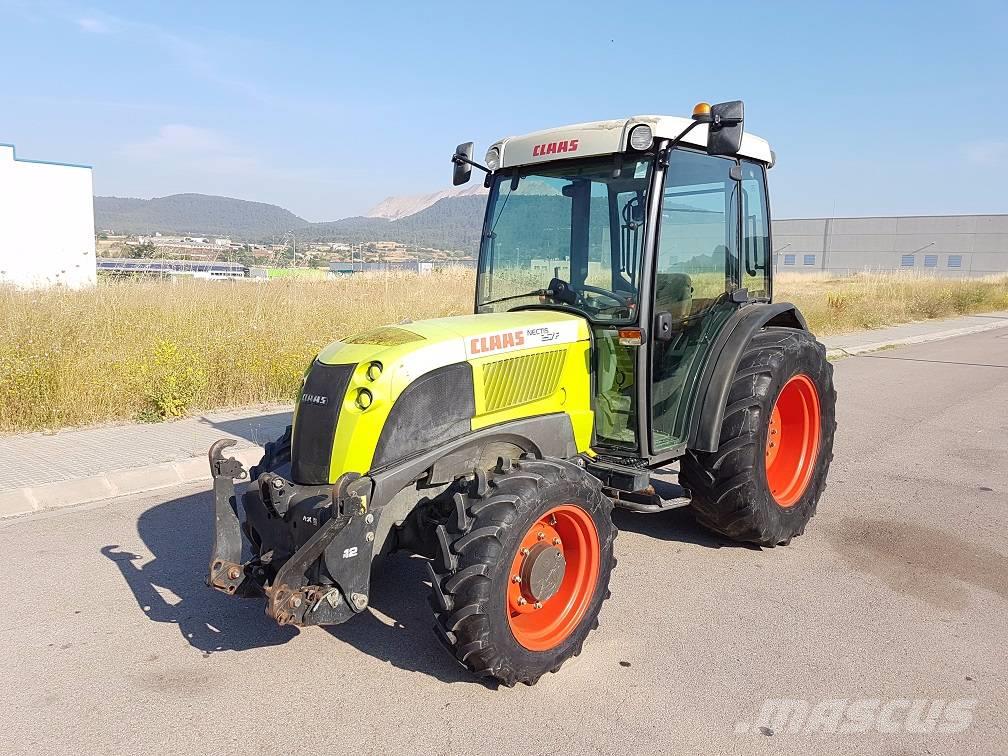

Claas Nectis 257
Claas Nectis 257 — Nectis Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
6196 to 6527 pounds
Hover a source tag to verify
Overview
ManufacturerClaasReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Wet disc brakesReference
optionalReference
Engine
4.5L 4-cylReference
Fuel tank68.1 LReference
Engine67.1 kWReference
NEF F4CE0454CReference
turboReference
4-cylinderReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power67.1 kWReference
Rated RPM2300Reference
Torque366.1 NmReference
Torque RPM1400Reference
Transmission
12-speedReference
24-speedReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
PTO & Hydraulics
Total flow48.1 lpmReference
Rear lift3140 kgReference
Rear PTO Type540/750/groundReference
Dimensions
Wheelbase218 cmReference
Weight6196 to 6527 poundsReference
Front tire6.50-16Reference
Rear tire14.9R28Reference
Ag front6.50-16Reference
Ag rear14.9R28Reference
Ag front280/70R20Reference
Length414 cmReference
Height241 cmReference
Weight2810 kgReference
Weight2960 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
