Tractor · 2019Unverified

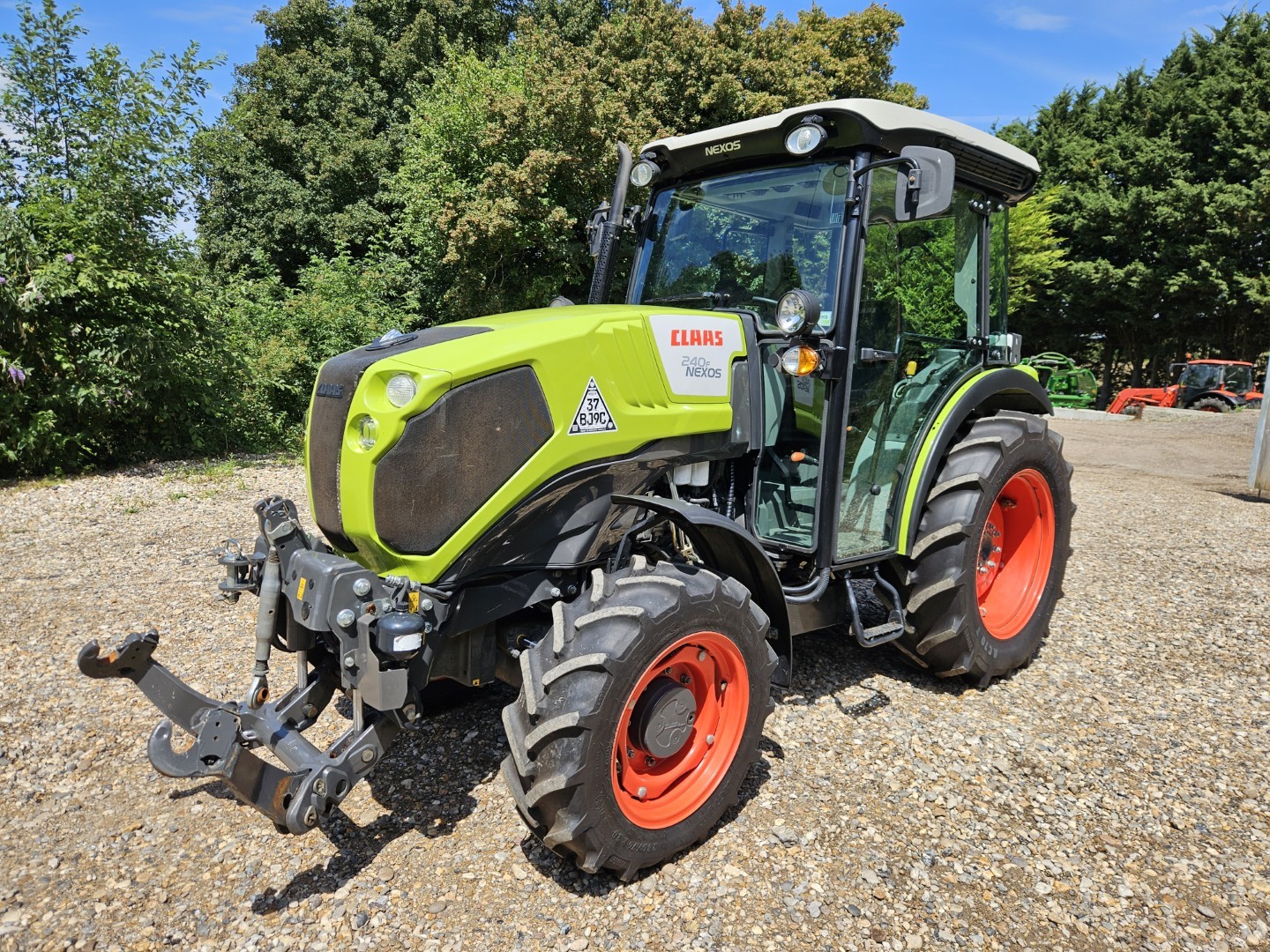

Claas Nexos 240
Claas Nexos 240 — Model year 2019-20232023-2026 · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
6162 to 7055 pounds
Hover a source tag to verify
Overview
DistributorClaasReference
ManufacturerCarraroReference
Orchard/Vineyard tractorReference
Built in Rovigo, ItalyReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Two-post folding ROPS. Cab available with heat. Optional air-conditioning.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank74.9 LReference
Engine (gross)75.3 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Rated Power (gross)75.3 kWReference
Rated RPM2200Reference
Torque429.9 NmReference
Torque RPM1250Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed mechanical shuttleReference
24-speed two-speed power shiftReference
24-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
Typetwo-speed power shiftReference
Typepower shuttleReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure190.0 barReference
Valves2 to 4Reference
Pump flow57.2 lpmReference
Pump flow82.1 lpmReference
Steering flow25.0 lpmReference
Rear TypeIIReference
Rear lift (at ends)2160 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
F Wheelbase216 cmReference
VL Wheelbase218 cmReference
Weight6162 to 7055 poundsReference
Front tire320/70R20Reference
F Rear tire14.9R28Reference
F Standard tires (ag)Front: 320/70R20. Rear: 14.9R28Reference
VL Standard tires (ag)Front: 7.50R18. Rear: 14.9R28Reference
Length407 cmReference
VL ROPS Width125 cmReference
F ROPS Width145 cmReference
VL Cab Width129 cmReference
F Cab Width148 cmReference
F Clearance (front axle)29 cmReference
VL Clearance (front axle)30 cmReference
F Clearance (rear axle)35 cmReference
VL Clearance (rear axle)33 cmReference
F ROPS2965 kgReference
F Cab3200 kgReference
VL ROPS2795 kgReference
VL Cab3109 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity4399 kgReference
Claas Nexos 240 Height
F ROPS247 cmReference
VL ROPS245 cmReference
F Height (Folded ROPS)148 cmReference
VL Height (Folded ROPS)146 cmReference
FB Cab230 cmReference
F Cab232 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
