Tractor · 2023Unverified

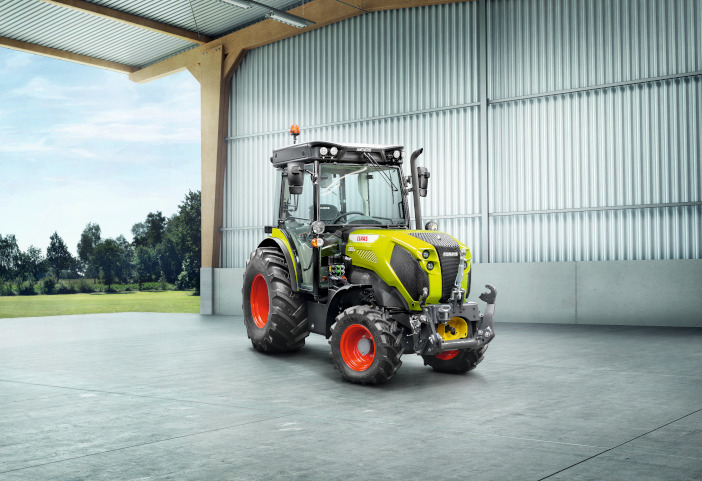

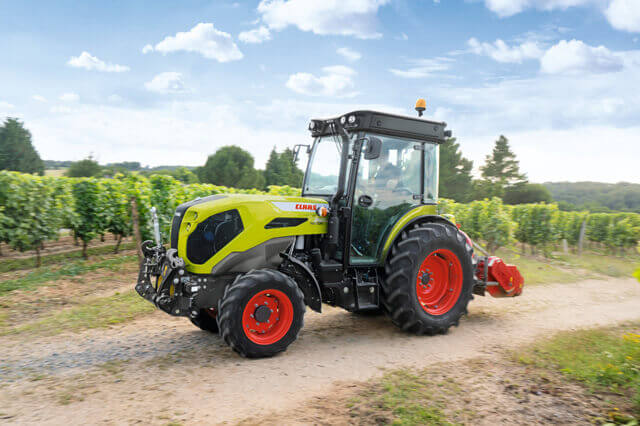

Claas Nexos 260

Name: Claas Nexos 260
Brand: Claas

Claas Nexos 260 — Nexos Series · 120 hp. Reference specifications; pending source verification.

The Claas Nexos 260 is a tractor with a rated power of 120 hp, positioning it at the powerful end of its class. Manufactured in 2023, this model features a 4-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and powershift transmission. The Claas Nexos 260 has an operating weight of 6128.84 to 7572.87 pounds, making it suitable for operations on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Weight

6128.84 to 7572.87 pounds

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

120 hp

Transmissions

12-speed mechanical shuttle

Production years

2023-2023

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorClaasReference

ManufacturerCarraroReference

Orchard/Vineyard tractorReference

Built in Rovigo, ItalyReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab or two-post mid-mount folding ROPS.Reference

Engine

FPT 3.6L 4-cyl dieselReference

Fuel tank74.9 LReference

Fuel tank99.9 LReference

Exhaust fluid (DEF)9.8 LReference

Engine (max)89.5 kWReference

FPTReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke102 x 110 mmReference

Maximum Power (gross)89.5 kWReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

24-speed mechanical shuttleReference

15-speed mechanical shuttleReference

30-speed mechanical shuttleReference

30-speed two-speed power shiftReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

Gears15 forward and reverseReference

Gears30 forward and reverseReference

Typetwo-speed power shiftReference

Gears30 forward and 15 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure190.0 barReference

Valves2 to 4Reference

Pump flow57.2 lpmReference

Pump flow82.1 lpmReference

Steering flow25.0 lpmReference

Rear TypeIIReference

Front HitchIIReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

S Wheelbase217 cmReference

MD Wheelbase211 cmReference

M Wheelbase217 cmReference

LD Wheelbase210 cmReference

L Wheelbase215 cmReference

XL Wheelbase215 cmReference

Weight6128.84 to 7572.87 poundsReference

Length403 cmReference

LD ROPS Length399 cmReference

MD ROPS Length399 cmReference

S Width99 cmReference

MD Width107 cmReference

M Width119 cmReference

LD Width107 cmReference

L Width127 cmReference

XL Width127 cmReference

S 2WD Clearance (front axle)30 cmReference

S 4WD Clearance (front axle)21 cmReference

MD Clearance (front axle)31 cmReference

M Clearance (front axle)22 cmReference

LD Clearance (front axle)31 cmReference

L ROPS Clearance (front axle)37 cmReference

L Cab Clearance (front axle)22 cmReference

XL ROPS Clearance (front axle)37 cmReference

XL Cab Clearance (front axle)22 cmReference

S 2WD Front tread89 to 119 cmReference

S 4WD Front tread98 cmReference

M Front tread110 cmReference

MD Front tread127 cmReference

L Front tread137 cmReference

XL Front tread141 cmReference

LD Front tread148 cmReference

S 2WD3050 kgReference

S 4WD3200 kgReference

MD2780 kgReference

M3285 kgReference

LD2840 kgReference

L ROPS2885 kgReference

L Cab3345 kgReference

XL ROPS2975 kgReference

XL Cab3435 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

S 2WD Max capacity4199 kgReference

S 4WD Max capacity4500 kgReference

MD Max capacity4199 kgReference

M Max capacity4799 kgReference

LD Max capacity4199 kgReference

L ROPS Max capacity4399 kgReference

L Cab Max capacity4799 kgReference

XL ROPS Max capacity4399 kgReference

XL Cab Max capacity4799 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
