Tractor · 2013Unverified

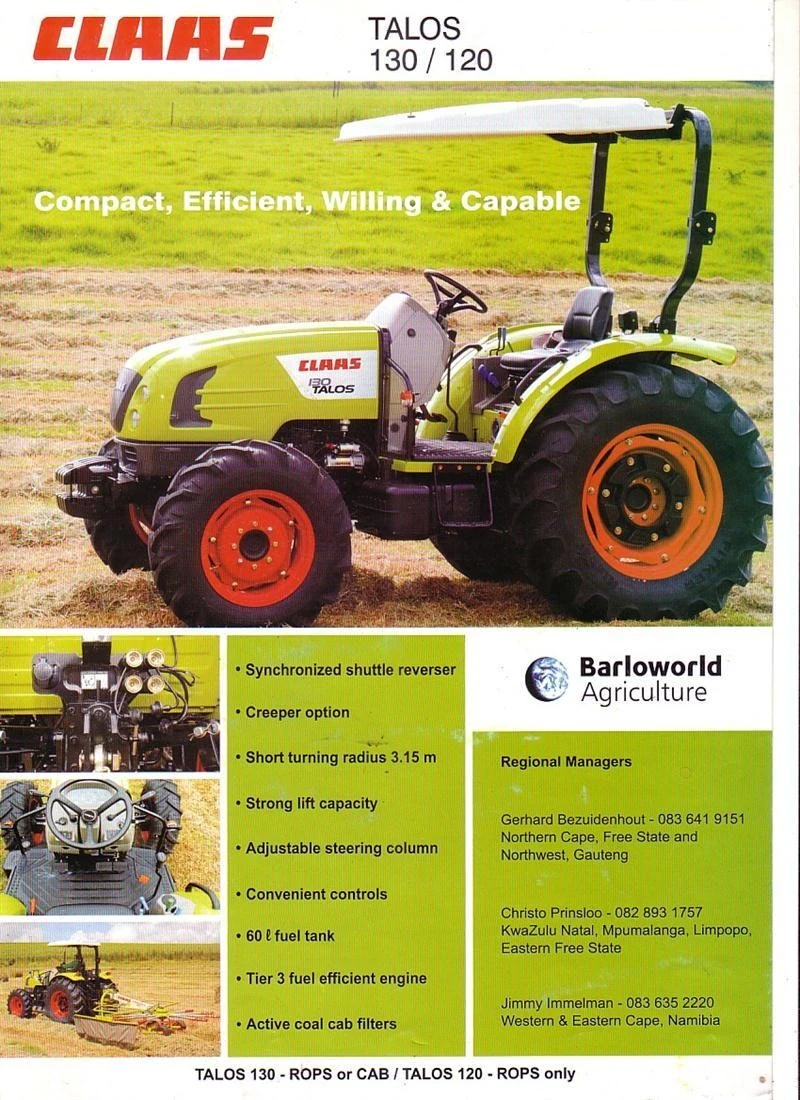

Claas Talos 130
Claas Talos 130 — Talos Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4542 to 4982 pounds
Hover a source tag to verify
Overview
DistributorClaasReference
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
U5030similar LS modelReference
Engine
LS 2.5L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine41.0 kWReference
LSReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier IIIReference
Power41.0 kWReference
Rated RPM2600Reference
Torque179.9 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and reverseReference
PTO & Hydraulics
Valves2 to 4Reference
Pump flow36.0 lpmReference
Rear lift1850 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase204 cmReference
Weight4542 to 4982 poundsReference
Length356 cmReference
Height (ROPS)258 cmReference
Height (cab)243 cmReference
ROPS2060 kgReference
Cab2259 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity5499 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
