Tractor · 2013Unverified

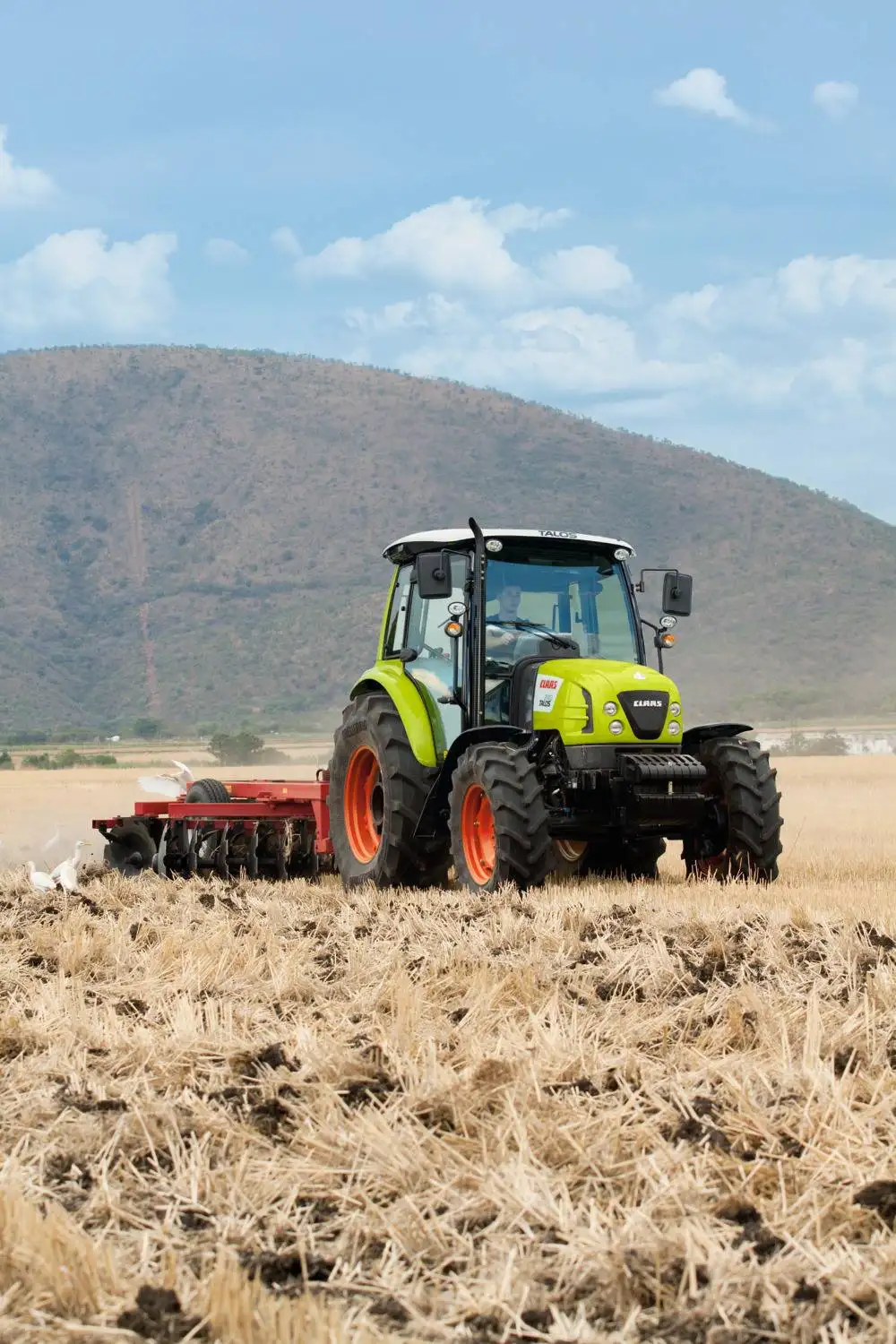

Claas Talos 220
Claas Talos 220 — Talos Series · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
6173 to 6570 pounds
Hover a source tag to verify
Overview
DistributorClaasReference
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
P7010similar LS modelReference
Engine
FPT 3.2L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine57.0 kWReference
FPTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke99 x 104 mmReference
EmissionsTier IIIReference
Power57.0 kWReference
Rated RPM2300Reference
Torque310.0 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchromeshReference
TypesynchromeshReference
Gears20 forward and reverseReference
PTO & Hydraulics
Valves3 to 6Reference
Pump flow45.0 lpmReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase219 cmReference
Weight6173 to 6570 poundsReference
Length399 cmReference
Height (ROPS)259 cmReference
Height (cab)257 cmReference
ROPS2800 kgReference
Cab2980 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity6000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
