Tractor · 2013Unverified

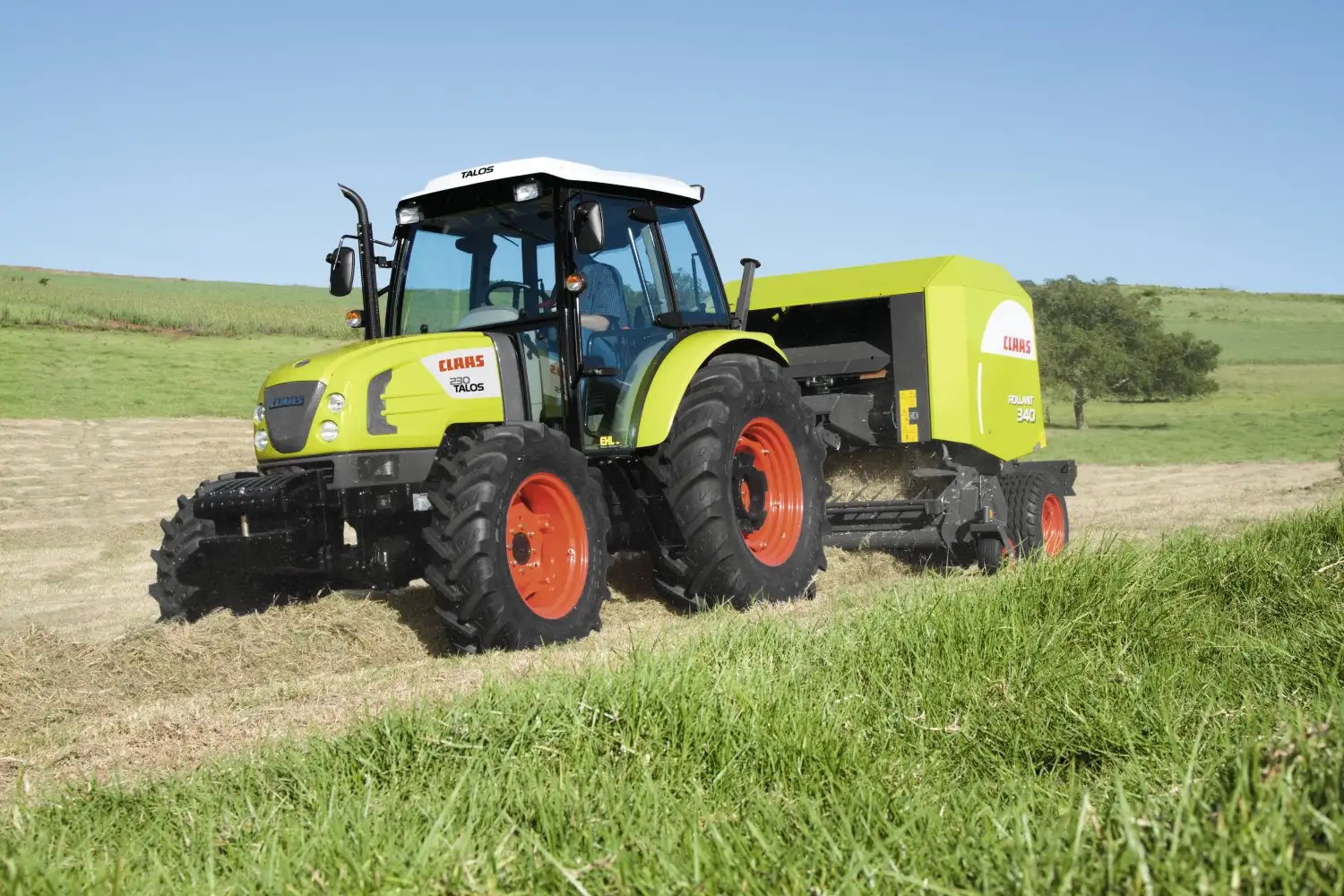

Claas Talos 230

Claas Talos 230 — Talos Series · 87 hp. Reference specifications; pending source verification.

The Claas Talos 230 is a tractor with a rated power of 87 hp, positioning it in the middle of its class in terms of power output. Manufactured between 2013 and 2023, this model is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives four-wheel drive through a 20-speed gearbox. The tractor's weight is stated to be in the range of 6195 to 6680 pounds. It is designed for use on jobs covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
87 hp
Max power
87.2 hp
Weight
6195 to 6680 pounds

Catalogue coverage

Variants represented
2
Richest spec table
65 rows
Recorded power
87 hp
Transmissions
20-speed synchromesh
Production years
2013-2023
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorClaasReference
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Two-post folding ROPS. Cab available with air-conditioning.Reference

Variants

P7030similar LS modelReference

Engine

FPT 3.2L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine65.0 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke99 x 104 mmReference
EmissionsTier IIIReference
Power65.0 kWReference
Rated RPM2300Reference
Torque350.1 NmReference
StarterelectricReference
Starter volts12Reference
Fuel TypedieselReference
No of Cylinders4 cylinderReference
Rated engine speed2,300 rpmReference
Emissions complianceTier IIIReference
Engine torque at rated speed117.1 kgReference
Bore and stroke3.90x4.09 inchesReference
Cooling systemliquid-cooledReference

Transmission

20-speed synchromeshReference
TypesynchromeshReference
Gears20 forward and reverseReference
Transmission TypeSync ShuttleReference
forward and reverse optionsSyncromesh; 20 F & RReference
Wheel Drive4WDReference

PTO & Hydraulics

Valves3 to 6Reference
Pump flow45.0 lpmReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference

Dimensions

Wheelbase219 cmReference
Weight6195 to 6680 poundsReference
Length399 cmReference
Height (ROPS)262 cmReference
Height (cab)260 cmReference
ROPS2810 kgReference
Cab3030 kgReference

Electrical

GroundnegativeReference
Battery volts12Reference

Capacities

Max capacity6000 kgReference
Capacity195.3 ciReference

General

Make & ModelLSReference
Rollover protective structureTwo-post folding ROPSReference

Power

Max Power87.2 hpReference

PTO

Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference

Hydraulics

Remote Valves3 to 6 valvesReference
Rear Hitch maximum lift capacity2,800 kgReference

Dimensions & weight

Height Over ROPS262.4 cmReference
Height Over Cab260.1 cmReference
Overall Length399.3 cmReference
Overall weight2,810 kgReference

Operator station

Cab AvailabilityAvailableReference

Steering & brakes

Steering typepowerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
