Tractor · 2013Unverified

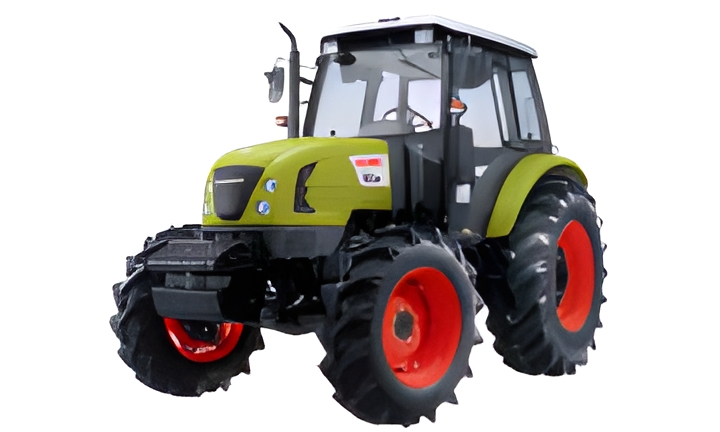

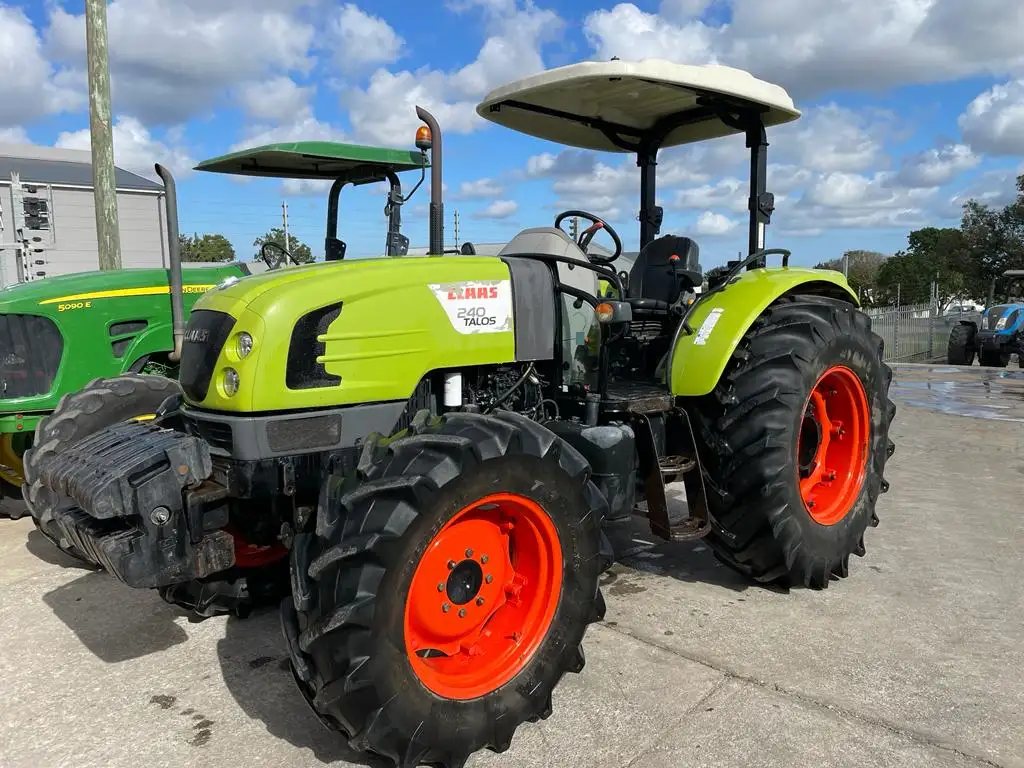

Claas Talos 240
Claas Talos 240 — Talos Series · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
3219 kg
Hover a source tag to verify
Overview
DistributorClaasReference
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Cab standard with air-conditioning.Reference
Variants
P7040similar LS modelReference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine70.0 kWReference
FPTReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power70.0 kWReference
Rated RPM2300Reference
Torque398.1 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchromeshReference
TypesynchromeshReference
Gears20 forward and reverseReference
PTO & Hydraulics
Valves3 to 6Reference
Pump flow45.0 lpmReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase228 cmReference
Weight3219 kgReference
Length407 cmReference
Height (cab)263 cmReference
Max weight6000 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
