Tractor · 1997Unverified

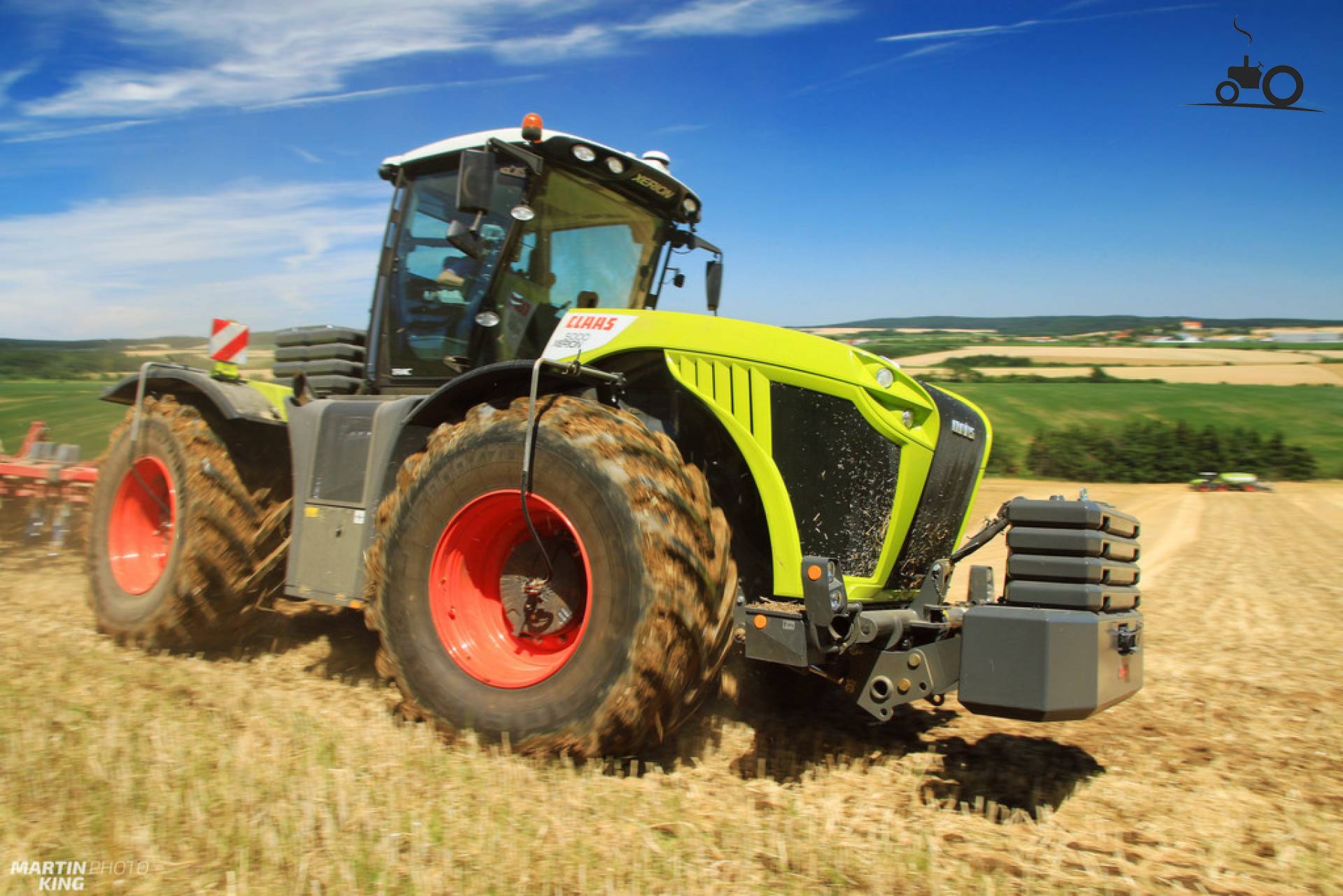

Claas Xerion 2500
Claas Xerion 2500 — Xerion Series · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
9502 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standard with A/CReference
Engine
Perkins 8.7L 6-cylReference
Fuel tank459.9 LReference
Engine186.4 kWReference
Perkins 1306Reference
intercooled turboReference
6-cylinderReference
Displacement8.7 LReference
Bore/Stroke117 x 135 mmReference
Power186.4 kWReference
Rated RPM2100Reference
PTO & Hydraulics
Total flow120.0 lpmReference
Rear lift4500 kgReference
Rear lift9598 kgReference
Rear PTO Type1000/1250Reference
Dimensions
Wheelbase290 cmReference
Weight9502 kgReference
Front tire650/75R32Reference
Rear tire650/75R32Reference
Ag front650/75R32Reference
Ag rear650/75R32Reference
Length629 cmReference
Height350 cmReference
Transmission
TransmissionhydrostaticReference
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
