Tractor · 2004Unverified

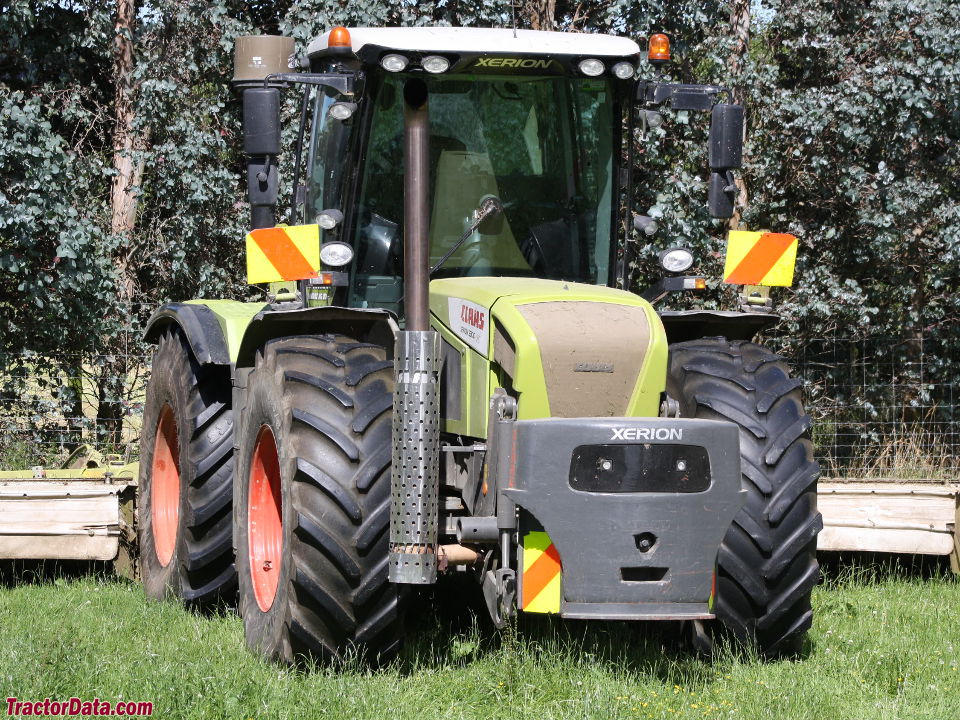

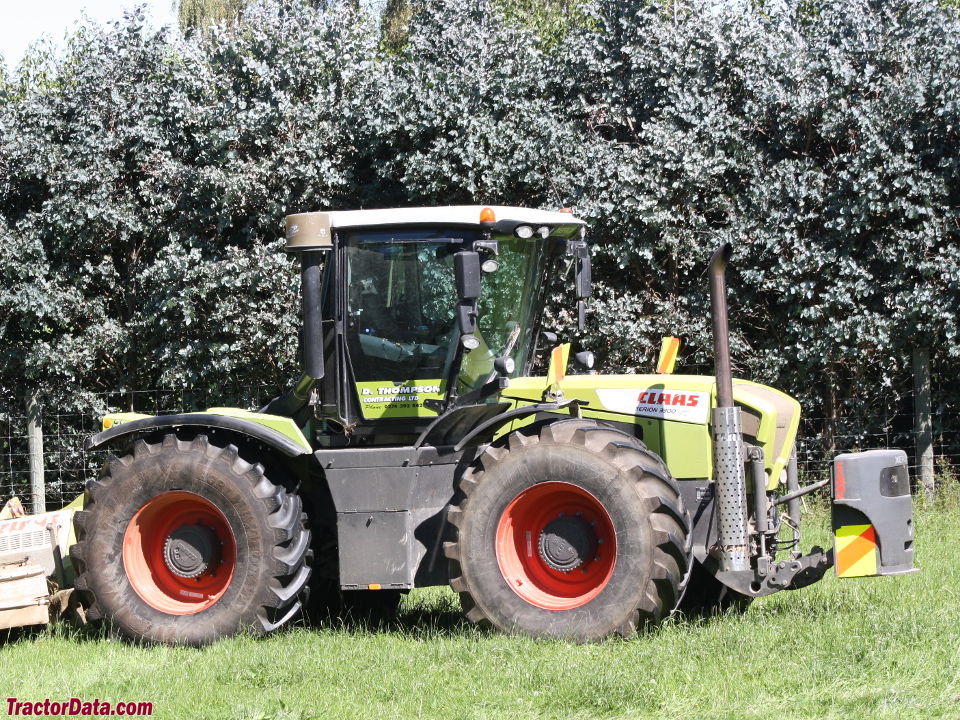

Claas Xerion 3300

Name: Claas Xerion 3300
Brand: Claas

Claas Xerion 3300 — Xerion Series · 335 hp. Reference specifications; pending source verification.

The Claas Xerion 3300 is a tractor model rated at approximately 335 horsepower, placing it at the more powerful end of its class. Manufactured from 2004 to 2012, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its listed operating weight is 13,000 kg, and it is designed for use on large-scale operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

335 hp

Max power

335 hp

Weight

13000 kg

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

335 hp

Recorded weight

13000 kg

Transmissions

ZF Eccom 3.5 CVT

Production years

2004-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Four-wheel Drive (4WD) tractorReference

Drive4x4 4WDReference

Differential lockelectro-hydraulicReference

Steeringfour-wheel steeringReference

Integrated hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

Traccenter cabinReference

Saddle Tracfront cabReference

Trac VCpivoting cabinReference

Engine

Caterpillar 8.8L 6-cyl dieselReference

Engine249.8 kWReference

CaterpillarReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.8 LReference

EmissionsTier 3aReference

Power249.8 kWReference

Rated RPM2100Reference

Torque1499.7 NmReference

Torque RPM1500Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier 3aReference

Engine torque at rated speed501.7 kgReference

Cooling systemliquid-cooledReference

Transmission

continuously variable transmissionReference

TransmissionZF Eccom 3.5 CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

Capacities

Fuel620.0 LReference

Fuel tank620.1 LReference

PTO & Hydraulics

Hydraulic system130.0 LReference

Typeload sensingReference

Capacity130.0 LReference

Pressure200.0 barReference

Pressure260.0 barReference

Valves5Reference

Pump flow110.1 lpmReference

Pump flow235.0 lpmReference

Total flow190.0 lpmReference

Rear TypeIIINReference

Rear lift11725 kgReference

Front HitchIIINReference

Front lift7139 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Dimensions

Wheelbase329 cmReference

Weight13000 kgReference

Front tire540/80R38Reference

Rear tire540/80R38Reference

Ag front540/80R38Reference

Ag front650/85R38Reference

Ag front650/75R38Reference

Ag front710/70R42Reference

Ag front800/65R32Reference

Ag front800/70R38Reference

Ag front900/60R32Reference

Ag front900/60R38Reference

Ag front900/50R42Reference

Ag rear540/80R38Reference

Ag rear650/85R38Reference

Ag rear650/75R38Reference

Ag rear710/70R42Reference

Ag rear800/65R32Reference

Ag rear800/70R38Reference

Ag rear900/60R32Reference

Ag rear900/60R38Reference

Ag rear900/50R42Reference

Length662 cmReference

Width248 cmReference

Height (cab)372 cmReference

Operating weight13000 kgReference

Max weight36002 kgReference

Ground clearance46 cmReference

General

Make & ModelClaasReference

Cruise controlAvailableReference

SCV controljoystickReference

Power

Max Power335 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakesintegrated hydraulic wet discReference

Steering typefour-wheel steeringReference

Hydraulics

Pump Rated Output (total)50.19 gpmReference

Hydraulics Typeload sensingReference

Maximum operating pressure3,771 psiReference

Remote Valves5 ValvesReference

Rear Hitch category (SAE designation)Category IIINReference

Rear Hitch maximum lift capacity11,725.4 kgReference

Front Hitch category (SAE designation)Category IIINReference

Dimensions & weight

Height Over Cab372.1 cmReference

Overall Length662.9 cmReference

Overall Width248.9 cmReference

Overall weight12,999.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
