Tractor · 2004Unverified

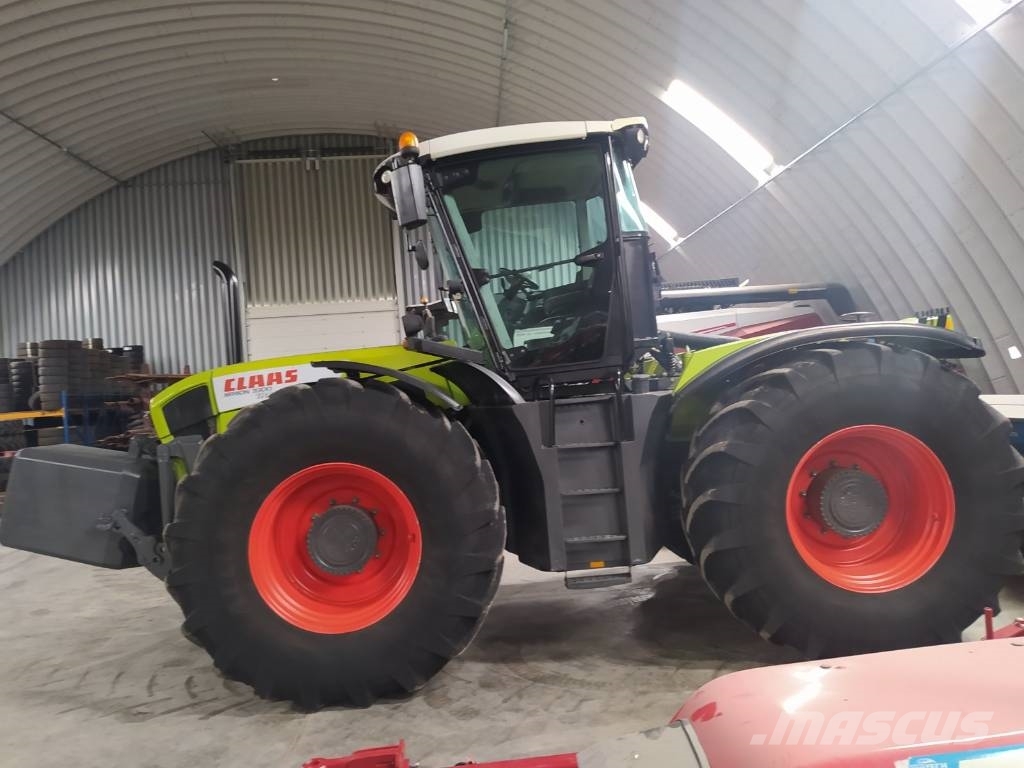

Claas Xerion 3300 Trac

Name: Claas Xerion 3300 Trac
Brand: Claas

Claas Xerion 3300 Trac — Xerion Series · 335 hp. Reference specifications; pending source verification.

The Claas Xerion 3300 Trac is a tractor model with a rated power output of 335 hp, placing it at the more powerful end of its class. It was first built in 2004. The tractor is equipped with a 6-cylinder turbocharged intercooled liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 10,201 kg, suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

335 hp

Weight

10201 kg

Catalogue coverage

Variants represented

Richest spec table

32 rows

Recorded power

335 hp

Recorded weight

10201 kg

Transmissions

hydrostatic

Production years

2004-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerClaasReference

Drive4x4 4WDReference

Steeringhydrostatic powerReference

Dry disc brakesReference

standard with A/CReference

Engine

Caterpillar 8.8L 6-cylReference

Fuel tank620.0 LReference

Engine249.8 kWReference

Caterpillar C9Reference

intercooled turbochargedReference

6-cylinderReference

liquid-cooledReference

Displacement8.8 LReference

Bore/Stroke112 x 149 mmReference

Power249.8 kWReference

Rated RPM1700Reference

Torque1450.2 NmReference

Torque RPM1500Reference

PTO & Hydraulics

Total flow149.9 lpmReference

Rear lift6999 kgReference

Rear lift11498 kgReference

Rear PTO Type1000Reference

Dimensions

Wheelbase329 cmReference

Weight10201 kgReference

Front tire800/65R32Reference

Rear tire800/65R32Reference

Ag front800/65R32Reference

Ag rear800/65R32Reference

Length662 cmReference

Height372 cmReference

Transmission

TransmissionhydrostaticReference

Gearsinfinite forward and reverseReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
