Tractor · 2020Unverified

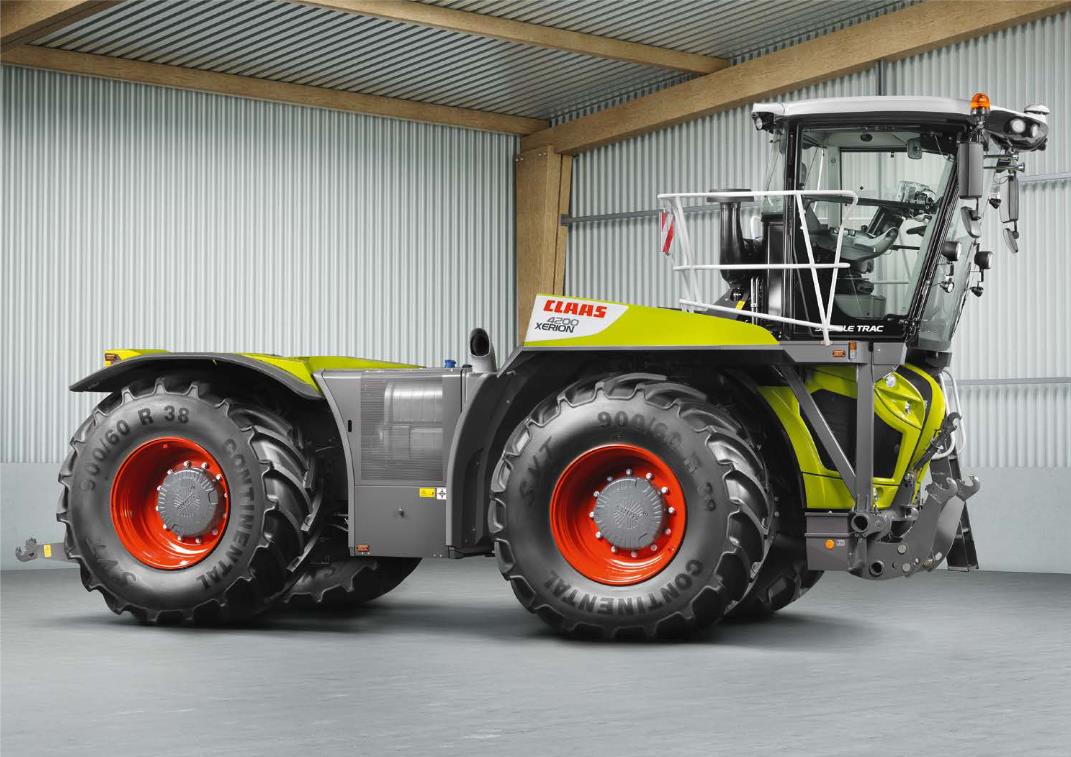

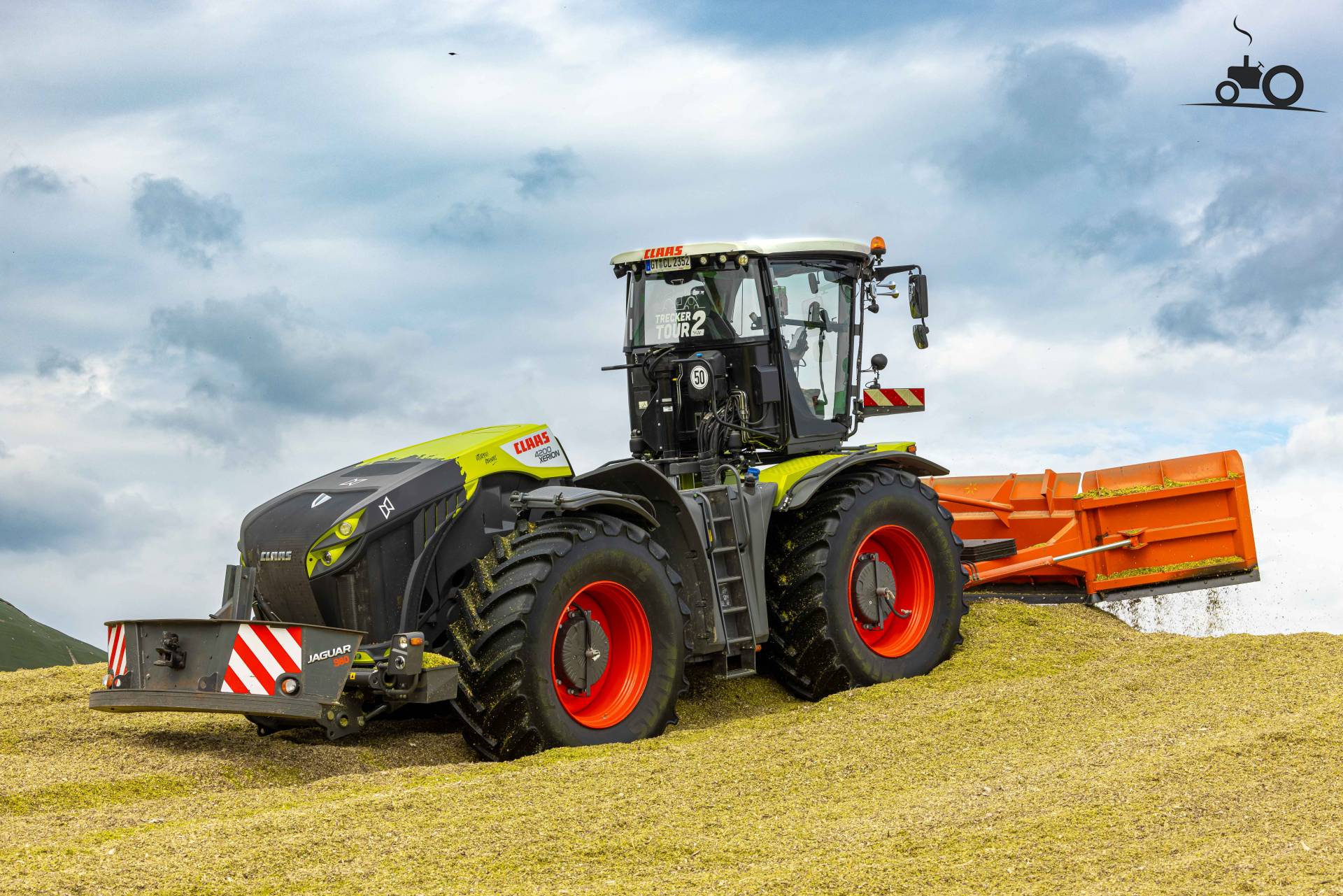

Claas Xerion 4200
Claas Xerion 4200 — Xerion Series · 458 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
458 hp
Weight
16000 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Differential lockelectro-hydraulic front and rearReference
Power four-wheel steeringReference
Cab standard with air-conditioning.Reference
Variants
TRACwheeledReference
TRAC TSquad-trackedReference
TRAC VCrotating cabReference
SADDLE TRACforward cabReference
Engine
Mercedes-Benz 10.7L 6-cyl dieselReference
Engine (gross)341.5 kWReference
Engine (max)344.5 kWReference
Mercedes-Benz OM 470 LAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.7 LReference
Bore/Stroke125 x 145 mmReference
EmissionsStage 5Reference
Emission controlSCR, DPF, and DOCReference
Rated Power (gross)341.5 kWReference
Maximum Power (gross)344.5 kWReference
Fuel systemcommon railReference
Rated RPM1900Reference
Idle RPM730-1920Reference
StarterelectricReference
Starter volts24Reference
Transmission
continuously-variable transmissionReference
TransmissionZF CMATICReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and infnite reverseReference
Capacities
Fuel740.0 LReference
Exhaust fluid (DEF)88.2 LReference
PTO & Hydraulics
Hydraulic system120.0 LReference
Typeload sensingReference
Capacity120.0 LReference
Pressure200.0 barReference
Rear valvesup to 7Reference
Front valvesup to 3Reference
Pump flow194.9 lpmReference
Pump flow249.8 lpmReference
SCV flow104.8 lpmReference
Rear TypeIVNReference
Controlposition and draft controlReference
Rear lift10197 kgReference
Front HitchIIINReference
Front lift8099 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type1000 (2.25)Reference
Dimensions
Wheelbase359 cmReference
Weight16000 kgReference
Front tire650/85R38Reference
Rear tire650/85R38Reference
Ag front650/85R38Reference
Ag front710/70R42Reference
Ag front710/75R42Reference
Ag front900/60R42Reference
Ag rear650/85R38Reference
Ag rear710/70R42Reference
Ag rear710/75R42Reference
Ag rear900/60R42Reference
Length716 cmReference
Height (cab)394 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
