Tractor · 2009Unverified

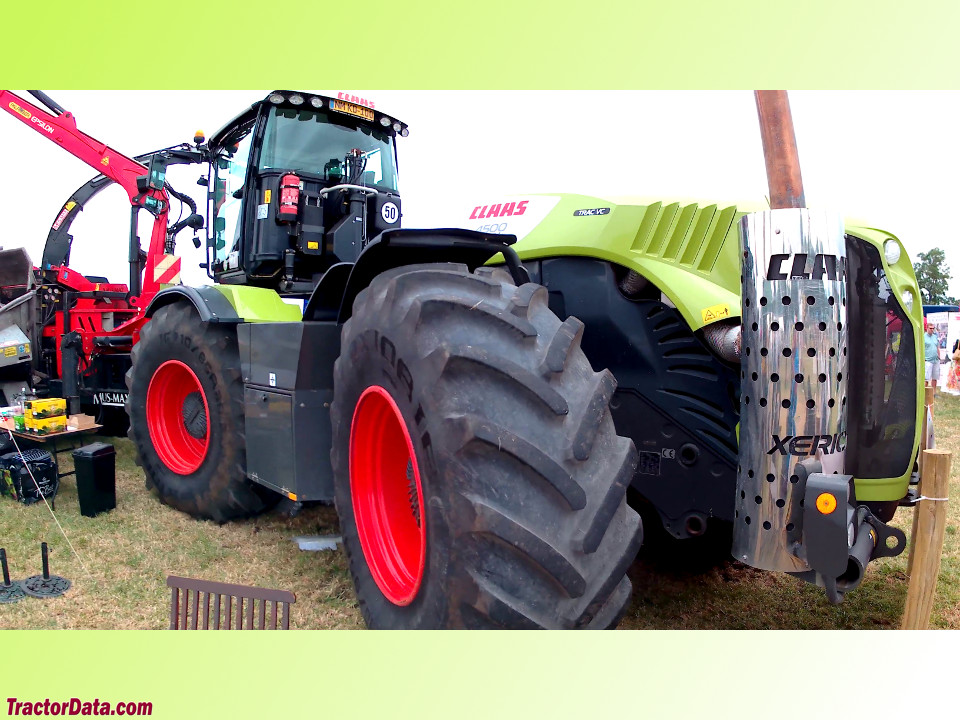

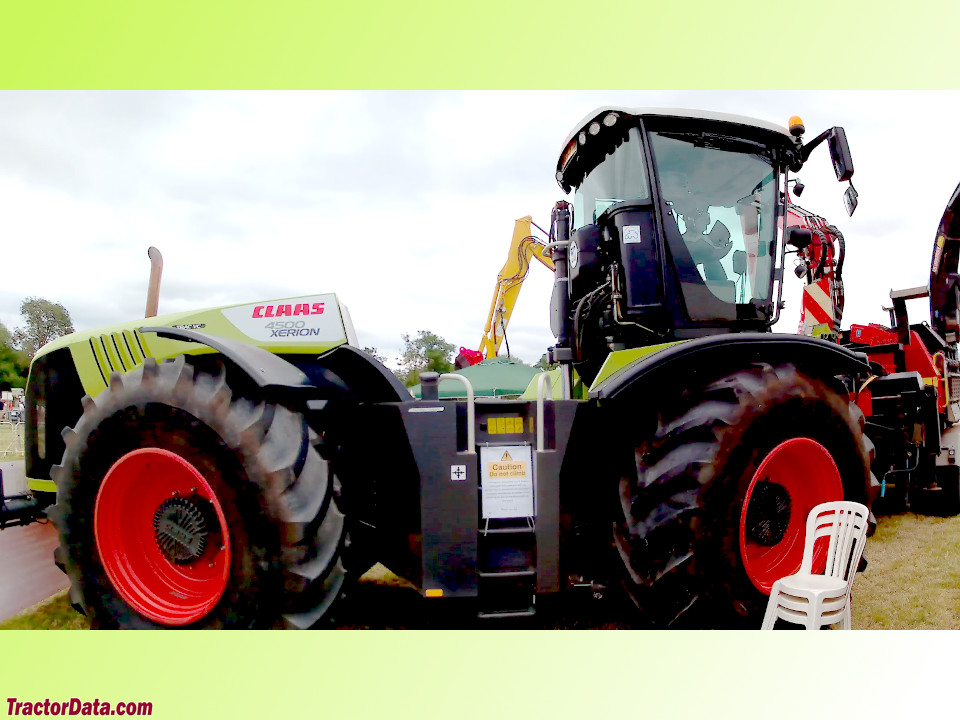

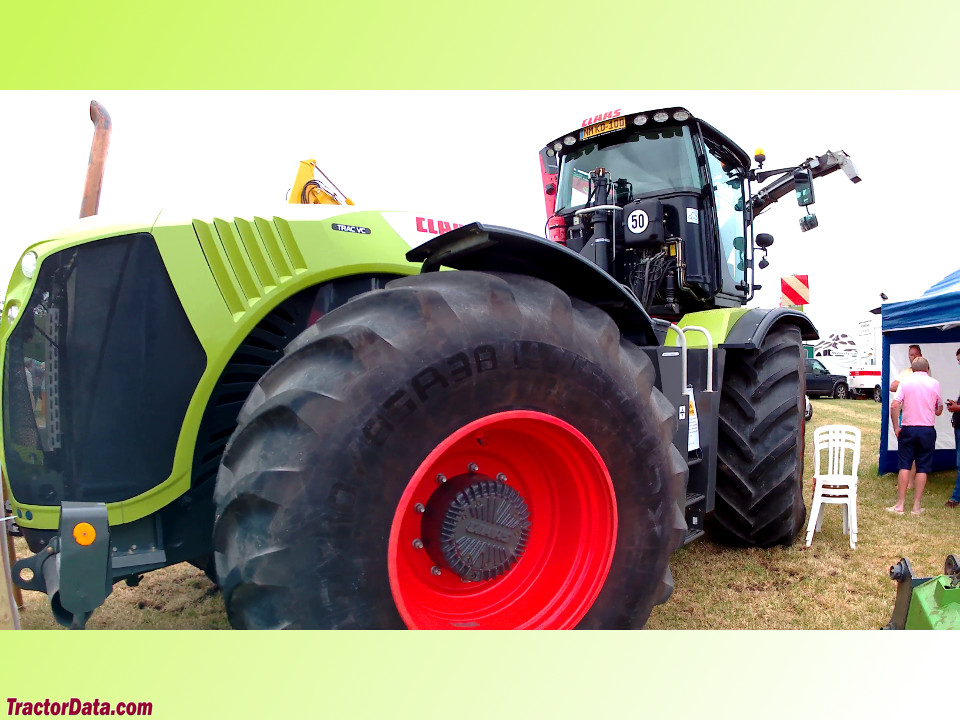

Claas Xerion 4500
Claas Xerion 4500 — Model year 2009-20132014-20192020-2025 · 449 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
449 hp
Weight
13399 kg
Hover a source tag to verify
Overview
ManufacturerClaasReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringfour-wheel steeringReference
Hydraulic wet discs brakesReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 12.5L dieselReference
Engine (gross)334.8 kWReference
Engine (max)360.2 kWReference
Caterpillar C13Reference
dieselReference
liquid-cooledReference
Displacement12.5 LReference
Rated Power (gross)334.8 kWReference
Maximum Power (gross)360.2 kWReference
Rated RPM2000Reference
Idle RPM800-2080Reference
Torque2203.5 NmReference
Torque RPM1400Reference
Starter volts24Reference
Transmission
continuously variable transmissionReference
TransmissionZF Eccom 4.5 CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
Capacities
Fuel1000.0 LReference
PTO & Hydraulics
Hydraulic system120.0 LReference
Capacity120.0 LReference
Pressure200.0 barReference
Rear valves6Reference
Front valves2Reference
SCV flow105.0 lpmReference
Total flow205.0 lpmReference
Rear Type4NReference
Controlposition and draft controlReference
Rear lift13866 kgReference
Front Hitch3NReference
Front lift8527 kgReference
Rear PTO Type1000 (optional)Reference
Dimensions
Wheelbase350 cmReference
Weight13399 kgReference
Front tire800/70Reference
Rear tire800/70Reference
Ag front800/70 R38Reference
Ag front710/75 R42Reference
Ag front900/60 R42Reference
Ag rear800/70 R38Reference
Ag rear710/75 R42Reference
Ag rear900/60 R42Reference
Length749 cmReference
Min Width248 cmReference
Max Width329 cmReference
Max Height364 cmReference
Max Height379 cmReference
Shipping weight13399 kgReference
Min Ground clearance37 cmReference
Max Ground clearance52 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
