Tractor · 1937Unverified

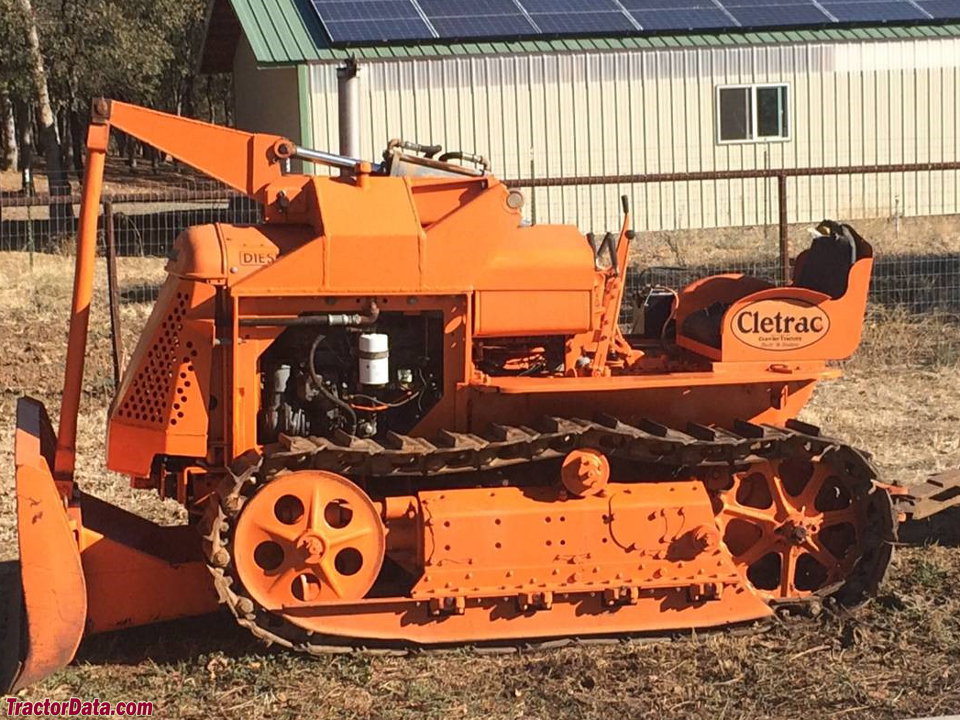

Cletrac AD
Cletrac AD — Agricultural Crawler tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
3606 kg
Hover a source tag to verify
Overview
ManufacturerCletracReference
Agricultural Crawler tractorReference
Built in Cleveland, Ohio, USAReference
DrivecrawlerReference
Open operator station.Reference
Variants
ADdieselReference
AGgasolineReference
ADHhillsideReference
Engine
3.7L 4-cyl dieselReference
Fuel tank68.1 LReference
Drawbar (claimed)22.7 kWReference
Belt (claimed)28.3 kWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Bore/Stroke102 x 114 mmReference
Air cleaneroil bathReference
Rated RPM1530Reference
Starter typeelectricReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight3606 kgReference
12-inch tracksReference
Length278 cmReference
Height (steering wheel)137 cmReference
Ground clearance34 cmReference
AD Gauge106 cmReference
ADH Gauge127 cmReference
AD Serial Numbers
19371Z00Reference
19381Z52Reference
19395Z36Reference
19409Z32Reference
19411Z106Reference
19421Z690Reference
1943-----Reference
19441Z836Reference
19452Z172Reference
19462Z672Reference
19473Z700Reference
19484Z912Reference
19496Z214Reference
19507Z390Reference
19517Z422Reference
19528Z135Reference
FAQ: How to read a serial number table.Reference
Cletrac AD Tracks
Width30 cmReference
Width35 cmReference
Width40 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
